LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

Section JD -- Brakes -- Rear

Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (125K)

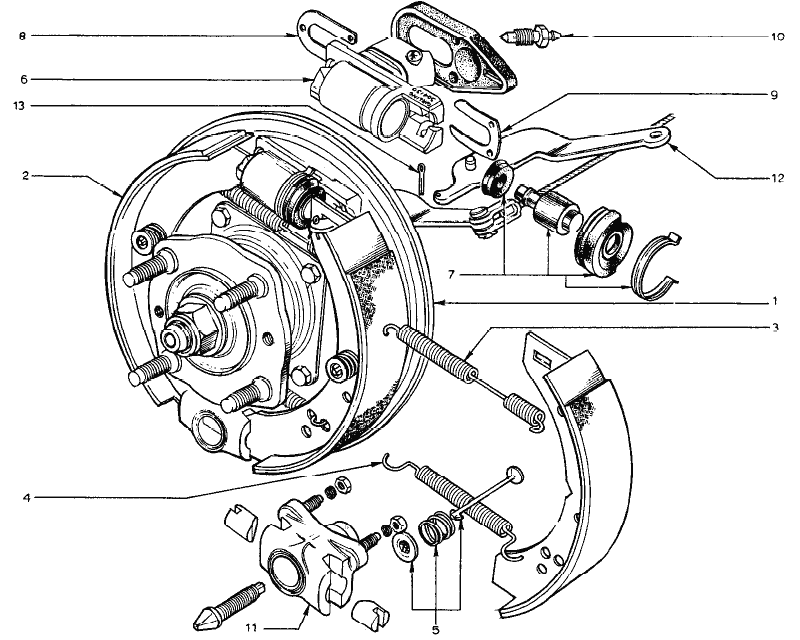

Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046J60211 1 1 1       Rear Brake Assembly LH
1 046J60221 1 1 1       Rear Brake Assembly R/H
1 046J60001 1 1 1       Backplate LH
1 046J60011 1 1 1       Backplate RH
2 046J60024 4 4 4       Brake Shoe  - More Info -
3 046J60032 2 2 2       Return Spring - Upper
4 046J60042 2 2 2       Return Spring - Lower This number also used for "Bleed Screw"
5 046J60464 4 4 4       Steady Rest
6 046J60052 2 2 2       Wheel Cylinder (Brake Cylinder)  - More Info -
7 046J6006          Repair Kit - Sheel Cylinder (As Required)
8 046J60092 2 2 2       Retaining Plate
9 046J60102 2 2 2       Locking Plate
10 046J6004?2 2 2 2       Bleed Screw This number also used for "Return Spring - Lower"
11 046J60112 2 2 2       Adjuster Assembly - Brake Shoe
11 XUFS05168 8 8 8       Screw - Brake Assembly to Radius Arm
11 L05W00008 8 8 8       Washer - Brake Assembly to Radius Arm 7/64" thick split washer, 19/32" OD, 5/16" ID
12 046J60072 2 2 2       Lever - Handbrake
13 W00862 2 2 2       Split Pin
