Notes Bulletin Reference | |||||||||||||

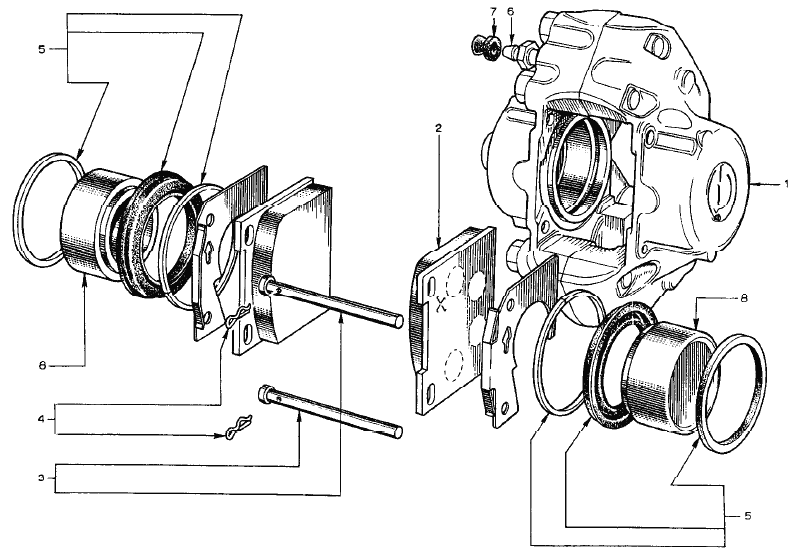

1 | 036J6006 | Replaced by 036J6071 | |||||||||||
1 | 036J6071 | 1 | 1 | 1 | 1 | Brake Caliper - L/H (Less Pads) | - More Info - | ||||||
1 | 036J6007 | Replaced by 036J6072 | |||||||||||
1 | 036J6072 | 1 | 1 | 1 | 1 | Brake Caliper - R/H (Less Pads) | - More Info - | ||||||
2 | 046J6038 | 1 | 1 | 1 | 1 | Brake Pad Set | - More Info - | ||||||
3 | 036J6011 | 4 | 4 | 4 | 4 | Pin - Pad Retaining | |||||||
4 | 036J6012 | 4 | 4 | 4 | 4 | Clip - Pad Retaining | |||||||
5 | 036J6003 | Repair Kit - Front Caliper (As Required) | |||||||||||
6 | 036J6004 | 2 | 2 | 2 | 2 | Bleed Screw | |||||||
7 | 036J6005 | 2 | 2 | 2 | 2 | Dust Cover - Bleed Screw | |||||||
8 | 026J6041 | 4 | 4 | 4 | 4 | Piston |
