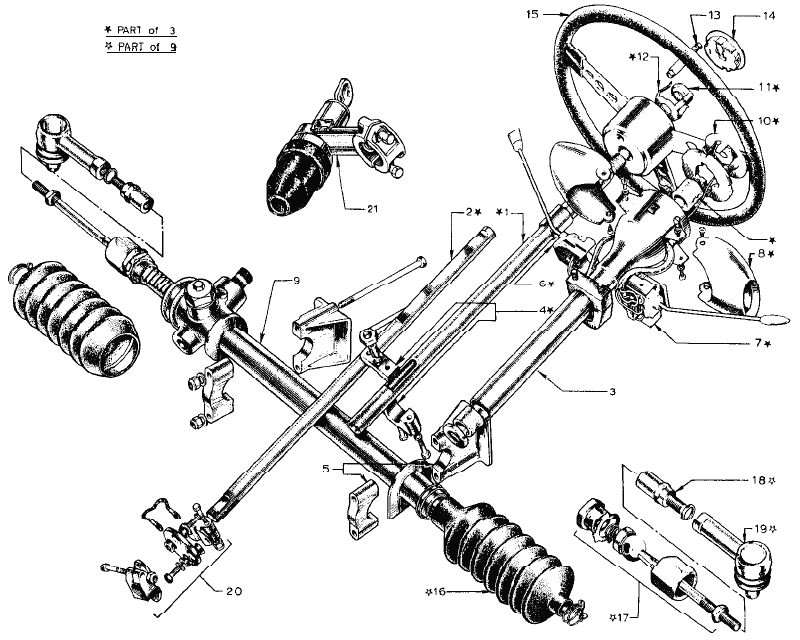

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection HA -- Steering -- Column and Steering UnitLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (265K) Note: For more detail, refer to Section H of the S1 Parts Manual. |
Notes Bulletin Reference | |||||||||||||
1 | 046H6004 | 1 | 1 | 1 | 1 | Inner Column - Upper | |||||||
2 | 046H6005 | 1 | 1 | 1 | 1 | Inner Column - Lower | |||||||
3 | A046H0705 | 1 | 1 | 1 | 1 | Column Assembly (without lock) | |||||||
3 | 054H0723 | 1 | 1 | 1 | 1 | Column Assembly (with lock) | |||||||
3 | 054H0730 | 1 | 1 | 1 | 1 | Column Assembly (with lock) | |||||||
3 | 054H0731 | 1 | 1 | 1 | 1 | Column Assembly (with lock) | |||||||
4 | 036H6038 | 1 | 1 | 1 | 1 | Impact Clamp | |||||||
5 | 046H0015 | 2 | 2 | 2 | 2 | Mounting Bracket - Steering Rack | |||||||
5 | XUFB0456 | 4 | 4 | 4 | 4 | Bolt - Mounting Bracket | 3 1/2" long, 7/8" thread length, 1/4" x 28 TPI, 7/16" head | ||||||
5 | YUFN040F | 4 | 4 | 4 | 4 | Nut - Mounting Bracket | |||||||
5 | A04W0904 | 4 | 4 | 4 | 4 | Washer - Mounting Bracket | |||||||
6 | 036M6000 | 1 | 1 | 1 | 1 | Switch - Indicators | - More Info - | ||||||
7 | 046M6183 | 1 | 1 | 1 | 1 | Switch - Lamps selection | |||||||
8 | 036H6033 | 1 | 1 | 1 | 1 | Escutcheon - Switches | |||||||
8 | 046H0703 | 1 | 1 | 1 | 1 | + | Steering Rack | - More Info - | |||||
9 | 046H0704 | 1 | 1 | 1 | 1 | + | Steering Rack | - More Info - | |||||
10 | 036H6009 | 1 | 1 | 1 | 1 | Contact Plate - Horn | |||||||
11 | 036H6035 | 1 | 1 | 1 | 1 | Nut - Steering Wheel to column | |||||||
12 | 036H6008 | 1 | 1 | 1 | 1 | Clip - Horn push retaining | |||||||
13 | 036H6005 | 1 | 1 | 1 | 1 | Brush - Horn contact | |||||||
14 | 036H6004 | 1 | 1 | 1 | 1 | Horn push or 036M6090 | |||||||
14 | 036M6090 | 1 | 1 | 1 | 1 | Horn push or 036H6004 | |||||||
14 | 028H0030 | 1 | 1 | 1 | 1 | Horn Button | |||||||
15 | 036H6006 | 1 | 1 | 1 | 1 | Steering Wheel | |||||||
16 | 036H6027 | 2 | 2 | 2 | 2 | Bellows - Steering Rack | - More Info - | ||||||
17 | 046H6006 | 2 | 2 | 2 | 2 | Tie-rod assembly | |||||||
17 | 046H6002 | 2 | 2 | 2 | 2 | Tie-rod adaptor | Replaced by 054H0056 and L08W0000 From Chassis No. 1904 | ||||||
18 | 054H0056 | 2 | 2 | 2 | 2 | Tie-rod adaptor | |||||||
18 | L08W0000 | 2 | 2 | 2 | 2 | Washer - Tie-rod adaptor | |||||||
19 | 036H6007 | 2 | 2 | 2 | 2 | Ball Joint - Track rod (Tie Rod End) | - More Info - | ||||||
20 | 036H6002 | 1 | 1 | 1 | 1 | Joint - Flexible or 050H6012 | |||||||
20 | 050H6012 | 1 | 1 | 1 | 1 | Joint - Flexible or 036H6002 | |||||||
21 | A036H6065 | 1 | Lock - Steering (without buzzer) | ||||||||||
21 | A036H6064 | 1 | Lock - Steering |
