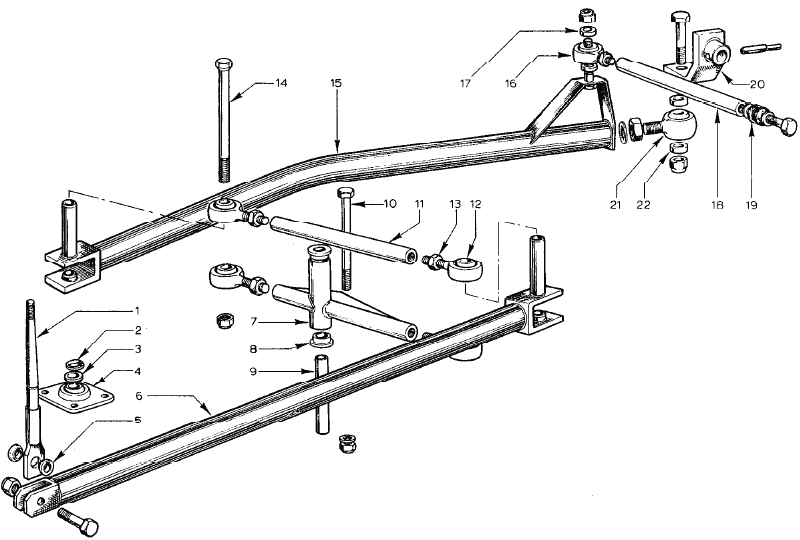

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection FH -- Transmission -- Shift Linkage (Late)Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (205K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 16 | A065F6000 | 1 | 1 | Ball Joint | |||||||||
| 17 | 054F0145 | 2 | 2 | Spacer | |||||||||
| 17 | YUFN050F | 1 | 1 | Locknut | |||||||||
| 18 | A065F0162 | 1 | 1 | Location Link | |||||||||
| 18 | A05W1007 | 2 | 2 | Washer - Location Link to gearbox | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 19 | 054F6003 | 2 | 2 | Gromet - Location Link to gearbox | |||||||||
| 19 | XUFB0520 | 1 | 1 | Bolt - Location Link to gearbox | 1 7/32" shaft, 15/16 thread length, 5/16" x 24 TPI threads | ||||||||
| 20 | A065F0163 | 1 | 1 | Actuator - Gearbox | |||||||||
| 20 | 046F6151 | 1 | 1 | Tension Pin | |||||||||
| 21 | A065F6001 | 1 | 1 | Ball joint | |||||||||
| 1 | A065F0155 | 1 | 1 | Gear Lever | |||||||||
| 2 | 046F6156 | 1 | 1 | Circlip | |||||||||
| 3 | 065F0156 | 1 | 1 | Spacer | |||||||||
| 4 | 065F0169 | 1 | 1 | Bearing Plate | |||||||||
| 4 | XUFS0310 | 4 | 4 | Setscrew - Bearing Plate to Tunnel | |||||||||
| 4 | A03W0605 | 4 | 4 | Washer - Bearing Plate to Tunnel | |||||||||
| 4 | LUFN100F | 4 | 4 | Locknut - Bearing Plate to Tunnel | |||||||||
| 5 | 046F6153 | 2 | 2 | Bush - Gear Lever to Front Link | |||||||||
| 5 | XUFB0413 | 1 | 1 | Bolt - Gear Lever to Front Link | |||||||||
| 5 | YUFN040F | 1 | 1 | Locknut - Gear Lever to Front Link | |||||||||
| 6 | A065F0158 | 1 | 1 | Longitudinal Link - Front | |||||||||
| 7 | B054F0127 | 1 | 1 | Relay Lever | |||||||||
| 8 | 046F6163 | 2 | 2 | 2 | 2 | Nylon Bush | |||||||
| 9 | 054F0151 | 1 | 1 | 1 | 1 | Swivel Tube | |||||||
| 10 | XUFB0456 | 1 | 1 | Bolt - Relay Lever to Mounting Bracket | 3 1/2" long, 7/8" thread length, 1/4" x 28 TPI, 7/16" head | ||||||||
| 10 | A04S0803 | 1 | 1 | 1 | 1 | Washer | |||||||
| 10 | YUFN040F | 1 | 1 | 1 | 1 | Locknut | |||||||
| 11 | A065F0160 | 1 | 1 | Link Tube | |||||||||
| 12 | 046F6161 | 4 | 4 | Ball Joint | |||||||||
| 13 | AUFN050F | 4 | 4 | Nut | |||||||||
| 14 | A065F0164 | 2 | 2 | Bolt - Taper Head | |||||||||
| 14 | YUFN050F | 2 | 2 | Locknut | |||||||||
| 15 | A0650725 | 1 | 1 | Longitudinal Link - Rear | |||||||||
| 22 | A065F0170 | 2 | 2 | Spacer - Ball Joint to Actuator | |||||||||
| 22 | YUFN060F | 1 | 1 | Locknut - Ball Joint to Actuator |
