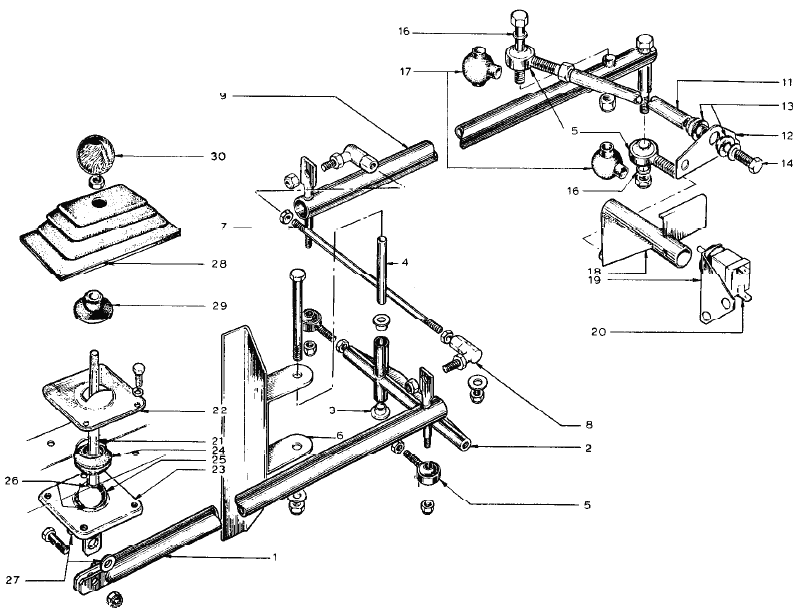

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection FG -- Transmission -- Shift Linkage (Early)Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (340K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046F0123 | 1 | 1 | Longitudinal Link - Front | |||||||||
| 1 | 054F0123 | 1 | 1 | Longitudinal Link - Front | |||||||||
| 2 | 046F0127 | 1 | 1 | 1 | 1 | Relay Lever | |||||||
| 3 | 046F6163 | 2 | 2 | 2 | 2 | Bush - Relay Lever | |||||||
| 4 | 0540151 (W027) ? | 1 | 1 | 1 | 1 | Swivel Tube - Relay Lever | |||||||
| 5 | 046F6161 | Replaced by A046F6161 | Up to Chassis No. 2339 SB - Service III 1969/35 | ||||||||||
| 5 | A046F6161 | 4 | 4 | 4 | 4 | Ball Joint | From Chassis No. 2340 | ||||||
| 5 | AUFN050H | 2 | 2 | 2 | 2 | Nut - Ball Joint to Relay lever | |||||||
| 5 | YUFN040F | 2 | 2 | 2 | 2 | Nut - Ball Joint to Link | |||||||
| 5 | A04W0803 | 2 | 2 | 2 | 2 | Washer - Ball Joint to Link | |||||||
| 6 | 046F0128 | 1 | 1 | Bracket - Relay Lever Mounting | |||||||||
| 6 | 054F0123 | 1 | 1 | Bracket - Relay Lever Mounting | |||||||||
| 6 | XUFB0456 | 1 | 1 | Bolt - Relay Lever to Mounting Bracket | 3 1/2" long, 7/8" thread length, 1/4" x 28 TPI, 7/16" head | ||||||||
| 6 | A04W0803 | 1 | 1 | Washer - Relay Lever to Mounting Bracket | |||||||||
| 6 | YUFN040F | 1 | 1 | Nut - Relay Lever to Mounting Bracket | |||||||||
| 6 | W0050 | 2 | 2 | Bush - Bracket to Engine | |||||||||
| 6 | XMMB0750 | 2 | 2 | Bolt - Bracket to Engine | |||||||||
| 6 | A04W0905 | 2 | 2 | Washer - Bracket to Engine | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| 7 | 046F0126 | 1 | 1 | Link - Transverse | |||||||||
| 7 | A046F0126 | 1 | 1 | Link - Transverse | |||||||||
| 8 | 046F6160 | Replaced by A046F6160 | Up to Chassis No. 0344 | ||||||||||
| 8 | A046F6160 | 2 | 2 | 2 | 2 | Ball joint - Transverse Link | From Chassis No. 0345 | ||||||
| 8 | AUFN040H | 2 | 2 | 2 | 2 | Nut - Ball Joints to Transverse Link | |||||||
| 8 | YUFN050F | 2 | 2 | 2 | 2 | Nut - Ball Joints to Longitudinal Links | |||||||
| 9 | 046F0124 | 1 | 1 | Longitudinal Link - Rear | |||||||||
| 9 | 054F0124 | 1 | 1 | Longitudinal Link - Rear | |||||||||
| 9 | 046F6159 | 1 | 1 | Bush - Longitudinal Link | |||||||||
| 11 | 054F0144 | 1 | 1 | Location Link | |||||||||
| 12 | 054F0146 | 1 | 1 | Reaction Plate | |||||||||
| 13 | 054F6003 | 1 | 1 | Gromet - Reaction Plate to Location Link | |||||||||
| 13 | A05W1007 | 1 | 1 | Washer - Reaction Plate to Location Link | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 14 | XUFB0520 | 1 | 1 | Bolt - Reaction Plate to Location Link | 1 7/32" shaft, 15/16 thread length, 5/16" x 24 TPI threads | ||||||||
| 16 | 054F0145 | 2 | 2 | Spacer | |||||||||
| 17 | 054F600D | 2 | 2 | Dust Seal | |||||||||
| 17 | XUFB0536 ? | 1 | 1 | Bolt - Location Link to Longitudinal Link | 1/2" head, 2 7/32" long,15/16" threads, 9/32" OD shaft | ||||||||
| 17 | A05W1007 | 1 | 1 | Washer - Location Link to Longitudinal Link | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 17 | YUFN050F | 1 | 1 | Nut - Location Link to Longitudinal Link | |||||||||
| 17 | LUFN050H | 1 | 1 | Nut - Ball Joint to Location Link | |||||||||
| 17 | 054F6155 | 1 | 1 | Actuator with brush | |||||||||
| 18 | 054F0121 | 1 | 1 | Actuator | |||||||||
| 18 | LUFN050H | 1 | 1 | Nut - Ball Joint to Actuator | |||||||||
| 18 | XUFB0548 | 1 | 1 | Bolt - Rear Longitudinal Link to Actuator | |||||||||
| 18 | A05W1007 | 1 | 1 | Washer - Rear Longitudinal Link to Actuator | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 18 | XUFN050F | 1 | 1 | Nut - Rear Longitudinal Link to Actuator | |||||||||
| 18 | XUFB0524 | 1 | 1 | Bolt - Reaction Plate to Gearbox | |||||||||
| 18 | XUFB0528 | 1 | 1 | Bolt - Reaction Plate to Gearbox | |||||||||
| 18 | A05W1007 | 1 | 1 | Washer - Reaction Plate to Gearbox | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 18 | YUFN050F | 2 | 2 | Nut - Reaction Plate to Gearbox | |||||||||
| 18 | XMMB0630 | 1 | 1 | Bolt 6 x 30 mm. - Actuator to Selector Shaft | |||||||||
| 18 | LMMN060F | 1 | 1 | Nut - Actuator to Selector Shaft | |||||||||
| 18 | 04W0803 | 1 | 1 | Washer - Actuator to Selector Shaft | |||||||||
| 19 | 054F0141 | 1 | 1 | Mounting Bracket - Reverse Lamp Switch | |||||||||
| 20 | 054M6000 | 1 | 1 | Switch - Reverse Lamps | |||||||||
| 20 | A065M6000 | 1 | 1 | Switch - Reverse Lamps | |||||||||
| 21 | 046F0001 | 1 | 1 | 1 | 1 | Gear Lever | |||||||
| 22 | 046F0131 | 1 | 1 | 1 | 1 | Mounting Plate Upper | |||||||
| 23 | 046F0132 | 1 | 1 | 1 | 1 | Mounting Plate Lower | |||||||
| 23 | 046F0139 | 2 | 2 | 2 | 2 | Spacer | |||||||
| 24 | 046F6148 | 1 | 1 | 1 | 1 | Ball Joint - Outer | |||||||
| 25 | 046F6147 | Replaced by 046F6113 | |||||||||||
| 25 | 046F6113 | 1 | 1 | 1 | 1 | Ball Joint - Inner | |||||||
| 26 | 054F6004 | 2 | 2 | 2 | 2 | Circlip - Ball to Lever | |||||||
| 27 | 046F6153 | 2 | 2 | 2 | 2 | Bush - Gear Lever to Front Longitudinal Link | |||||||
| 27 | XUFB0413 | 1 | 1 | 1 | 1 | Bolt - Gear Lever to Front Longitudinal Link | |||||||
| 27 | YUFN040F | 1 | 1 | 1 | 1 | Nut - Gear Lever to Front Longitudinal Link | |||||||
| 27 | XUFS0310 | 4 | 4 | 4 | 4 | Screw - Mounting Plate Fixing | |||||||
| 27 | S03W0000 | 4 | 4 | 4 | 4 | Washer - Mounting Plate Fixing | |||||||
| 28 | 036F6000 | 1 | 1 | Gromet - Gear Lever | |||||||||
| 28 | 050F6000 | 1 | 1 | Gromet - Gear Lever | |||||||||
| 29 | A036B6186 | 1 | 1 | Gromet | |||||||||
| 30 | 046F6178 | 1 | 1 | Knob - Gear Lever | |||||||||
| 30 | 050F0002 | 1 | Knob - Gear Lever | ||||||||||
| 30 | 054F0002 | 1 | Knob - Gear Lever | ||||||||||
| 30 | LUFN050H | 1 | 1 | Lock Nut | |||||||||
| 30 | 046B1038 | 1 | 1 | Mounting Plate - Gear Lever Gromet |
