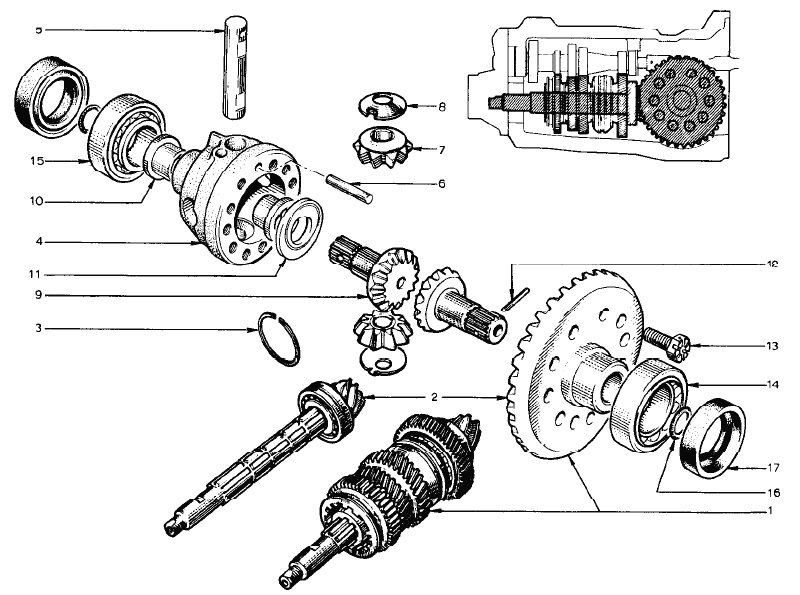

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection FF -- Transmission -- Crown Wheel and PinionLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (125K) |
Notes Bulletin Reference | |||||||||||||
1 | 046F6143 | 1 | 1 | 1 | 1 | Crown Wheel & Pinion with Gear Set (Type 336-08) | |||||||
1 | A046F6143 | 1 | 1 | 1 | 1 | Crown Wheel & Pinion with Gear Set (Type 336-46) | |||||||
1 | B046F6143 | 1 | 1 | 1 | 1 | Crown Wheel & Pinion with Gear Set (Type 336-56) | |||||||
2 | 046F6131 | 1 | 1 | 1 | 1 | Crown Wheel 7 Pinion - Yellow | |||||||
2 | 046F6132 | 1 | 1 | 1 | 1 | Crown Wheel 7 Pinion - Blue | |||||||
3 | 046F6129 | 1 | 1 | 1 | 1 | Circlip | |||||||
4 | 046F6127 | Replaced by A046F6192 with 1 of A046F6193 Differential Pin & 1 of A046F6124 Tension Pin | Up to Engine No. ? | ||||||||||
4 | A046F6192 | 1 | 1 | 1 | 1 | Carrier - Crown Wheel | From Engine No. ? | ||||||
5 | 046F6125 | 1 | 1 | 1 | 1 | Differential Pin (697-04) | Up to Engine No. ? | ||||||
5 | A046F6193 | 1 | 1 | 1 | 1 | Differential Pin (697-04) | From Engine No. ? | ||||||
5 | B046F6193 | 1 | 1 | 1 | 1 | Differential Pin | From Engine No. ? | ||||||
5 | C046F6193 | 1 | 1 | 1 | 1 | Differential Pin | From Engine No. ? | ||||||
6 | 046F6124 | 1 | 1 | 1 | 1 | Tension Pin 4 x 40 mm. | Up to Engine No. ? | ||||||
6 | A046F6124 | 1 | 1 | 1 | 1 | Tension Pin 5 x 40 mm. | From Engine No. ? | ||||||
7 | 046F6136 | 2 | 2 | 2 | 2 | Star Wheel | Up to Engine No. ? | ||||||
7 | A046F6136 | 2 | 2 | 2 | 2 | Star Wheel | From Engine No. ? | ||||||
8 | 046F6135 | 2 | 2 | 2 | 2 | Shim - Star Wheel | |||||||
9 | 046F6138 | 2 | 2 | 2 | 2 | Drive Shaft | |||||||
10 | 046F6137 | 2 | 2 | 2 | 2 | Bushing - Drive Shaft | |||||||
11 | 046F6144 | Shim - Optional As Required | |||||||||||
11 | 046F6145 | Shim - Optional As Required | |||||||||||
12 | 046F6188 | 2 | 2 | 2 | 2 | Tension Pin 7 x 40 mm. | |||||||
13 | 046F6194 | 10 | 10 | 10 | 10 | Screw - Crown Wheel to Carrier | |||||||
14 | 046F6142 | 1 | 1 | 1 | 1 | Bearing - Differential Carrier | |||||||
15 | 046F6126 | 1 | 1 | 1 | 1 | Bearing - Differential Carrier | |||||||
16 | 046F6140 | 2 | 2 | 2 | 2 | O Ring | |||||||
17 | 046F6141 | 2 | 2 | 2 | 2 | Seal Ring or 046F6141A | |||||||
17 | 046F6141A | 2 | 2 | 2 | 2 | Seal Ring or 046F6141 |
