Notes Bulletin Reference | |||||||||||||

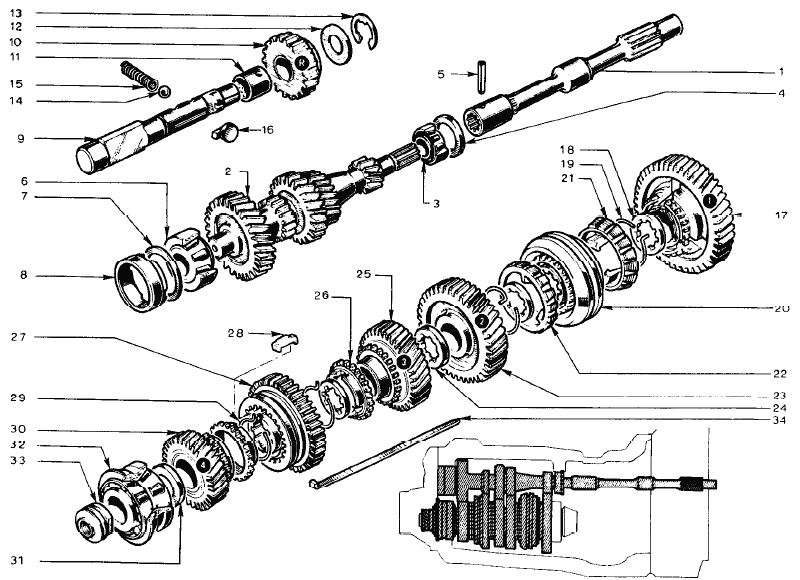

1 | 046F6050 | 1 | 1 | 1 | 1 | Drive Shaft | |||||||
2 | 046F6034 | 1 | 1 | 1 | 1 | Primary Shaft (Type 336-08 - 336-26 & 336-46) | |||||||
2 | A046F6034 | 1 | 1 | 1 | 1 | Primary Shaft (Type 336-56) | |||||||
3 | 046F6051 | 1 | 1 | 1 | 1 | Bearing - Primary Shaft | |||||||
4 | 046F6082 | Shim 2.00 mm. - Optional (As Required) | |||||||||||
4 | 046F6083 | Shim 2.25 mm. - Optionall (As Required) | |||||||||||
4 | 046F6084 | Shim 2.50 mm. - Optionall (As Required) | |||||||||||
4 | 046F6085 | Shim 2.75 mm. - Optionall (As Required) | |||||||||||
4 | 046F6086 | Shim 3.00 mm. - Optionall (As Required) | |||||||||||
4 | 046F6087 | Shim 3.25 mm. - Optionall (As Required) | |||||||||||
4 | 046F6088 | Shim 3.50 mm. - Optionall (As Required) | |||||||||||
4 | 046F6089 | Shim 3.75 mm. - Optionall (As Required) | |||||||||||
4 | 046F6090 | Shim 4.00 mm. - Optionall (As Required) | |||||||||||
5 | 046F6033 | 1 | 1 | 1 | 1 | Tension Pin | |||||||
6 | 046F6035 | 1 | 1 | 1 | 1 | Bearing - Primary Shaft | |||||||
7 | 046F6077 | Shim 0.10 mm. - Optional (As Required) | |||||||||||
7 | 046F6078 | Shim 0.20 mm. - Optional (As Required) | |||||||||||
7 | 046F6079 | Shim 0.25 mm. - Optional (As Required) | |||||||||||
7 | 046F6080 | Shim 0.50 mm. - Optional (As Required) | |||||||||||
7 | 046F6081 | Shim 1.00 mm. - Optional (As Required) | |||||||||||
8 | 046F6036 | 1 | 1 | 1 | 1 | Retaining Ring | |||||||
9 | 046F6031 | 1 | 1 | 1 | 1 | Shaft - Reverse Gear (Type 336-08 - 336-26 - & 336-46) | |||||||
9 | A046F6031 | 1 | 1 | 1 | 1 | Shaft - Reverse Gear (Type 336-56) | |||||||
10 | 046F6027 | 1 | 1 | 1 | 1 | Reverse Gear | |||||||
11 | 046F6028 | 1 | 1 | 1 | 1 | Bush - Reverse Gear | |||||||
12 | 046F6026 | 1 | 1 | 1 | 1 | Thrust Washer | |||||||
13 | 046F6025 | 1 | 1 | 1 | 1 | Circlip | |||||||
14 | 046F6030 | 1 | 1 | 1 | Selector Ball - 8 mm. - Reverse Gear Shaft (Type 336-08 - 336-26 & 336-46) | ||||||||
14 | A046F6028 | 1 | 1 | Selector Ball - 10 mm. - Reverse Gear Shaft (Type 336-56) | |||||||||
15 | 046F6029 | 1 | 1 | 1 | Selector Spring (Type 336-08 - 336-26 & 336-46) | ||||||||
15 | A046F6028 | 1 | 1 | Selector Spring (Type 336-56) | |||||||||
16 | 046F6032 | 1 | 1 | 1 | Guide (Type 336-08 - 336-26 & 336-46) | ||||||||
16 | A046F6032 | 1 | 1 | Guide (Type 336-56) | |||||||||
17 | 046F6053 | 1 | 1 | 1 | Gear - 1st. Speed | Up to Engine No. ? | |||||||
17 | A046F6053 | 1 | 1 | Gear - 1st. Speed | Up to Engine No. ? | ||||||||
18 | 046F6038 | 3 | 3 | 3 | 3 | Thrust Washer | |||||||
19 | 046F6052 | 2 | 2 | 2 | 2 | Spring Clip - Synchroiser - 1st. & 2nd. Speed | |||||||
20 | 046F6056 | 1 | 1 | 1 | 1 | Synchroiser Hub - (Yellow) (Type 336-08 - 336-26 & 336-46) | |||||||
20 | 046F6058 | 1 | 1 | 1 | 1 | Synchroiser Hub - (Yellow) (Type 336-56) | |||||||
20 | 046F6057 | 1 | 1 | 1 | 1 | Synchroiser Hub - (Blue) (Type 336-08 - 336-26 & 336-46) | |||||||
20 | 046F6059 | 1 | 1 | 1 | 1 | Synchroiser Hub - (Blue) (Type 336-56) | |||||||
21 | 046F6054 | 1 | 1 | 1 | 1 | Synchroiser Ring - 1st. Speed | |||||||
22 | 046F6060 | 1 | 1 | 1 | 1 | Synchroiser Ring - 2nd. Speed | |||||||
23 | 046F6061 | 1 | 1 | 1 | 1 | Gear - 2nd. Speed (Type 336-08 & 336-26) | |||||||
23 | A046F6061 | 1 | 1 | 1 | 1 | Gear - 2nd. Speed (Type 336-46) | |||||||
23 | B046F6061 | 1 | 1 | 1 | 1 | Gear - 2nd. Speed - 43 Teeth (Type 336-56) | |||||||
24 | 046F6062 | 1 | 1 | 1 | 1 | Thrust Washer | |||||||
25 | 046F6037 | 1 | 1 | 1 | 1 | Gear - 3rd. Speed | |||||||
26 | 046F6046 | 2 | 2 | 2 | 2 | Synchroniser Ring - 3rd. & 4th. Speed | |||||||
27 | 046F6042 | 1 | 1 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (Yellow) | |||||||
27 | 046F6043 | 1 | 1 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (Blue) | |||||||
28 | 046F6039 | 3 | 3 | 3 | 3 | Keys - 3rd. & 4th. Speed Synchroniser | |||||||
29 | 046F6040 | 2 | 2 | 2 | 2 | Spring Clip - 3rd. & 4th. Speed Synchroniser | Up to Chassis No. ? | ||||||
29 | A046F6040 | 2 | 2 | 2 | 2 | Spring Clip - 3rd. & 4th. Speed Synchroniser | From Chassis No. ? | ||||||
30 | 046F6047 | 1 | 1 | 1 | 1 | Gear - 4th. Speed | |||||||
31 | 046F6064 | Shim 3.50 mm. (Optional - As Required) | |||||||||||
31 | 046F6065 | Shim 3.55 mm. (Optional - As Required) | |||||||||||
31 | 046F6066 | Shim 3.60 mm. (Optional - As Required) | |||||||||||
31 | 046F6067 | Shim 3.65 mm. (Optional - As Required) | |||||||||||
31 | 046F6068 | Shim 3.70 mm. (Optional - As Required) | |||||||||||
31 | 046F6069 | Shim 3.75 mm. (Optional - As Required) | |||||||||||
31 | 046F6070 | Shim 3.80 mm. (Optional - As Required) | |||||||||||
31 | 046F6071 | Shim 3.85 mm. (Optional - As Required) | |||||||||||
31 | 046F6072 | Shim 3.90 mm. (Optional - As Required) | |||||||||||
31 | 046F6073 | Shim 3.95 mm. (Optional - As Required) | |||||||||||
31 | 046F6074 | Shim 4.00 mm. (Optional - As Required) | |||||||||||
31 | 046F6075 | Shim 4.05 mm. (Optional - As Required) | |||||||||||
31 | 046F6076 | Shim 4.10 mm. (Optional - As Required) | |||||||||||
32 | 046F6048 | 1 | 1 | 1 | 1 | Bearing | |||||||
33 | 046F6049 | 1 | 1 | 1 | 1 | Nut - Pinion | |||||||
34 | 046F6063 | 1 | 1 | 1 | 1 | Key |
