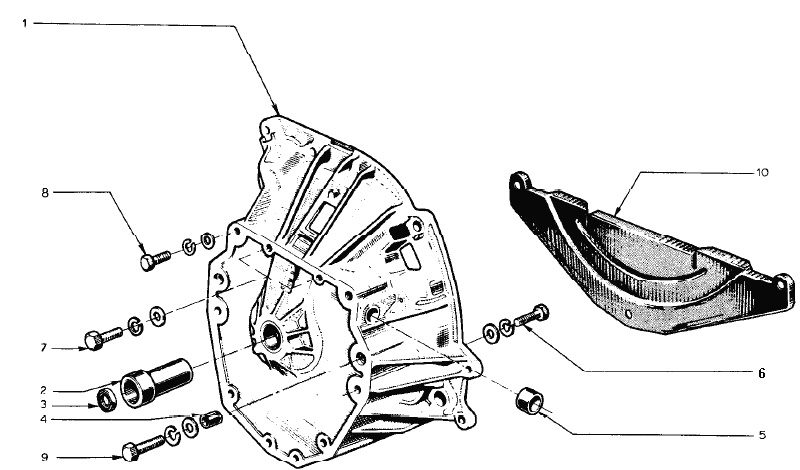

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection FC -- Transmission -- Bell HousingLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (100K) |
Notes Bulletin Reference | |||||||||||||
1 | 046F6020 | 1 | 1 | 1 | 1 | Bell Housing - Replaced by A046F6020 with 3 of A046W6116 Bolt | 697-04 Up to Eng. No. ? - Type 336-26 Up to gearbox No. 0420 | ||||||
1 | A046F6020 | 1 | 1 | 1 | 1 | Bell Housing | From Chassis No. ? - Type 336-26 From Gearbox No. 0421 - Type 336-46 From Gearbox No. 0001 | ||||||
2 | 046F6021 | 1 | 1 | 1 | 1 | Seal Carrier | |||||||
3 | 046F6022 | 1 | 1 | 1 | Seal (697-04) | ||||||||
3 | A046F6022 | 1 | Seal (821-30) | ||||||||||
4 | 046F6023 | 2 | 2 | 2 | 2 | Bushing | |||||||
5 | 046F6024 | 2 | 2 | 2 | 2 | Bushing - Cross Shaft | |||||||
6 | A046W6081 | 6 | 6 | 6 | 6 | Bolt 8 x 30 | |||||||
7 | A046W6098 | 2 | 2 | 2 | 2 | Bolt 8 x 25 | |||||||
7 | A046W6018 | 8 | 8 | 8 | 8 | Spring Washer | |||||||
7 | A046W6002 | 8 | 8 | 8 | 8 | Washer | |||||||
8 | A046W6097 | 2 | 2 | 2 | 2 | Bolt 10 x 35 | |||||||
9 | A046W6009 | 2 | 2 | 2 | 2 | Bolt 10 x 45 | |||||||
9 | A046W6009 | 4 | 4 | 4 | 4 | Spring Washer | |||||||
9 | A046W6010 | 4 | 4 | 4 | 4 | Washer | |||||||
9 | A046F6196 | 2 | Plug (Type 336-26) | From Gearbox No. 0421 | |||||||||
9 | A046f6196 | 2 | Plug (Type 336-46) | From Gearbox No. 0066 | |||||||||
10 | A046F6200 | 1 | 1 | 1 | 1 | Dirt Shield |
