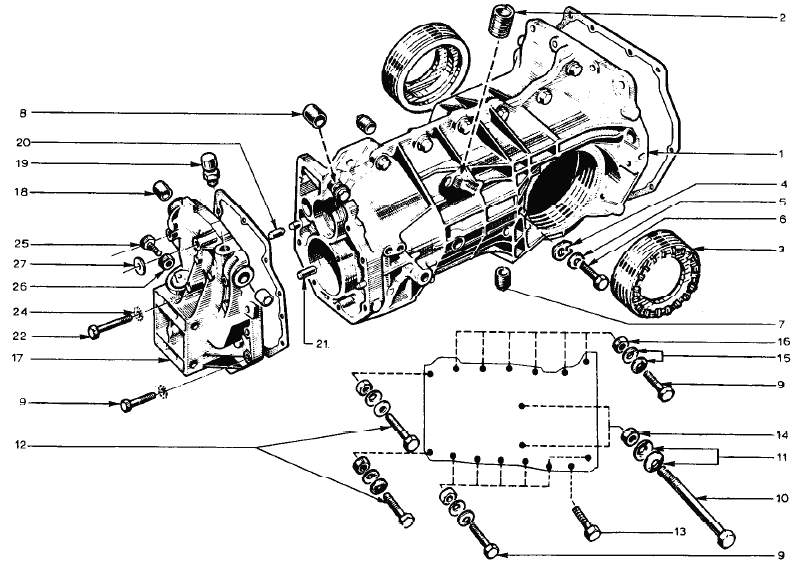

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection FB -- Transmission -- CasingLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (260K) |
Notes Bulletin Reference | |||||||||||||
1 | 046F6014 | Replaced by 046F6014A | |||||||||||
1 | 046F6014A | 1 | 1 | 1 | 1 | Gearbox Casing (697-04) | Up to Chassis No. ? | ||||||
1 | A046F6014 | 1 | 1 | 1 | 1 | Gearbox Casing (Type 336-46) | From Chassis No. ? To ? | ||||||
1 | B046F6014 | 1 | 1 | 1 | 1 | Gearbox Casing (Type 336-56) | From Chassis No ? | ||||||
2 | 046F6013 | 1 | 1 | 1 | 1 | Helicoil | |||||||
3 | 046F6001 | 2 | 2 | 2 | 2 | Nut - Bearing Retaining | |||||||
4 | 046F6015 | 2 | 2 | 2 | 2 | Lock Tab - Bearing Retaining Nut | |||||||
5 | A046W6083 | 2 | 2 | 2 | 2 | Washer - Bearing Retaining Nut | |||||||
6 | A046F6019 | 2 | 2 | 2 | 2 | Bolt - Bearing Retaining Nut | |||||||
7 | 046F6002 | 2 | 2 | 2 | 2 | Plug - Oil Drain/Oil Level | |||||||
8 | 046F6003 | 2 | 2 | 2 | 2 | Spacer | |||||||
9 | A046W6086 | 17 | 17 | 17 | 17 | Bolt - 7 x 30 | |||||||
10 | A046W6088 | 2 | 2 | 2 | 2 | Bolt - 8 x 112 | |||||||
11 | A046W6091 | 4 | 4 | 4 | 4 | Washer | |||||||
12 | A046W6090 | 2 | 2 | 2 | 2 | Bolt - 7 x 40 | |||||||
13 | A046W6089 | 1 | 1 | 1 | 1 | Bolt - 7 x 35 | |||||||
14 | A046W6087 | 2 | 2 | 2 | 2 | Nut | |||||||
15 | A046W6085 | 30 | 30 | 30 | 30 | Washer | |||||||
16 | A046W6084 | 15 | 15 | 15 | 15 | Nut | |||||||
17 | 046F6008 | 1 | 1 | 1 | 1 | Rear Gearbox Casing | 697-04 Up to Eng. No. 0319 including 0283 & 0304 | ||||||
17 | A046F6008 | 1 | 1 | 1 | 1 | Rear Gearbox Casing | 697-04 From Eng. No. 0319 excluding 0283 & 0304 - 821-30 From Eng. No. 0001 | ||||||
18 | 046F6006 | 2 | 2 | 2 | Bush (697-04) | ||||||||
18 | 046F6006 | 1 | Bush (821-30) | ||||||||||
18 | A046F6006 | 1 | Bush (821-30) | ||||||||||
19 | 046F6005 | Breather | |||||||||||
20 | 046F6004 | 2 | 2 | 2 | 2 | Dowel Pin | |||||||
21 | 046F6009 | 1 | 1 | 1 | 1 | Dowel Pin | |||||||
22 | A046W6092 | 3 | 3 | 3 | 3 | Bolt 7 x 50 | |||||||
24 | A046W6093 | 8 | 8 | 8 | 8 | Washer | |||||||
25 | A046W6095 | 1 | 1 | 1 | 1 | Bolt | |||||||
26 | A046W6094 | 1 | 1 | 1 | 1 | Nut | |||||||
27 | A043W6036 | 1 | 1 | 1 | 1 | Washer | |||||||
27 | 046F6177 | 1 | 1 | 1 | 1 | Transmission Gasket Set |
