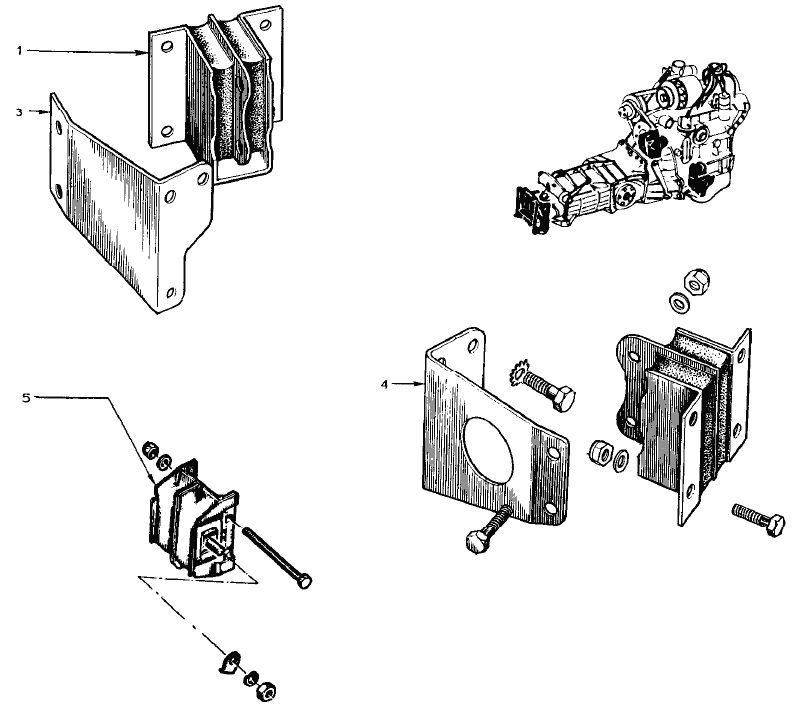

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection ET -- Engine -- Engine MountingLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (90K) |
Notes Bulletin Reference | |||||||||||||
1 | 026E0374 | 2 | 2 | 2 | 2 | Engine Mounting - replaced by 054E6000 | SB - Service III 1969/27 | ||||||
1 | 054E6000 | 2 | 2 | 2 | 2 | Engine mounting | |||||||
1 | XUFS0612 | 4 | 4 | 4 | 4 | Bolt - Engine mounting to bracket | |||||||
1 | YUFN060F | 4 | 4 | 4 | 4 | Nut - Engine mounting to bracket | |||||||
1 | A06W1207 | 4 | 4 | 4 | 4 | Washer - Engine mounting to bracket | |||||||
1 | XUFS0512 | 8 | 8 | 8 | 8 | Bolt - Engine mounting to chassis | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head | ||||||
1 | YUFN050F | 8 | 8 | 8 | 8 | Nut - Engine mounting to chassis | |||||||
1 | A05W1007 | 8 | 8 | 8 | 8 | Washer - Engine mounting to chassis | 1/16" thick, 5/8" OD and 9/32" ID | ||||||
3 | 046E0377 | 1 | 1 | 1 | 1 | Mounting Bracket LH | |||||||
4 | 046E0378 | 1 | 1 | 1 | 1 | Mounting Bracket RH | |||||||
4 | 046E6460 | 4 | 4 | 4 | 4 | Bolt - Upper 8 x 25 mm. - Mounting bracket to engine | |||||||
4 | 046E6461 | 2 | 2 | 2 | 2 | Bolt - Lower 10 x 30 mm. - Mounting bracket to engine | |||||||
4 | A046W6114 | 4 | 4 | 4 | 4 | Washer - 8 mm. - Mounting bracket to engine | |||||||
4 | 046E6456 | 2 | 2 | 2 | 2 | Washer - 10 mm. - Mounting bracket to engine | |||||||
5 | 046F6146 | 1 | 1 | 1 | Gear Box Mounting (697-04) | From Eng. No. ? | |||||||
5 | 046F6195 | 1 | 1 | 1 | Gear Box Mounting (697-04) | From Eng. No. ? | |||||||
5 | 046F6195 | 1 | Gear Box Mounting (821-30) | From Eng. No. 001 | |||||||||
5 | 046E6462 | 2 | 2 | 2 | 2 | Bolt - 8 x 100 mm. - gear box mounting to gear box | |||||||
5 | A046W6105 | 2 | 2 | 2 | 2 | Nut - 8 x 100 mm. - gear box mounting to gear box | |||||||
5 | A046W6002 | 2 | 2 | 2 | 2 | Washer - 8 x 100 mm. - gear box mounting to gear box |
