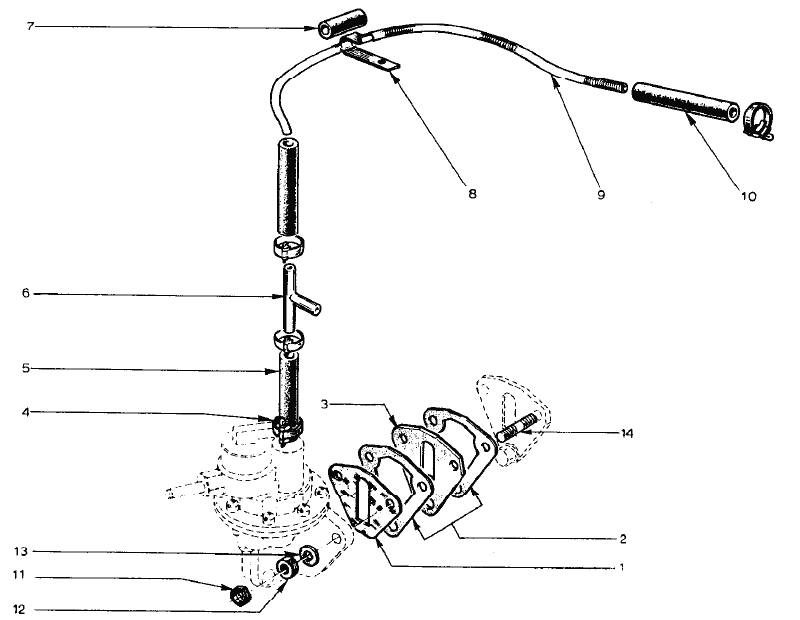

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection ES -- Engine -- Fuel HosesLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (75K) |
Notes Bulletin Reference | |||||||||||||
1 | 046E6334 | 1 | 1 | 1 | Fuel pump mounting Gasket - replaced by A046E6490 | ||||||||
1 | A046E6490 | 1 | 1 | 1 | Fuel pump mounting Gasket | ||||||||
2 | A054E6050 | 2 | Fuel pump mounting Gasket - (821-30) | ||||||||||
2 | A054E6050 | 1 | 1 | 1 | Fuel pump mounting Gasket - (697-04) | ||||||||
3 | 046E6015 | 1 | 1 | 1 | 1 | Fuel pump mounting Gasket | |||||||
4 | 046E6342 | 4 | 4 | 4 | 4 | Clip - Fuel line | To chassis No. 2519 and 1177 | ||||||
5 | 046E6338 | 1 | 1 | 1 | 1 | Hose - Pump Connection to Fuel line | To chassis No. 2519 and 1177 | ||||||
6 | 046E6491 | 1 | 1 | 1 | Three-way Connection (697-04) replaced by A046E6492 after exhausting old stock | To chassis No. 2519 and 1177 | |||||||
6 | A046E6492 | 1 | 1 | 1 | 1 | Three-way Connection | |||||||
7 | 046E6340 | 1 | 1 | 1 | 1 | Sleeve - 25 mm. Long | |||||||
8 | 046E6337 | 1 | 1 | 1 | 1 | Clip - Fuel line support | |||||||
9 | 046E6343 | 1 | 1 | 1 | Fuel Line - Pump to Carburettor | To chassis No. 2519 and 1177 | |||||||
9 | A054E6090 | 1 | Fuel Line - Pump to Carburettor | To chassis No. 2519 and 1177 | |||||||||
9 | A054E6001 | 1 | 1 | Fuel Line - Pump to Carburettor | From chassis No. 2520 and 1178 | ||||||||
10 | A046E6495 ? | Hose - Fuel line to T piece fuel line to carburetter | |||||||||||
11 | 046E6344 | 2 | 2 | 2 | 2 | Lock Nut - Fuel pump to cylinder block | |||||||
12 | 046E6339 | 2 | 2 | 2 | 2 | Nut - Fuel pump to cylinder block | |||||||
13 | 046E6336 | 2 | 2 | 2 | 2 | Washer - Fuel pump to cylinder block | |||||||
14 | A046E6496 | 2 | 2 | 2 | 2 | Stud - Fuel pump to cylinder block |
