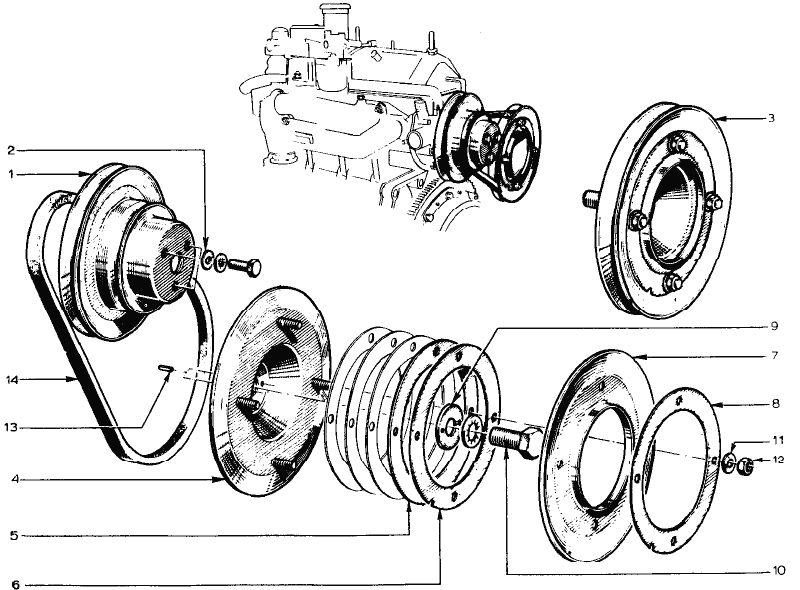

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EQ -- Engine -- Pulleys and BeltsLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (125K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6299 | 1 | 1 | Water pump pulley - replaced by A046E6488 after exhausting old stocks first | Up to Eng. No. ? | ||||||||
| 1 | A046E6488 | 1 | 1 | 1 | Water pump pulley | 697-04 From Eng. No. ? | |||||||
| 1 | A046E6489 | 1 | 1 | 1 | 1 | Water pump pulley | 697-04 From Eng. No. ? - 821-30 From Eng. No. 0001 | ||||||
| 2 | 046E6154 | 3 | 3 | 3 | 3 | Washer - Pulley to water pump | |||||||
| 2 | A046W6001 | 3 | 3 | 3 | 3 | Star Washer - Pulley to water pump | |||||||
| 2 | A046W6049 | 3 | 3 | 3 | 3 | Bolt - 8 x 14 mm. - Pulley to water pump | |||||||
| 3 | 046E6305 | 1 | 1 | 1 | Camshaft Pulley | Up to Eng. No. 1066 | |||||||
| 3 | A054E6070 | 1 | 1 | 1 | 1 | Camshaft Pulley | 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001 | ||||||
| 4 | 046E6302 | 1 | 1 | 1 | Hub - Camshaft pulley - replaced by A054E6072 and A054E6073 after exhausting old stock | Up to Eng. No. 1066 | |||||||
| 4 | A054E6072 | 1 | 1 | 1 | 1 | Hub - Camshaft pulley | 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001 | ||||||
| 5 | 046E6303 | 4 | 4 | 4 | 4 | Disc - Camshaft pulley - 0.95 | |||||||
| 6 | 046E6304 | 2 | 2 | 2 | 2 | Disc - Camshaft pulley - 0.50 | |||||||
| 7 | 046E6307 | 1 | 1 | 1 | 1 | Hub support - replaced by A054E6074 after exhausting old stock | |||||||
| 7 | A054E6074 | 1 | 1 | 1 | 1 | Hub Support | |||||||
| 8 | 046E6304 | 1 | 1 | 1 | 1 | Support ring | |||||||
| 9 | 046E6306 | 1 | 1 | 1 | 1 | Locating washer (697-04) - replaced by A054E6074 and 2 of A054E6072 after exhausting old stock | Up to Eng. No. 1066 | ||||||
| 9 | A054E6073 | 1 | 1 | 1 | 1 | Locating washer | 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001 | ||||||
| 10 | 046E6311 | 1 | 1 | 1 | 1 | Bolt - Pulley to camshaft | |||||||
| 10 | A046W6048 | 1 | 1 | 1 | 1 | Washer - Pulley to camshaft | |||||||
| 11 | 046E6309 | 4 | 4 | 4 | 4 | Dished washer - Pulley retaining | |||||||
| 12 | 046E6310 | 4 | 4 | 4 | 4 | Nut - Pulley retaining | |||||||
| 13 | 046E6301 | 2 | 2 | 2 | Dowel pin - replaced by A054E6071 and 1 of A054E6072 Locating washer | Up to Eng. No. 1066 | |||||||
| 13 | A054E6072 | 2 | 2 | 2 | 2 | Dowel pin | 697-04 from Eng. No. 1067 - 821-30 from Eng. No. 0001 | ||||||
| 14 | 046E6300 | 1 | 1 | 1 | 1 | Drive Belt - Cam to Water Pump | - More Info - |
