LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EP -- Engine -- Water PumpLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (100K) |

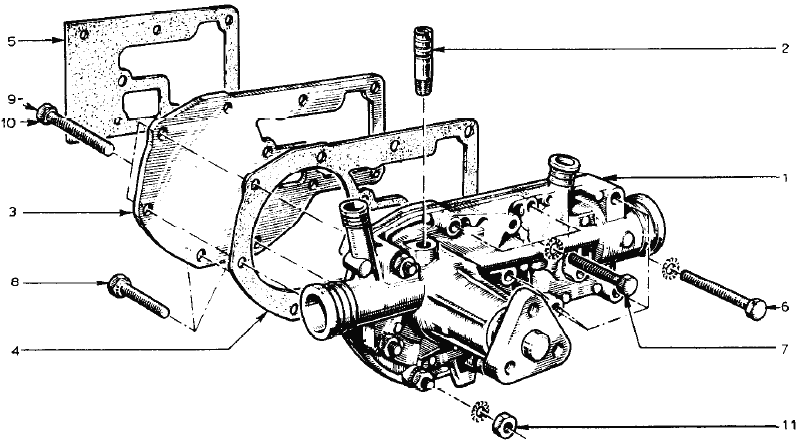

Notes Bulletin Reference | |||||||||||||
1 | 046E6297 | 1 | 1 | Water Pump Assembly replaced by A054E6058 after exhausting old stocks | - More Info - | ||||||||
1 | A046E6297 | 1 | 1 | 1 | Water Pump Assembly replaced by A054E6058 after exhausting old stocks | - More Info - | |||||||
1 | A054E6058 | 1 | 1 | 1 | 1 | Water Pump Assembly | - More Info - | ||||||
2 | 046E6296 | 1 | 1 | 1 | 1 | Connector - Hose to Throttle Block | (697-04) to Eng. No. 1790 - (821-30) to Eng. No. 0411 | ||||||
2 | A054E6069 | 1 | 1 | 1 | 1 | Connector - Hose to Throttle Block | (697-04) From Eng. No. 1790 - (821-30) from Eng. No. 0412 | ||||||
3 | 046E6294 | 1 | 1 | 1 | 1 | Intermediate Plate | |||||||
4 | 046E6295 | 1 | 1 | 1 | 1 | Water Pump to Intermediate Plate Gasket | |||||||
5 | 046E6292 | 1 | 1 | 1 | 1 | Water Pump Intermediate Plate to Cylinder Block Gasket | |||||||
6 | A046W6043 | 4 | 4 | 4 | 4 | Bolt - 7 x 60 | |||||||
6 | A046W6047 | 4 | 4 | 4 | 4 | Washer | |||||||
7 | A046W6044 | 3 | 3 | 3 | 3 | Bolt - 7 x 40 | |||||||
7 | A046W6047 | 3 | 3 | 3 | 3 | Washer | |||||||
8 | A046W6041 | 2 | 2 | 2 | 2 | Bolt 7 x 35 | (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222 | ||||||
8 | A046W6042 | 2 | 2 | 2 | 2 | Bolt 7 x 20 | (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223 | ||||||
8 | A046W6047 | 2 | 2 | 2 | 2 | Washer | (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223 | ||||||
9 | 046E6293 | 2 | 2 | 2 | 2 | Bolt - 7 x 55 | (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222 | ||||||
10 | A046W6042 | 2 | 2 | 2 | 2 | Bolt - 7 x 20 | (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223 | ||||||
10 | A046W6047 | 2 | 2 | 2 | 2 | Washer | (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223 | ||||||
11 | A046W6046 | 4 | 4 | 4 | 4 | Nut | (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222 | ||||||
11 | A046W6045 | 4 | 4 | 4 | 4 | Washer | (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222 |
