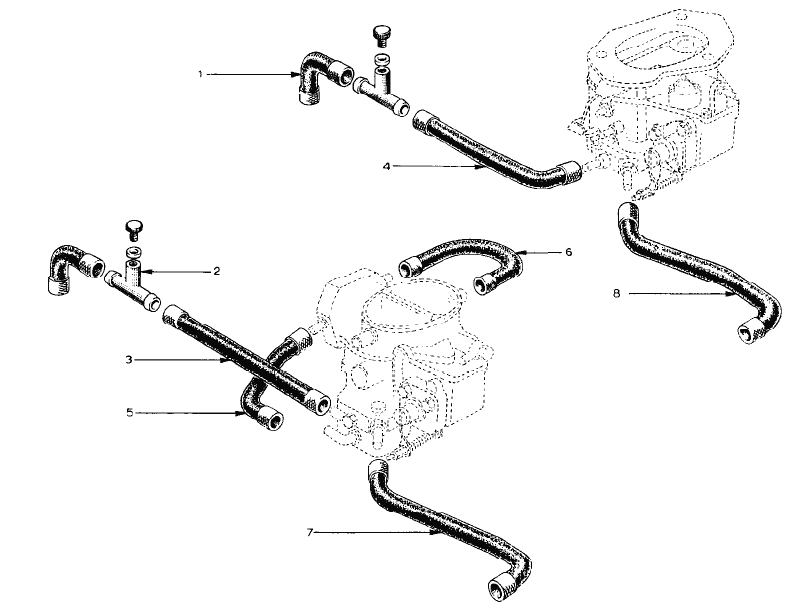

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EL -- Engine -- Carburettor Hoses2Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (85K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | A046E6270 | 1 | 1 | 1 | 1 | Hose | |||||||
| 2 | 046E6267 | 1 | 1 | 1 | 1 | Valve | |||||||
| 2 | 046E6268 | 1 | 1 | 1 | 1 | Screw Cap | |||||||
| 2 | 046E6269 | 1 | 1 | 1 | 1 | Washer | |||||||
| 3 | A046E6272 | 1 | 1 | 1 | Hose (697-04) | ||||||||
| 4 | 054E6039 | 1 | Hose (821-30) | ||||||||||
| 5 | 054E6040 | 1 | Hose (821-30) | ||||||||||
| 5 | A054E6700 | 1 | Hose (821-30) | ||||||||||
| 6 | 054E6038 | 1 | Hose (821-30) | ||||||||||
| 6 | A054E6101 | 1 | Hose (821-30) | ||||||||||
| 7 | A046E6274 | 1 | 1 | 1 | Hose (697-04) | ||||||||
| 8 | 054E6041 | 1 | Hose (821-30) | ||||||||||
| 8 | 046E6271 | 4 | 4 | 4 | 4 | Clip | |||||||
| 8 | 046E6273 | 4 | Clip (821-30) | ||||||||||
| 8 | 046E6273 | 2 | 2 | 2 | Clip (697-04) | ||||||||
| 8 | A054E6091 | 2 | Clip (821-30) |
