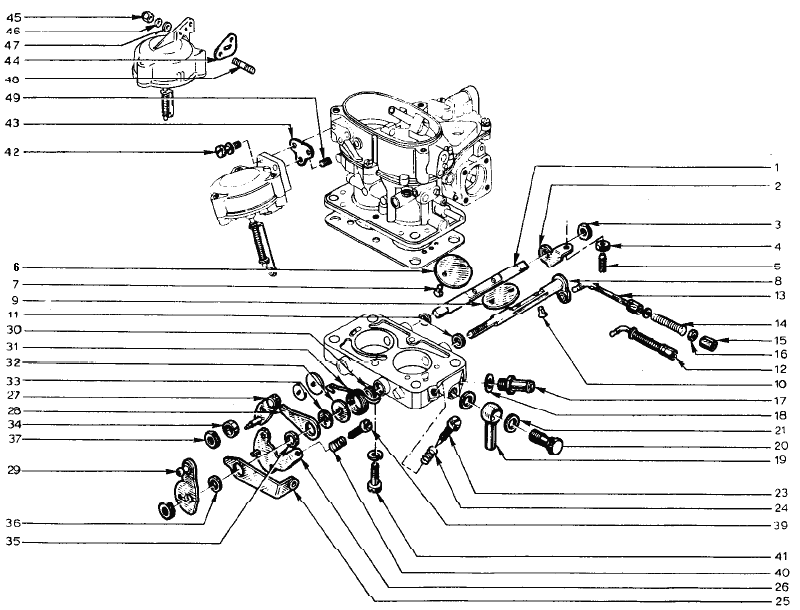

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EK -- Engine -- Carburettor Parts Section 2Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (260K) |
Notes Bulletin Reference | |||||||||||||
1 | 046E6245 | 1 | 1 | 1 | 1 | Shaft - Throttle valve | |||||||
2 | 046E6246 | 1 | 1 | 1 | 1 | Stop Lever | |||||||
3 | 046E6241 | 1 | 1 | 1 | 1 | Nut - Throttle Shaft | |||||||
4 | 046E6247 | 1 | 1 | 1 | 1 | Lock Nut - Throttle Stop | |||||||
5 | 046E6248 | 1 | 1 | 1 | 1 | Adjustment Screw - Throttle Stop | |||||||
6 | 046E6232 | 1 | 1 | 1 | 1 | Throttle Valve | |||||||
7 | 046E6233 | 2 | 2 | 2 | 2 | Screw | |||||||
8 | 046E6249 | 1 | 1 | 1 | 1 | Shaft with lever - throttle valve | |||||||
9 | 046E6232 | 1 | 1 | 1 | 1 | Throttle valve | |||||||
10 | 046E6233 | 2 | 2 | Screw | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
10 | 046E6410 | 2 | 2 | 2 | 2 | Screw | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
11 | 046E6234 | 2 | 2 | 2 | 2 | Spacer bush | |||||||
12 | 046E6254 | 1 | 1 | Link Assembly - Accelerator pump | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
12 | 046E6409 | 1 | 1 | 1 | Link Assembly - Accelerator pump | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | |||||||
13 | 046E6250 | 1 | 1 | Link - Accelerator pump | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
13 | A046E6486 | 1 | 1 | 1 | 1 | Link - Accelerator pump | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
14 | 046E6251 | 1 | 1 | 1 | 1 | Spring - Accelerator pump link | |||||||
15 | 046E6252 | 2 | 2 | 2 | 2 | Nut - Accelerator pump link | |||||||
16 | 046E6253 | 2 | 2 | 2 | 2 | Nut - Accelerator pump link | |||||||
16 | A046W6028 | 1 | 1 | 1 | 1 | Washer - Accelerator Pump Link | |||||||
17 | 046E6255 | 1 | 1 | 1 | 1 | Connection | |||||||
18 | 046E6256 | 1 | 1 | 1 | 1 | Washer | |||||||
19 | 046E6258 | 1 | 1 | 1 | 1 | Connector - banjo | |||||||
20 | 046E6257 | 1 | 1 | 1 | 1 | Banjo Bolt | |||||||
21 | 046E6256 | 2 | 2 | 2 | 2 | Washer | |||||||
23 | 046E6259 | 1 | 1 | 1 | 1 | Idle Screw - Non-Emission | |||||||
24 | 046E6260 | 1 | 1 | 1 | 1 | Spring - Idle Screw - Non_Emission | |||||||
25 | 046E6264 | 1 | 1 | Lever - Choke Operating Link | Up to Eng. No. 0391 | ||||||||
25 | 046E6408 | 1 | 1 | 1 | Lever - Choke Operating Link | From Eng. No. 0392 | |||||||
26 | 046E6263 | 1 | 1 | 1 | 1 | Stop Lever - Idle Adjustment | |||||||
27 | 046E6238 | 1 | 1 | 1 | 1 | Stop lever - Second Stage | |||||||
28 | 046E6239 | 1 | 1 | 1 | 1 | Intermediate Lever | |||||||
29 | 046E6242 | 1 | 1 | 1 | 1 | Lever - Throttle Control | |||||||
30 | 046E6234 | 1 | 1 | 1 | 1 | Spacer Bush | |||||||
31 | 046E6235 | 1 | 1 | 1 | 1 | Return Spring | |||||||
32 | 046E6236 | 2 | 2 | 2 | 2 | Washer | |||||||
33 | 046E6237 | 2 | 2 | 2 | 2 | Washer | |||||||
34 | 046E6240 | 1 | 1 | 1 | 1 | Spacer Bush | |||||||
35 | 046E6244 | 1 | 1 | 1 | 1 | Spacer Bush - 11 x 8 x 3 mm. | |||||||
36 | 046E6243 | 1 | 1 | 1 | 1 | Spacer Bush - 10.9 x 18.1 x 2 mm. | |||||||
37 | 046E6241 | 2 | 2 | 2 | 2 | Nut | |||||||
39 | 046E6261 | 1 | 1 | 1 | 1 | Screw - Throttle Stop | |||||||
40 | 046E6260 | 1 | 1 | 1 | 1 | Spring - Throttle Stop Screw | |||||||
41 | 046E6262 | 2 | 2 | 2 | 2 | Screw - Throttle Block to Carburetter Body | |||||||
41 | A046W6029 | 2 | 2 | 2 | 2 | Washer - Throttle Block to Carburetter Body | |||||||
42 | 046E6174 | 2 | 2 | Screw - Vacuum Control to Cover | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
43 | 046E6231 | 1 | 1 | 1 | Carburetter Gasket - Vacuum Control to Cover (697-04) | ||||||||
44 | A054E6031 | 1 | Carburetter Gasket - Vacuum Control to Cover (821-30) | ||||||||||
45 | A046W6109 | 2 | 2 | 2 | 2 | Nut - Vacuum Control to Cover | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
46 | A046W6027 | 2 | 2 | 2 | 2 | Spring Washer - Vacuum Control to Cover | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
47 | A046W6111 | 2 | 2 | 2 | 2 | Washer - Vacuum Control to Cover | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
48 | A046W6110 | 2 | 2 | 2 | 2 | Stud - Vacuum Control to Cover | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
49 | 046E6197 | 1 | 1 | Jet - 80 | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
49 | A046E6487 | 1 | 1 | 1 | 1 | Jet - 70 | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 |
