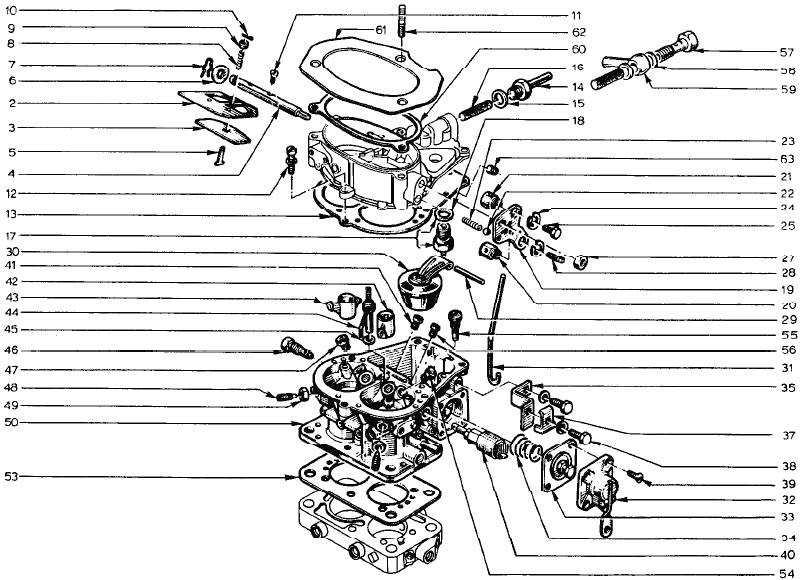

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EJ -- Engine -- Carburettor Parts Section 1Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (430K) |
Notes Bulletin Reference | |||||||||||||
2 | 046E6170 | 1 | 1 | Choke Flap | |||||||||
3 | 046E6171 | 1 | Choke By-pass Flap | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
3 | A046E6480 | 1 | 1 | 1 | 1 | Choke By-pass Flap | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
4 | 046E6173 | 1 | 1 | Choke Shaft | |||||||||
5 | 046E6172 | 1 | Choke By-pass Shaft | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
5 | 046E6461 ? | 1 | 1 | 1 | 1 | Choke By-pass Shaft | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
6 | 046E6169 | 1 | 1 | Choke Shaft Washer | |||||||||
7 | 046E6168 | 1 | 1 | Choke Shaft Retaining Clip | |||||||||
8 | 046E6167 | 1 | Choke By-pass Flap Spring | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
8 | 046E6412 | 1 | 1 | 1 | 1 | Choke By-pass Flap Spring | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
9 | 046E6166 | 1 | Choke By-pass Flap Nut | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
9 | 046E6411 | 1 | 1 | 1 | 1 | Choke By-pass Flap Nut | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
10 | 046E6165 | 1 | 1 | 1 | 1 | Choke By-pass Flap Split Pin | |||||||
11 | 046E6189 | 1 | 1 | 1 | 1 | Flap to Shaft Screw | |||||||
12 | 046E6414 | 1 | 1 | 1 | 1 | Cover to Body Screw | |||||||
13 | 046E6175 | 1 | Carburetter Cover Gasket | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
13 | A046E6485 | 1 | 1 | 1 | 1 | Carburetter Cover Gasket | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
13 | A046W6027 | 5 | 5 | 5 | 5 | Cover to Main Body Spring Washer | |||||||
13 | A046E6482 | 5 | 5 | 5 | 5 | Cover to Main BodyWasher | |||||||
14 | 046E6193 | 1 | 1 | 1 | Fuel Inlet Connector (697-04) | ||||||||
15 | 046E6194 | 1 | 1 | 1 | Fuel Inlet Washer (697-04) | ||||||||
16 | 046E6192 | 1 | 1 | 1 | 1 | Fuel Inlet Gauze | |||||||
17 | 046E6176 | 1 | 1 | 1 | 1 | 1.7 mm Needle Valve | |||||||
18 | 046E6195 | 1 | 1 | 1 | 1 | Needle Valve Washer | |||||||
19 | 046E6215 | 1 | 1 | Choke Control Lever | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
19 | 046E6483 | 1 | 1 | Choke Control Lever | From Eng. No. 0251 to 0391 including 207 - 219 - 242 - 245 - 249 | ||||||||
19 | 046E6419 | 1 | 1 | 1 | Choke Control Lever | From Eng. No. 0392 | |||||||
20 | 046E6216 | 1 | 1 | 1 | 1 | Choke Cable Mounting Bush | |||||||
21 | 046E6198 | 1 | 1 | 1 | 1 | Link to Lever Mounting Bush | |||||||
22 | 046E6199 | 1 | 1 | 1 | 1 | Choke Control Lever Ball | |||||||
23 | 046E6196 | 1 | 1 | 1 | 1 | Choke Lever Ball Pressure Spring | |||||||
24 | 046E6211 | 2 | 2 | 2 | 2 | Circlip | |||||||
25 | 046E6212 | 1 | 1 | 1 | 1 | Choke Operating Link Clamping Screw | |||||||
27 | 046E6213 | 1 | 1 | 1 | 1 | Choke Lever to Shaft Nut | |||||||
28 | 046E6214 | 1 | 1 | 1 | 1 | Choke Cable to Bush Clamping Screw | |||||||
29 | 046E6217 | 1 | 1 | 1 | 1 | Float Shaft | |||||||
30 | 046E6177 | 1 | 1 | 1 | 1 | 7.3 gr. Float | |||||||
31 | 046E6220 | 1 | 1 | Choke Operating Link | Up to Eng. No. 0391 | ||||||||
31 | 046E6420 | 1 | 1 | 1 | Choke Operating Link | From Eng. No. 0392 | |||||||
32 | 046E6225 | 1 | 1 | 1 | 1 | Accelerator Pump Cover | |||||||
33 | 046E6226 | 1 | 1 | 1 | 1 | Accelerator Pump Diaphragm | |||||||
34 | 046E6227 | 1 | 1 | 1 | 1 | Accelerator Pump Spring | |||||||
35 | 046E6221 | 1 | 1 | Choke Cable Bracket | Up to Eng. No. 0391 | ||||||||
35 | 046E6421 | 1 | 1 | 1 | Choke Cable Bracket | From Eng. No. 0392 | |||||||
37 | 046E6223 | 1 | 1 | 1 | 1 | Choke Cable Bracket | |||||||
38 | 046E6222 | 2 | 2 | 2 | 2 | Choke Cable Mounting Bracket Bolt | |||||||
39 | 046E6224 | 1 | 1 | 1 | 1 | Accelerator Pump Cover Screw | |||||||
40 | 046E6416 | 1 | 1 | 1 | Idle Jet - 50 with electric cutout - (697-04) | From Eng. No. 0392 | |||||||
40 | A054E6037 | 1 | Idle Jet - 50 with electric cutout - (821-30) | ||||||||||
41 | 046E6178 | 1 | 1 | 1 | Jet - 140 (697-04) | ||||||||
41 | A054E6036 | 1 | Jet - 142.5 (821-30) | ||||||||||
42 | 046E6406 | 1 | 1 | 1 | Emulsion block - 2.8 (697-04) | ||||||||
42 | 046E6406 | 1 | 1 | 1 | Emulsion block - 2.8 (697-04) | ||||||||
42 | 054E6032 | 1 | Emulsion block - 2.8 (821-30) | ||||||||||
43 | 046E6407 | 1 | 1 | 1 | 1 | Emulsion block - 3.2 | |||||||
44 | 046E6181 | 1 | 1 | 1 | 1 | Injection Tube - 40 | |||||||
45 | 046E6182 | 1 | 1 | 1 | 1 | Carburetter Gasket - Injection tube | |||||||
46 | 046E6183 | 2 | 2 | 2 | Idle Jet - 50 (697-04) | Up To Eng. No. 0391 | |||||||
46 | 046E6183 | 1 | 1 | 1 | Idle Jet - 50 (697-04) | From Eng. No. 0392 | |||||||
46 | A054E6034 | 1 | Idle Jet - 95 (821-30) | ||||||||||
47 | 046E6184 | 1 | 1 | 1 | Jet - 150 (697-04) | ||||||||
47 | A054E6033 | 1 | Jet - 125 (821-30) | ||||||||||
48 | 046E6185 | 2 | 2 | Retaining Screw - Emulsion block | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
49 | 046E6186 | 2 | 2 | Lock Nut - Emulsion block | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
50 | 046E6187 | 1 | 1 | Body (697-04) | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
50 | A046E6484 | 1 | 1 | 1 | Body | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | |||||||
53 | 046E6188 | 1 | 1 | 1 | 1 | Carburetter Gasket - Main body to throttle block | |||||||
54 | 046E6228 | 1 | 1 | 1 | Jet - 135 (697-04) | ||||||||
54 | A054E6033 | 1 | Jet - 125 (821-30) | ||||||||||
55 | 046E6218 | 1 | 1 | 1 | 1 | Jet | |||||||
56 | 046E6219 | 1 | 1 | 1 | Jet - 145 (697-04) | ||||||||
56 | A054E6035 | 1 | Jet - 130 (821039) | ||||||||||
57 | A054E6067 | 1 | Banjo bolt (821-30) | ||||||||||
58 | 046E6256 | 1 | Washer (821-30) | ||||||||||
59 | A054E6068 | 1 | Banjo (821-30) | ||||||||||
60 | 046E6191 | 1 | 1 | 1 | 1 | Carburetter Gasket - mounting plate | |||||||
61 | 046E6417 | 1 | 1 | 1 | 1 | Mounting plate | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
62 | A046W6013 | 3 | 3 | 3 | 3 | Stud - Air filter to carburettor | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 | ||||||
63 | 046E6418 | 1 | 1 | 1 | 1 | Jet - Air correction - 270 | From Eng. No. 0251 including 207 - 219 - 242 - 245 - 249 |
