LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EG -- Engine -- Carburettor AttachmentLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (135K) |

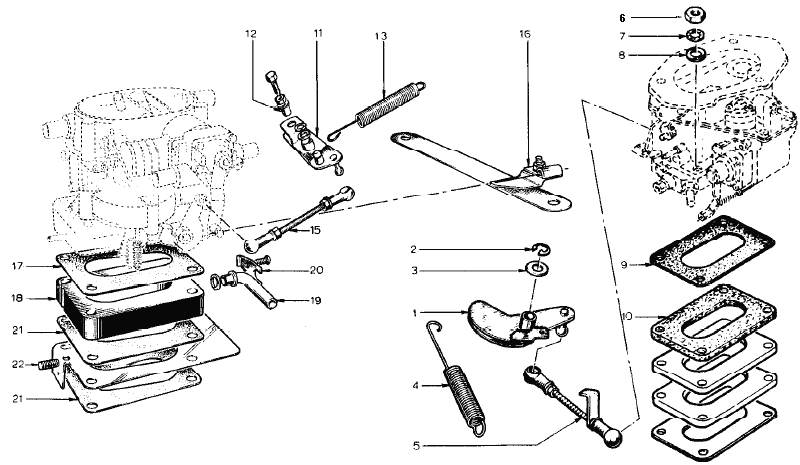

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6152 | 1 | 1 | 1 | Relay Lever | M.O.T. 697-04 - R9210 | |||||||
| 2 | 046E6151 | 1 | 1 | 1 | Circlip | M.O.T. 697-04 - R9210 | |||||||
| 3 | A046W6002 | 1 | 1 | 1 | Washer - ? mm. | M.O.T. 697-04 - R9210 | |||||||
| 4 | 046E6402 | 1 | 1 | 1 | Return Spring | M.O.T. 697-04 - R9210 | |||||||
| 5 | 046E6153 | 1 | 1 | 1 | Operating Lever | M.O.T. 697-04 - R9210 | |||||||
| 6 | A046W6023 | 4 | 4 | 4 | Nut | M.O.T. 697-04 - R9210 | |||||||
| 7 | A046W6001 | 4 | 4 | 4 | Star Washer | M.O.T. 697-04 - R9210 | |||||||
| 8 | 046E6154 | 4 | 4 | 4 | Plain Washer - 8 mm. | M.O.T. 697-04 - R9210 | |||||||
| 9 | 046E6155 | 3 | 3 | 3 | Joint | M.O.T. 697-04 - R9210 | |||||||
| 10 | 046E6156 | 2 | 2 | 2 | Insulator | M.O.T. 697-04 - R9210 | |||||||
| 11 | A054E? | 1 | Relay Lever | M.O.T. 821-30 - R9211 | |||||||||
| 12 | A054E? | 1 | Collar | M.O.T. 821-30 - R9211 | |||||||||
| 13 | A054E? | 1 | Return Spring | M.O.T. 821-30 - R9211 | |||||||||
| 15 | A054E? | 1 | Operating Lever | M.O.T. 821-30 - R9211 | |||||||||
| 16 | A054E? | 1 | Support | M.O.T. 821-30 - R9211 | |||||||||
| 17 | A054E? | 1 | Joint | M.O.T. 821-30 - R9211 | |||||||||
| 18 | A054E? | 1 | Insulator | M.O.T. 821-30 - R9211 | |||||||||
| 19 | A054E? | 1 | Elbow | M.O.T. 821-30 - R9211 | |||||||||
| 20 | A054E? | 1 | Clip | M.O.T. 821-30 - R9211 | |||||||||
| 21 | A054E? | 1 | Joint | M.O.T. 821-30 - R9211 | |||||||||
| 22 | A054E? | 2 | Support Plate | M.O.T. 821-30 - R9211 | |||||||||
| 22 | A054E? | 1 |
