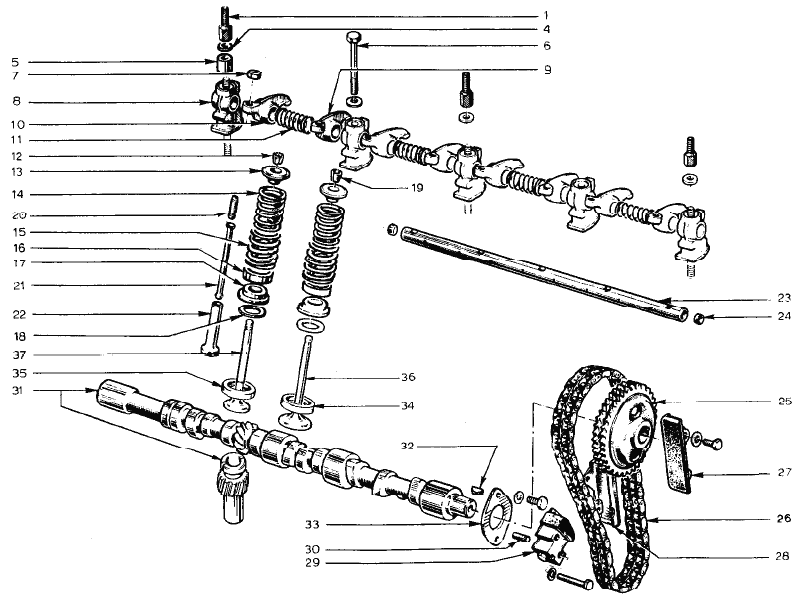

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EE -- Engine -- Cam and ValvesLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (235K) |
Notes Bulletin Reference | |||||||||||||
1 | 046E6124 | 3 | 3 | 3 | 3 | Rocker Cover Retaining Stud | |||||||
4 | 046E6125 | 3 | 3 | 3 | 3 | Rocker Support Pillar Washer | |||||||
5 | 046E6103 | 2 | 2 | 2 | 2 | Bush | |||||||
6 | 046E6126 | 2 | 2 | 2 | 2 | Rocker Support Pillar Bolt | |||||||
7 | 046E6104 | 8 | 8 | 8 | 8 | Tappet Lock Nut | |||||||
8 | 046E6105 | 5 | 5 | 5 | 5 | Rocker Support Pillar | |||||||
9 | 046E6127 | 4 | 4 | 4 | 4 | Inlet Rocker Arm | |||||||
10 | 046E6106 | 4 | 4 | 4 | 4 | Exhaust Rocker Arm | |||||||
11 | 046E6107 | 4 | 4 | 4 | 4 | Rocker Shaft Spring | |||||||
12 | 046E6108 | 8 | 8 | 8 | 8 | Exhaust Valve Collette | |||||||
13 | 046E6109 | 8 | 8 | 8 | 8 | Valve Spring Retainer | |||||||
14 | 046E6110 | 8 | 8 | 8 | 8 | Inner Valve Spring | |||||||
15 | 046E6112 | 8 | 8 | 8 | 8 | Outer Valve Spring | |||||||
16 | 046E6113 | 8 | 8 | 8 | 8 | Valve Spring Spacer | |||||||
17 | 046E6114 | 8 | 8 | 8 | 8 | Valve Spring Seat | |||||||
18 | 046E6118 | 8 | 8 | 8 | 8 | Valve Spring Seat Washer | |||||||
19 | 046E6129 | 8 | 8 | 8 | 8 | Inelt Valve Collette | |||||||
20 | 046E6111 | 8 | 8 | 8 | 8 | Tappet Adjusting Screw | |||||||
21 | 046E6115 | 8 | 8 | 8 | 8 | Push Rod | |||||||
22 | 046E6116 | 8 | 8 | 8 | Tappet Block 12.00 mm. | Up to Eng. No. 1128 | |||||||
22 | A046E6116 | 8 | 8 | 8 | Tappet Block 12.00 mm. (697-04) | From Eng. No. 1129 | |||||||
22 | A046E6116 | 8 | Tappet Block 12.00 mm. (821-30) | From Eng. No. 0001 | |||||||||
22 | 046E6117 | 8 | 8 | 8 | Tappet Block 12.20 mm. | Up to Eng. No. 1128 | |||||||
22 | 046E6464 | 8 | 8 | 8 | Tappet Block 12.20 mm. (697-04) | From Eng. No. 1129 | |||||||
22 | 046E6464 | 8 | Tappet Block 12.20 mm. (821-30) | From Eng. No. 0001 | |||||||||
23 | 046E6130 | 1 | 1 | 1 | 1 | Rocker Shaft | |||||||
24 | 046E6131 | 2 | 2 | 2 | 2 | Rocker Shaft Plug | |||||||
25 | 046E6134 | 1 | 1 | 1 | 1 | Camshaft Sprocket | |||||||
26 | 046E6137 | 1 | 1 | 1 | 1 | Timing Chain | |||||||
27 | 046E6136 | 2 | Chain Guide | Up to Eng. No. 0033 | |||||||||
27 | 046E6135 | 4 | Chain Guide to Cylinder Block Bolt | Up to Eng. No. 0033 | |||||||||
27 | A046W6014 | 4 | Chain Guide to Cylinder Block Washer | Up to Eng. No. 0033 | |||||||||
28 | 046E6396 | 2 | 2 | 2 | 2 | Chain Guide | From Eng. No. 0034 | ||||||
28 | A046E6135 | 4 | 4 | 4 | 4 | Chain Guide to Cylinder Block Bolt | |||||||
28 | A046W6011 | 4 | 4 | 4 | 4 | Chain Guide to Cylinder Block Washer | |||||||
29 | 046E6123 | 1 | 1 | 1 | 1 | Timing Chain Tightener | |||||||
30 | 046E6122 | 1 | 1 | 1 | 1 | Gauge | |||||||
30 | A046W6015 | 2 | 2 | 2 | 2 | Tightener to Cylinder Block Bolt | |||||||
30 | A046W6016 | 2 | 2 | 2 | 2 | Tightener to Cylinder Block Washer | |||||||
31 | 046E6371 | 1 | 1 | 1 | 1 | Camshaft - or 054E6003 | |||||||
31 | 054E6003 | 1 | 1 | 1 | 1 | Camshaft - or 046E6371 | |||||||
32 | 046E6133 | 1 | 1 | 1 | 1 | Woodruff Key | |||||||
33 | 046E6121 | 1 | 1 | 1 | 1 | Thrust Washer | |||||||
33 | A046E6017 | 2 | 2 | 2 | 2 | Camshaft Retaining Bolt | |||||||
33 | A046W6014 | 2 | 2 | 2 | 2 | Camshaft Retaining Washer | |||||||
34 | 046E6369 | 4 | 4 | 4 | 4 | Inlet Valve Seat | |||||||
35 | 046E6370 | 4 | 4 | 4 | 4 | Exhaust Valve Seat | |||||||
36 | 046E3162 | 4 | 4 | 4 | Inlet Valve (697-04) | ||||||||
36 | A054E6021 | 4 | Inlet Valve (821-30) | ||||||||||
37 | 046E6119 | 4 | 4 | 4 | Exhaust Valve (697-04) | ||||||||
37 | A054E6020 | 4 | Exhaust Valve (821-30) |
