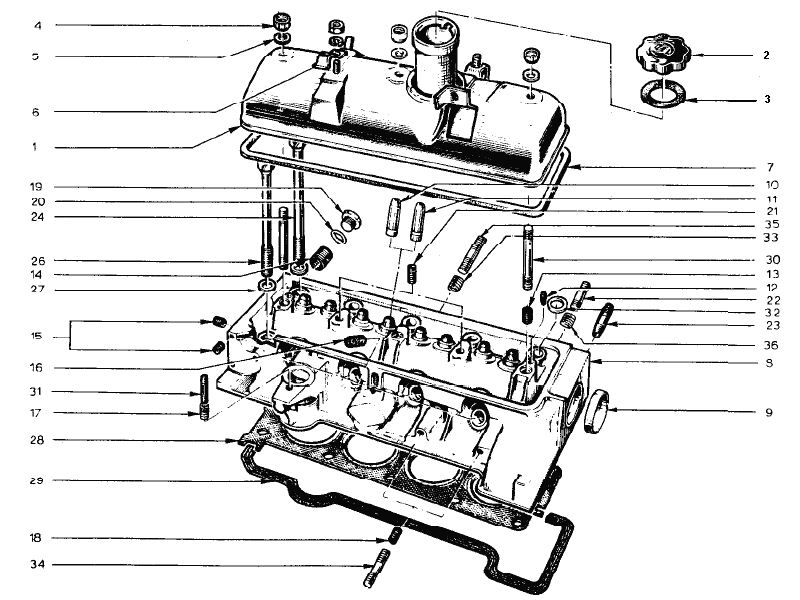

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection ED -- Engine -- Cylinder HeadLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (280K) |
Notes Bulletin Reference | |||||||||||||
1 | 046E6079 | 1 | 1 | 1 | 1 | Rocker Cover - or 046E6390 | - More Info - | ||||||
1 | 046E6390 | 1 | 1 | 1 | 1 | Rocker Cover - or 046E6079 | - More Info - | ||||||
2 | 046E6090 | 1 | 1 | 1 | 1 | Oil Filler Cap | |||||||
2 | 046E6091 | 1 | 1 | 1 | 1 | Oil Filler Cap Seal Ring - or 046E6393 | |||||||
3 | 046E6393 | 1 | 1 | 1 | 1 | Oil Filler CapSeal Ring - or 046E6091 | |||||||
4 | 046E6076 | 3 | 3 | 3 | 3 | Rocker Cover Nut | |||||||
5 | 046E6077 | 3 | 3 | 3 | 3 | Rocker Cover Washer | - More Info - | ||||||
6 | 046E6078 | 1 | 1 | 1 | 1 | Mounting Bracket | |||||||
7 | 046E6092 | 1 | 1 | 1 | 1 | Rocker Cover Gasket | - More Info - | ||||||
8 | 046E6101 | 1 | 1 | Cylinder Head (697-04) replaced by A046E6101 & 2 of 054E6010 Nut | From Eng. No. 0001 to Eng. No. | ||||||||
8 | A046E6101 | 1 | Cylinder Head (697-04) | From Eng. No. | |||||||||
8 | A054E6019 | 1 | Cylinder Head (821-30) | From Eng. No. 0001 to Eng. No. 0897 | |||||||||
8 | A054E6056 | 1 | Cylinder Head (821-30) | From Eng. No. 0898 | |||||||||
9 | 046E6102 | 1 | 1 | 1 | 1 | Plug | |||||||
10 | 046E6093 | 8 | 8 | 8 | 8 | 13.10 mm Valve Guide - or 046E6094 | |||||||
11 | 046E6094 | 8 | 8 | 8 | 8 | 13.25 mm Valve Guide - or 046E6093 | |||||||
12 | 046E6098 | 2 | 2 | 2 | 2 | Dowel Pin | |||||||
13 | 046E6097 | 4 | 4 | 4 | 4 | Heli Coil Insert | |||||||
14 | 046E6083 | 1 | 1 | 1 | 1 | Heli Coil Insert | |||||||
15 | 046E6085 | 10 | 10 | 10 | 10 | Heli Coil Insert | |||||||
16 | 046E6086 | 4 | 4 | 4 | 4 | Heli Coil Insert - or 046E6392 | |||||||
16 | 046E6392 | 4 | 4 | 4 | 4 | Heli Coil Insert - or 046E6086 | |||||||
17 | 046E6087 | 1 | 1 | 1 | 1 | Heli Coil Insert | |||||||
18 | 046E6087 | 2 | 2 | 2 | 2 | Heli Coil Insert | |||||||
19 | 046E6080 | 1 | 1 | 1 | Plug (697-04 only) | ||||||||
19 | A046E6080 | 1 | 1 | 1 | 1 | Plug | |||||||
20 | 046E6050 | 2 | 2 | 2 | 2 | Seal Ring | |||||||
21 | 046E6095 | 2 | 2 | 2 | 2 | Heli Coil Insert | |||||||
22 | 046E6099 | 4 | 4 | 4 | 6 | Stud | |||||||
22 | 046E6145 | 2 | 2 | 2 | Bolt (697-04 only) | ||||||||
23 | 046E6100 | 1 | 1 | 1 | Connector (697-04) | Up to Eng. No. 1790 | |||||||
23 | 046E6100 | 1 | Connector (821-30) | Up to Eng. No. 0411 | |||||||||
23 | A046E6100 | 1 | 1 | 1 | Connector (697-04) | From Eng. No. 1791 | |||||||
23 | A046E6100 | 1 | Connector (821-30) | From Eng. No. 0412 | |||||||||
24 | 046E6391 | 5 | 5 | 5 | 5 | Cylinder Head Bolt (697-04) | Up to Eng. No. 0866 | ||||||
24 | 046E6391 | 4 | 4 | 4 | 4 | Cylinder Head Bolt (697-04) | From Eng. No. 0867 | ||||||
24 | 046E6391 | 4 | Cylinder Head Bolt (821-30) | ||||||||||
26 | 046E6081 | 5 | 5 | 5 | 5 | Cylinder Head Bolt (697-04) | Up to Eng. No. 0866 | ||||||
26 | 046E6081 | 4 | 4 | 4 | 4 | Cylinder Head Bolt (697-04) | From Eng. No. 0867 | ||||||
26 | 046E6081 | 4 | Cylinder Head Bolt (821-30) | ||||||||||
27 | 046E6084 | 10 | 10 | 10 | Cylinder Head Bolt Washer - (697-04) | Up to Eng. No. 0565 | |||||||
27 | 046E6084 | 8 | 8 | 8 | Cylinder Head Bolt Washer - (697-04) | From Eng. No. 0566 to 0866 | |||||||
27 | 046E6084 | 9 | 9 | 9 | Cylinder Head Bolt Washer - (697-04) | From Eng. No. 0867 | |||||||
27 | 046E6084 | 9 | Cylinder Head Bolt Washer - (821-30) | ||||||||||
28 | 046E6088 | 1 | 1 | 1 | Cylinder Head Gasket (697-04) | ||||||||
28/29 | 054E6006 | 1 | Cylinder Head Gasket (821-30) | Up to Eng. No. - More Info - | |||||||||
28/29 | A054E6057 | 1 | Cylinder Head Gasket (821-30) | From Eng. No. - More Info - | |||||||||
29 | A046E6089 | 1 | 1 | 1 | 1 | Joint Cylinder Head (697-04) | Up to Eng. No. 0052 | ||||||
29 | 046E6089 | 1 | 1 | 1 | 1 | Joint Cylinder Head (697-04) | From Eng. No. 0053 | ||||||
30 | 046E6082 | 3 | 3 | 3 | 3 | Cam Support Pillar Stud | |||||||
31 | A046W6018 | 1 | 1 | 1 | 1 | Distributor to Cylinder Head Stud | |||||||
32 | 046E6395 | 2 | 2 | Washer (697-04) | From Eng. No. 0566 to 0866 | ||||||||
32 | 046E6395 | 1 | Washer (697-04) | From Eng. No. 0867 | |||||||||
32 | 046E6395 | 1 | Washer (821-30) | ||||||||||
33 | A046E6495 | 2 | 2 | 2 | Helicoil (697-04) | From Eng. No. 0577 | |||||||
33 | A046E6495 | 2 | Helicoil (821-30) | From Eng No. 0001 | |||||||||
34 | A046E6496 | 1 | 1 | 1 | 1 | Stud | |||||||
35 | A046E6497 | 2 | 2 | 2 | 2 | Stud (697-04) | |||||||
35 | A046E6497 | 2 | Stud (821-30) | ||||||||||
36 | 046E6097 | 2 | 2 | 2 | Helicoil (697-04) | From Eng. No. 0556 | |||||||
36 | 046E6097 | 2 | Helicoil (821-30) | From Eng. No. 0001 | |||||||||
046E3680 | 1 | 1 | 1 | De-Carb Gasket Set | |||||||||
054E6004 | 1 | De-Carb Gasket Set | To Engine No. ? | ||||||||||
A054E6004 | 1 | De-Carb Gasket Set | From Engine No. ? |
