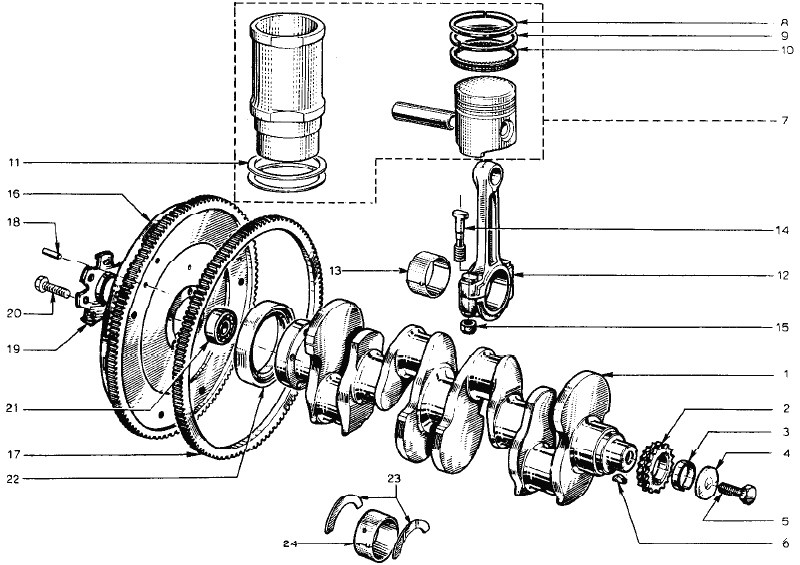

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EC -- Engine -- Pistons, Rods and CrankLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (245K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6388 | 1 | 1 | 1 | 1 | Crankshaft (694-04) | Up to Eng. No. 0066 | ||||||
| 1 | 046E6389 | 1 | 1 | 1 | 1 | Crankshaft (694-04) | From Eng. No. 0067 | ||||||
| 1 | A054E6015 | 1 | Crankshaft (821-30) | ||||||||||
| 2 | 046E6072 | 1 | 1 | 1 | 1 | Sprocket | Up to Eng. No. 2556 (697-02) 1254 (821-30) | ||||||
| 3 | 046E6073 | 1 | 1 | 1 | 1 | Sprocket Wheel Spacer | Up to Eng. No. 2556 (697-02) 1254 (821-30) | ||||||
| 4 | 046E6074 | 1 | 1 | 1 | 1 | Sprocket Wheel to Crankshaft Washer | Up to Eng. No. 2556 (697-02) 1254 (821-30) | ||||||
| 5 | A046E6012 | 1 | 1 | 1 | 1 | Sprocket Wheel to Crankshaft Bolt | Up to Eng. No. 2556 (697-02) 1254 (821-30) | ||||||
| 6 | 046E6075 | 1 | 1 | 1 | 1 | Sprocket Wheel to Crankshaft Woodruff Key | From Eng. No. 2556 (697-04) 1255 (821-30) | ||||||
| 7 | A054E6102 | 1 | 1 | Piston/Liner Assembly (697-04) Engine Set Only | Up to Eng. No. 0565 | ||||||||
| 7 | A054E6103 | 1 | Piston/Liner Assembly (697-04) Engine Set Only | From Eng. No. 0566 | |||||||||
| 7 | A054E6104 | 1 | Piston/Liner Assembly (821-30) Engine Set Only | Up to Eng. No. 0866 - More Info - | |||||||||
| 7 | A054E6105 | 1 | Piston/Liner Assembly (821-30) Engine Set Only | From Eng. No. 0867 - More Info - | |||||||||
| 8 | 046E6065 | 4 | Top Piston Ring - (697-04) | Up to Eng. No. 0198 | |||||||||
| 8 | A054E6063 | 4 | 4 | 4 | Top Piston Ring - (697-04) | From Eng. No. 0199 to 1375 | |||||||
| 8 | 054E6016 | 4 | Top Piston Ring - (821-30) | ||||||||||
| 9 | 046E6066 | 4 | 4 | 4 | Centre Piston Ring - (697-04) | ||||||||
| 9 | 054E6017 | 4 | Centre Piston Ring - (821-30) | ||||||||||
| 10 | 046E6067 | 4 | 4 | 4 | Bottom Piston Ring - (697-04) | ||||||||
| 10 | 054E6018 | 4 | Bottom Piston Ring - (821-30) | ||||||||||
| 11 | 046E6200 | 4 | 4 | 4 | 4 | 0.07 mm Shim | |||||||
| 11 | 046E6201 | 4 | 4 | 4 | 4 | 0.10 mm Shim | |||||||
| 12 | 046E6387 | 4 | 4 | 4 | Connecting Rod (697-04) 433 grams Blue | Up to Eng. No. 1641 | |||||||
| 12 | A054E6064 | 4 | Connecting Rod (697-04) 433 grams Blue | From Eng. No. 1642 | |||||||||
| 12 | 054E6064 | 4 | Connecting Rod (821-30) 433 grams Blue | From Eng. No 0001 | |||||||||
| 12 | A054E6065 | 4 | Connecting Rod (697-04) 455 grams | From Eng. No. 1642 | |||||||||
| 12 | A054E6065 | 4 | Connecting Rod (821-30) 455 grams White | From Eng. No. 0001 | |||||||||
| 13 | 046E6002 | 1 | 1 | 1 | 1 | Conn. Rod Bearing Shell - (48 mm.) Standard | |||||||
| 13 | 046E6002A | 1 | 1 | 1 | 1 | Conn. Rod Bearing Shell - (47.75 mm.) Repair Size | |||||||
| 14 | 046E6068 | 8 | 8 | 8 | 8 | Connecting Rod Bolt | |||||||
| 15 | 046E6070 | 8 | 8 | 8 | 8 | Connecting Rod Nut | |||||||
| 16 | 046E6383 | 1 | 1 | 1 | 1 | Flywheel | From Eng. No. 0066 | ||||||
| 16 | 046E6384 | 1 | 1 | 1 | 1 | Flywheel | From Eng. No. 0067 to 0501 | ||||||
| 16 | 046E6385 | 1 | 1 | 1 | 1 | Flywheel | From Eng. No. 0502 | ||||||
| 17 | 046E6063 | 1 | 1 | 1 | 1 | Flywheel Ring Gear | |||||||
| 18 | 046E6059 | 3 | 3 | 3 | 3 | Dowel Pin | |||||||
| 19 | A046E6061 | 1 | 1 | 1 | 1 | Lock Plate | Up to Eng. No. 0066 | ||||||
| 19 | 046E6061 | 1 | 1 | 1 | 1 | Lock Plate | From Eng. No. 0067 | ||||||
| 20 | 046E6060 | 5 | 5 | 5 | 5 | Flywheel to Cranksahft Bolt | Up to Eng. No. 0066 | ||||||
| 20 | 046E6060 | 7 | 7 | 7 | 7 | Flywheel to Cranksahft Bolt | From Eng. No. 0067 | ||||||
| 21 | 046E6386 | 1 | 1 | 1 | 1 | Clutch Spigot Shaft Bearing - | |||||||
| 22 | 046E6064 | 1 | 1 | 1 | 1 | Crankshaft Seal - (697-04) only - use up old stock | - More Info - | ||||||
| 22 | A046E6471 | 1 | 1 | 1 | 1 | Crankshaft Seal | - More Info - | ||||||
| 23 | 046E6004 | 1 | 1 | 1 | 1 | 2.80 mm Thrust Washer - Optional | |||||||
| 23 | 046E6005 | 1 | 1 | 1 | 1 | 2.90 mm Thrust Washer - Optional | |||||||
| 23 | 046E6006 | 1 | 1 | 1 | 1 | 2.95 mm Thrust Washer - Optional | |||||||
| 24 | 046E6003 | 1 | 1 | 1 | 1 | 54.80 mm Main Bearing Set (Standard) | |||||||
| 24 | 046E6382 | 1 | 1 | 1 | 1 | 54.55 mm Main Bearing Set (Repair) |
