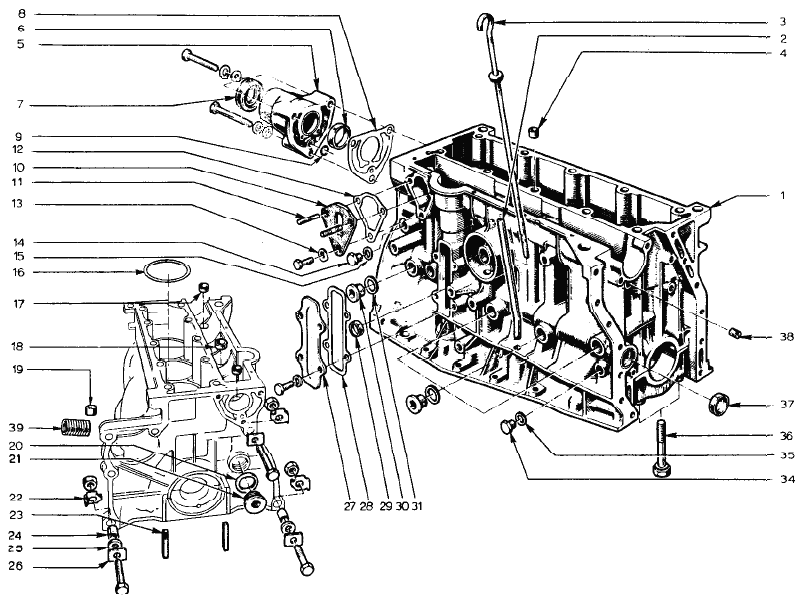

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EA -- Engine -- BlockLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (430K) |
Notes Bulletin Reference | |||||||||||||
1 | 046E6030 | 1 | Cylinder Block (697-04) Replaced by F046E6376 | Up to Eng. No. 0033 | |||||||||
1 | 046E6376 | 1 | 1 | Cylinder Block (697-04) Replaced by F046E6376 | From Eng. No. 0034 to 0565 | ||||||||
1 | E046E6376 | 1 | 1 | Cylinder Block (697-04) | Up to Eng. No. 0566 to 0866 | ||||||||
1 | F046E6373 | 1 | 1 | 1 | Cylinder Block (697-04) | From Eng. No. 0867 | |||||||
1 | F046E6373 | 1 | Cylinder Block (821-30) | From Eng. No. 0001 | |||||||||
2 | 046E6028 | 1 | 1 | 1 | 1 | Dipstick tube | Renault # 0608111500 | ||||||
3 | 046E6027 | 1 | 1 | 1 | 1 | Dipstick | Renault # 0833113100 - More Info - | ||||||
4 | 046E6029 | 1 | 1 | 1 | 1 | 2 x 1.5 x 11mm Dowel Pin | |||||||
5 | 046E6009 | 1 | 1 | 1 | 1 | Camshaft Bearing Housing | |||||||
6 | 046E6008 | 1 | 1 | 1 | 1 | Camshaft Housing Bearing | |||||||
7 | 046E6011 | 1 | 1 | 1 | 1 | Camshaft Housing Seal Ring - 32 x 45 x 10 mm. | |||||||
7 | 046E6010 | 2 | 2 | 2 | 2 | 8 x 52 Bolt | |||||||
7 | A046W6001 | 3 | 3 | 3 | 3 | Camshaft Bearing Housing to Cylinder Block Star Washer | |||||||
7 | 046E6012 | 1 | 1 | 1 | 1 | 8 x 72 Bolt | |||||||
8 | 046E6007 | 1 | 1 | 1 | 1 | Camshaft Housing to Cylinder Block Gasket | |||||||
9 | 046E6013 | 1 | 1 | 1 | 1 | 8.9 x 12.7 x 1.9 mm O Ring | |||||||
10 | 046E6015 | 1 | 1 | 1 | 1 | Joint | |||||||
11 | 046E6016 | 2 | 2 | 2 | 2 | Stud - or A046E6094 | |||||||
11 | A046E6094 | 2 | 2 | 2 | 2 | Stud - or 046E6016 | |||||||
12 | A046E6491 | 1 | 1 | 1 | 1 | Gasket | |||||||
13 | 046E6017 | 1 | 1 | 1 | 1 | Washer - or A046E6082 | |||||||
13 | A046E6082 | 1 | 1 | 1 | 1 | Washer - or 046E6017 | |||||||
13 | A046W6081 | 1 | 1 | 1 | 1 | Fuel Pump Mounting Bolt | |||||||
14 | 046E6018 | 1 | 1 | 1 | 1 | Plug | |||||||
15 | 046E6019 | 1 | 1 | 1 | 1 | Seal | |||||||
16 | A046E6504 | 4 | Shim - 0.07 (697-04) Optional | Up to Eng. No. 0565 | |||||||||
16 | 046E6201 | 4 | Shim - 0.10 (697-04) Optional | Up to Eng. No. 0565 | |||||||||
16 | A054E6095 | 4 | 4 | 4 | Shim - 0.08 (697-04) Optional | From Eng. No. 0566 to 1760 | |||||||
16 | A054E6095 | 4 | 4 | 4 | Shim - 0.08 (821-30) Optional | From Eng. No. 0001 to 0377 | |||||||
16 | A054E6096 | 4 | 4 | 4 | Shim - 0.10 (697-04) Optional | From Eng. No. 0566 to 1760 | |||||||
16 | A054E6096 | 4 | 4 | 4 | Shim - 0.10 (821-30) Optional | From Eng. No. 0001 to 0377 | |||||||
16 | A054E6097 | 4 | 4 | 4 | Shim - 0.12 (697-04) Optional | From Eng. No. 0566 to 1760 | |||||||
16 | A054E6097 | 4 | 4 | 4 | Shim - 0.12 (821-30) Optional | From Eng. No. 0001 to 0377 | |||||||
16 | A054E6095 | 4 | 4 | Shim - 0.08 (697-04) Optional | From Eng. No. 1761 | ||||||||
16 | A054E6095 | 4 | 4 | Shim - 0.08 (821-30) Optional | From Eng. No. 0378 | ||||||||
16 | A054E6096 | 4 | 4 | Shim - 0.10 (697-04) Optional | From Eng. No. 1761 | ||||||||
16 | A054E6096 | 4 | 4 | Shim - 0.10 (821-30) Optional | From Eng. No. 0378 | ||||||||
16 | A054E6097 | 4 | 4 | Shim - 0.12 (697-04) Optional | From Eng. No. 1761 | ||||||||
16 | A054E6097 | 4 | 4 | Shim - 0.12 (821-30) Optional | From Eng. No. 0378 | ||||||||
17 | 046E6020 | 2 | 2 | 2 | 2 | Plug | |||||||
18 | 046E6021 | 1 | 1 | 1 | 1 | Plug | |||||||
19 | 054E6098 | 1 | 1 | 1 | 1 | Plug (697-04) | From Eng. No. 0566 | ||||||
19 | 054E6098 | Plug (821-30) | From Eng. No. 0001 | ||||||||||
20 | 046E6022 | 1 | 1 | 1 | 1 | Seal | |||||||
21 | 046E6023 | 1 | 1 | 1 | 1 | Screw Plug | |||||||
22 | 046E6024 | 3 | 3 | 3 | 3 | Lock Plate | |||||||
23 | 046E6202 | 2 | 2 | 2 | 2 | 5.1 mm Joint - or 046E6203 | |||||||
23 | 046E6203 | 2 | 2 | 2 | 2 | 5.4 mm Joint - or 046E6202 | |||||||
24 | 046E6025 | 2 | 2 | 2 | 2 | Bush | |||||||
25 | 046E6026 | 2 | 2 | 2 | 2 | Washer | |||||||
26 | A046W6009 | 3 | 3 | 3 | 3 | Washer | |||||||
26 | A046W6008 | 2 | 2 | 2 | 2 | 10 x 50 mm Bolt | |||||||
26 | A046W6007 | 3 | 3 | 3 | 3 | Nut | |||||||
27 | 046E6042 | 1 | 1 | Cover plate (697-04) | |||||||||
27 | 046E6043 | 1 | 1 | 1 | 1 | Cover Plate | |||||||
28 | 046E6041 | 1 | 1 | 1 | 1 | Gasket | |||||||
28 | A046W6004 | 4 | 4 | 4 | 4 | Coverplate to Cylinder Block Bolt - 8 x 20 | |||||||
28 | A046W6018 | 4 | 4 | 4 | 4 | Coverplate to Cylinder Block Bolt - 8 x 20 | |||||||
29 | 046E6040 | 1 | 1 | 1 | 1 | Plug | |||||||
30 | 046E6038 | 4 | 4 | 4 | 4 | Screw Plug M18x1.5 | |||||||
31 | 046E6037 | 4 | 4 | 4 | 4 | Screw Plug Seal Ring | |||||||
34 | 046E6018 | 1 | 1 | 1 | 1 | Screw Plug | |||||||
35 | 046E6034 | 1 | 1 | 1 | 1 | Screw Plug Seal Ring | |||||||
36 | 046E6033 | Main Bearing Cap Bolt - 10 x 67 | |||||||||||
37 | 046E6032 | Plug | |||||||||||
38 | 046E6031 | Blanking Plug (697-04) | Up to Eng. No. 0052 | ||||||||||
39 | A054E6099 | 1 | Threaded Tube (821-30) | ||||||||||
39 | A046W6005 | 1 | 1 | 1 | Bolt | ||||||||
39 | A046W6006 | 1 | Bolt | ||||||||||
39 | A046W6010 | 1 | 1 | 1 | 1 | Washer | |||||||
39 | 046E6000 | 1 | 1 | 1 | Overhaul Gasket Set (697-04) | ||||||||
39 | 054E6004 | 1 | Overhaul Gasket Set (821-30) | Up to Eng. No. 0897 - More Info - | |||||||||
39 | A054E6004 | 1 | Overhaul Gasket Set (821-30) | From Eng. No. 0898 - More Info - | |||||||||
1 | A046W6002 | 3 | 3 | 3 | 3 | Washer - Camshaft Bearing Housing to Cylinder Block |
