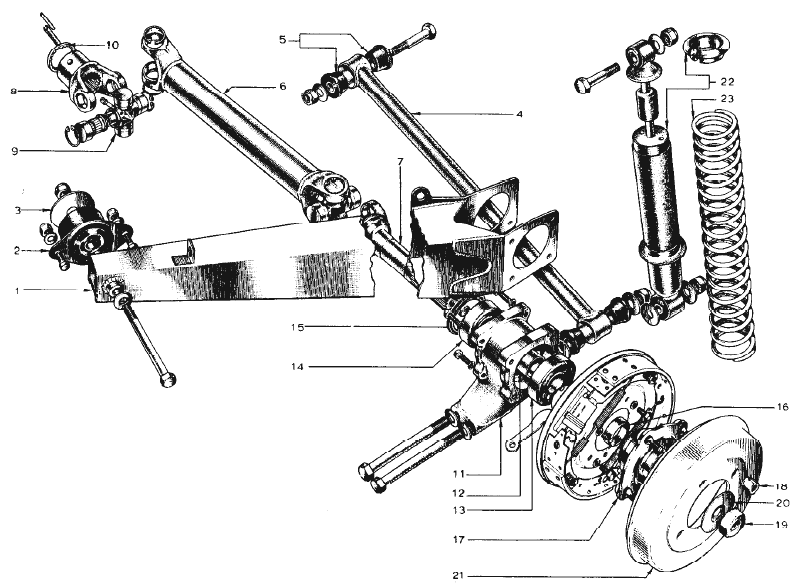

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection DA -- Suspension -- RearLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (530K) |
Notes Bulletin Reference | |||||||||||||
1 | 046D0131 | 1 | 1 | 1 | 1 | Radius Arm LH | |||||||
1 | 046D0132 | 1 | 1 | 1 | 1 | Radius Arm RH | |||||||
2 | 046D6000 | 2 | 2 | 2 | 2 | Resilient Mounting (Metalastic) | |||||||
3 | A07W3212 | 2 | 2 | 2 | 2 | Washer - Resilient Mounting to Radius Arm | |||||||
3 | XUFB0772 | 2 | 2 | 2 | 2 | Bolt - Resilient Mounting to Radius Arm | |||||||
3 | YUFN070F | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Resilient Mounting to Radius Arm | 7/16" x 20 TPI, 11/16" head | ||||||
3 | A07W1405 | 2 | 2 | 2 | 2 | Washer - Resilient Mounting to Radius Arm | |||||||
3 | XUFS0516 | 4 | 4 | 4 | 4 | Bolt - Resilient Mounting to Chassis | |||||||
3 | YUFN050F | 4 | 4 | 4 | 4 | Nut - Resilient Mounting to Chassis | |||||||
3 | A05W1606 | 4 | 4 | 4 | 4 | Washer - Resilient Mounting to Chassis | 3/32" thick, 7/8" OD, 13/32" ID | ||||||
3 | 026B0079 | Washer - Toe-in Adjustment (As Required) | |||||||||||
4 | 046D0014 | 2 | 2 | 2 | 2 | Lower Link | |||||||
5 | XUFB0840 | 3 | 3 | 3 | 3 | Bolt - Lower Link to Mounting Bracket | 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | ||||||
5 | XUFN080F | 2 | 2 | 2 | 2 | Nut - Lower Link to Mounting Bracket | |||||||
5 | A08W2006 | 2 | 2 | 2 | 2 | Washer - Lower Link to Mounting Bracket | 1/16" thick, 1 1/2" OD, 1/2" ID | ||||||
5 | XUFB0872 | 2 | 2 | 2 | 2 | Bolt - Lower Link to Rear Hub | Length 4 1/2", thread length 1 1/4", 1/2" x 20 TPI, head 3/4" | ||||||
5 | YUFN080F | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Lower Link to Rear Hub | 1/2" x 20 TPI, 3/4" head | ||||||
5 | A08W1606 | 4 | 4 | 4 | 4 | Washer - Lower Link to Rear Hub | |||||||
5 | A08W1606 | 2 | 2 | 2 | 2 | Washer - Lower Link to Rear Hub | |||||||
6 | 046D0015 | 2 | 2 | 2 | 2 | Intermediate Drive Shaft | |||||||
7 | 046D0005 | 2 | 2 | 2 | 2 | Outboard Drive Shaft (Rear Stub Axle) | - More Info - | ||||||
8 | 046R6005 | 4 | 4 | 4 | 4 | Yoke - Inboard Drive Shaft | |||||||
9 | 046D6005 | 4 | 4 | 4 | 4 | Universal joint | - More Info - | ||||||
10 | 046R0022 | Spacer Ring (0.405 ins. Undersize) (As Required) | |||||||||||
10 | 046R0023 | Spacer Ring (0.410 ins. Undersize) (As Required) | |||||||||||
10 | 046R0024 | Spacer Ring (1st Oversize) (As Required) | |||||||||||
10 | 046R0025 | Spacer Ring (2nd Oversize 0.420 ins) (As Required) | |||||||||||
10 | 046R0026 | Spacer Ring (3rd Oversize) (As Required) | |||||||||||
10 | 046R6000 | 2 | 2 | 2 | 2 | Tension Pin - Outer - Drive Shaft to Final Drive | |||||||
10 | 046R6001 | 2 | 2 | 2 | 2 | Tension Pin - Inner - Drive Shaft to Final Drive | |||||||
10 | A054D0187 | Shim 0.005 ins. (All - As Required) | |||||||||||
10 | A054D0188 | Shim 0.015 ins. (All - As Required) | |||||||||||
11 | 046D0004 | Replaced by A046D0004 with 1 of A046D0005 | Up to Chassis No. 0050 | ||||||||||
11 | A046D0004 | 1 | 1 | 1 | 1 | Rear Wheel Bearing Housing LH | From Chassis No. 0051 | ||||||
11 | 046D0005 | Replaced by A046D0005 with 1 of A046D0005 | Up to Chassis No. 0050 | ||||||||||
11 | A046D0005 | 1 | 1 | 1 | 1 | Rear Wheel Bearing Housing RH | From Chassis No. 0051 | ||||||
11 | XUFS0512 | 8 | 8 | 8 | 8 | Bolt - Wheel Bearing Housing to Radius Arm | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head | ||||||
11 | L05W0000 | 8 | 8 | 8 | 8 | Washer - Wheel Bearing Housing to Radius Arm | 7/64" thick split washer, 19/32" OD, 5/16" ID | ||||||
12 | 046D0148 | 2 | 2 | 2 | 2 | Spacer - Wheel Bearing to Wheel Bearing | - More Info - | ||||||
12 | 036D6001 | Replaced by 036D6017 | - More Info - | ||||||||||
13 | 036D6017 | 2 | 2 | 2 | 2 | Wheel Bearing - Rear Outer | From Chassis No. 1643 - More Info - | ||||||
14 | 046D6003 | 2 | 2 | 2 | 2 | Wheel Bearing - Rear Inner | - More Info - | ||||||
15 | 054D0171 | 2 | 2 | 2 | 2 | Seal Ring | SB - Service III 1969/20 | ||||||
16 | A054D0186 | 2 | 2 | 2 | 2 | Spacer - Hub to Wheel Bearing | |||||||
17 | 046D0001 | 2 | 2 | 2 | 2 | Rear Hub | |||||||
17 | 036D6002 | 8 | 8 | 8 | 8 | Wheel Stud | Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455" - More Info - | ||||||
18 | 036D6000 | 8 | 8 | 8 | 8 | Wheel Nut | Thread: 3/8-24 | ||||||
19 | 046D6007 | 2 | 2 | 2 | 2 | Hub Retaining Nut | |||||||
20 | 046D6006 | 2 | 2 | 2 | 2 | Lock Washer | |||||||
21 | 046J6023 | 2 | 2 | 2 | 2 | Brake Drum - Rear or 046J6024 | |||||||
21 | 046J6024 | 2 | 2 | 2 | 2 | Brake Drum - Rear or 046J6023 | |||||||
21 | 046D0007 | Replaced by A046D0007 in pairs | Up to Chassis No. 0254 SB - 1968/69 | ||||||||||
22 | A046D0007 | 2 | 2 | 2 | Rear Damper | From Chassis No. 0255 to ? | |||||||
22 | 046D0007 | 2 | Rear Damper | From Chassis No. 1066 to 2583 | |||||||||
22 | A065D0007 | 2 | Rear Damper | From Chassis No. 2584 | |||||||||
22 | 046D6008 | 4 | 4 | 4 | 4 | Bush - Damper | |||||||
23 | 026C0010 | Replaced by 026C0010A in pairs | Up to Chassis No. 0254 - More Info - | ||||||||||
23 | 026C0010A | 2 | 2 | 2 | Road Spring - Rear | From Chassis No. 0255 to ? - More Info - | |||||||
23 | 026C0010A | 2 | Road Spring - Rear | From Chassis No. 1066 to 2583 - More Info - | |||||||||
23 | 065D0010 | 2 | Road Spring - Rear | From Chassis No. 2584 - More Info - | |||||||||
23 | XUFB0840 | 2 | 2 | 2 | 2 | Bolt - Damper to Cross Beam | Up to Chassis No. 0388 - 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | ||||||
23 | XUFB0844 | 2 | 2 | 2 | 2 | Bolt - Damper to Cross Beam | From Chassis No. 0389 | ||||||
23 | YUFN080F | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Damper to Cross Beam | 1/2" x 20 TPI, 3/4" head | ||||||
23 | A08W1606 | 4 | 4 | 4 | 4 | Washer - Damper to Cross Beam | |||||||
23 | XUFB0872 | 2 | 2 | 2 | 2 | Bolt - Damper to Wheel Bearing Housing | Length 4 1/2", thread length 1 1/4", 1/2" x 20 TPI, head 3/4" | ||||||
23 | YUFN080F | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Damper to Wheel Bearing Housing | 1/2" x 20 TPI, 3/4" head | ||||||
23 | A08W1606 | 2 | 2 | 2 | 2 | Washer - Damper to Wheel Bearing Housing | |||||||
23 | A08W2006 | 4 | 4 | 4 | 4 | Washer - Damper to Wheel Bearing Housing | 1/16" thick, 1 1/2" OD, 1/2" ID | ||||||
5 | 046D6001 | 8 | 8 | 8 | 8 | Bush - Lower Link | 29/32" long - More Info - |
