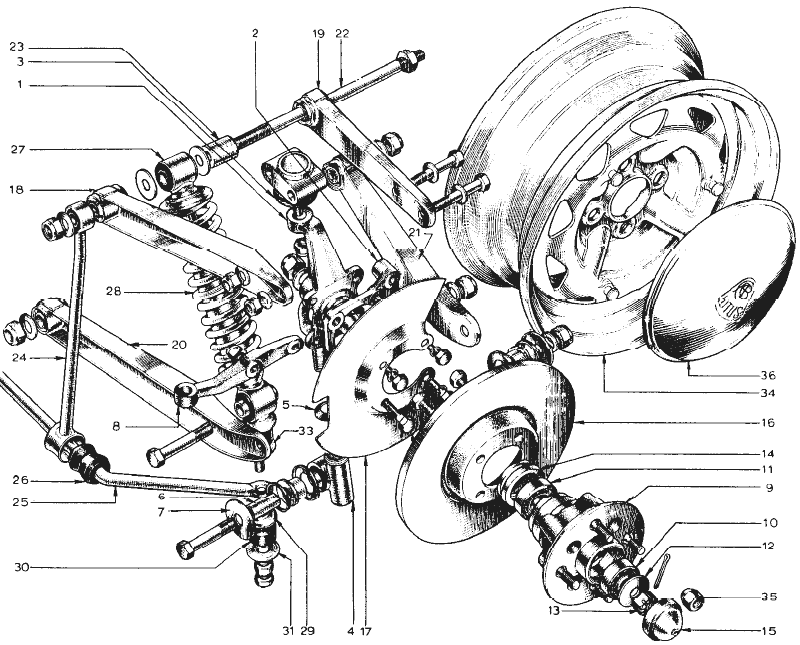

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection CA -- Suspension -- FrontLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (610K) |
Notes Bulletin Reference | |||||||||||||
1 | 036C6005 | 1 | 1 | 1 | 1 | Vertical Link R/H | - More Info - | ||||||
1 | 036C6006 | 1 | 1 | 1 | 1 | Vertical Link L/H | - More Info - | ||||||
1 | 036C6008 | 2 | 2 | 2 | 2 | Stub Axle (Front) | - More Info - | ||||||
1 | 036C6011 | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Stub Axle to Vertical Link or 036C6033 | 1/2" x 20 TPI, 3/4" head | ||||||
1 | 036C6033 | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Stub Axle to Vertical Link or 036C6011 | 1/2" x 20 TPI, 3/4" head | ||||||
1 | 036C6012 | 2 | 2 | 2 | 2 | Washer - Stub Axle to Vertical Link or 036C6034 | |||||||
1 | 036C6034 | 2 | 2 | 2 | 2 | Washer - Stub Axle to Vertical Link or 036C6012 | |||||||
2 | 036C6021 | 1 | 1 | 1 | 1 | Caliper Mounting Plate R/H | |||||||
2 | 036C6022 | 1 | 1 | 1 | 1 | Caliper Mounting Plate L/H | |||||||
3 | 036C6007 | 2 | 2 | 2 | 2 | Ball Joint Assembly Upper | - More Info - | ||||||
3 | YUFN0705 | 2 | 2 | 2 | 2 | Nut - Ball Joint to Vertical Link | |||||||
4 | 036C6025 | 1 | 1 | 1 | 1 | Lower Trunnion Assembly R/H | - More Info - | ||||||
4 | 036C6026 | 1 | 1 | 1 | 1 | Lower Trunnion Assembly L/H | - More Info - | ||||||
5 | 036C6028 | 2 | 2 | 2 | 2 | Seal - Lower Trunnion | |||||||
6 | 036C6031 | 2 | 2 | 2 | 2 | Sleeve - Lower Trunnion | |||||||
6 | 036C6030 | 4 | 4 | 4 | 4 | Seal - Lower Trunnion | |||||||
7 | 036C6032 | 4 | 4 | 4 | 4 | Washer - Lower Trunnion | |||||||
7 | 036C6029 | 4 | 4 | 4 | 4 | Washer - Lower Trunnion | |||||||
7 | 050B6005 | 4 | 4 | 4 | 4 | Bush - Lower Trunnion | |||||||
6 | XUFB0740 | 2 | 2 | 2 | 2 | Bolt - Lower Trunnion to Wishbone | 2 1/2" long, 1 1/8" thread length, 7/16" x 20 TPI, 5/8" head | ||||||
7 | YUFN070F | 2 | 2 | 2 | 2 | Nut - Nyloc or Stover - Lower Trunnion to Wishbone | 7/16" x 20 TPI, 11/16" head | ||||||
7 | A07W1405 | 2 | 2 | 2 | 2 | Washer - Lower Trunnion to Wishbone | |||||||
8 | 036H6000 | 1 | 1 | 1 | 1 | Steering Arm R/H | - More Info - | ||||||
8 | 036H6001 | 1 | 1 | 1 | 1 | Steering Arm L/H | - More Info - | ||||||
9 | 036C6014 | 2 | 2 | 2 | 2 | Front Hub | |||||||
9 | 036C6015 | 8 | 8 | 8 | 8 | Wheel Stud | Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455" - More Info - | ||||||
10 | 036C6016 | 2 | 2 | 2 | 2 | Wheel Bearing - Front Outer | - More Info - | ||||||
11 | 036C6017 | 2 | 2 | 2 | 2 | Wheel Bearing - Front Inner | - More Info - | ||||||
12 | 036C6009 | 2 | 2 | 2 | 2 | D Washer - Hub to Stub Axle | |||||||
13 | 036C6010 | 2 | 2 | 2 | 2 | Castellated Nut - Hub to Stub Axle | |||||||
13 | W0087 | 2 | 2 | 2 | 2 | Split Pin - Hub to Stub Axle | |||||||
13 | 036J6009 | 8 | 8 | 8 | 8 | Bolt - Brake Disc to Front Hub | 9/16" | ||||||
13 | 036J6010 | 8 | 8 | 8 | 8 | Washer - Brake Disc to Front Hub | 9/16" | ||||||
14 | 036C6018 | 2 | 2 | 2 | 2 | Oil Seal - Front Hub | - More Info - | ||||||
15 | 036C6013 | 2 | 2 | 2 | 2 | Grease Cap | |||||||
16 | 036J6008 | 2 | 2 | 2 | 2 | Brake Disc | |||||||
17 | 036C6019 | 1 | 1 | 1 | 1 | Dust Cover - R/H | |||||||
17 | 036C6020 | 1 | 1 | 1 | 1 | Dust Cover - L/H | |||||||
17 | 036C6023 | 2 | 2 | 2 | 2 | Bolt - Dust Cover - Caliper Mounting Plate & Steering Arm to Vertical Link | 9/16" x 2.25" long with 1" thread length | ||||||
17 | 036C6024 | 8 | 8 | 8 | 8 | Bolt - Dust Cover - Caliper Mounting Plate to Vertical Link | 1/2" x 3/4" long (add 1/2" split washer) | ||||||
8 | YUFN060F | 2 | 2 | 2 | 2 | Nut - Steering Arm to Vertical Link | |||||||
18 | 046C0087 | Replaced by A046C0093 with 1 of A046C0094 - 1 of A046C0095 - 1 of A046C0096 - 2 of A046C0719 | Up to Chassis No. 0479 SB - Service 1968/19 SB - Parts 1969/40 | ||||||||||
18 | A046C0093 | 1 | 1 | 1 | 1 | Wishbone - Top Leading L/H | From Chassis No. 0480 | ||||||
18 | 46C0087 | Replaced by A046C0094 with 1 of A046C0093 - 1 of A046C0095 - 1 of A046C0096 - 2 of A046C0710 | Up to Chassis No. 0479 SB - Service 1968/19 SB - Parts 1969/40 | ||||||||||
18 | A046C0094 | 1 | 1 | 1 | 1 | Wishbone - Top Leading R/H | From Chassis No. 0480 | ||||||
19 | A046C0095 | 1 | 1 | 1 | 1 | Wishbone - Top Trailing L/H | From Chassis No. 0480 to ? | ||||||
19 | A065C0095 | 1 | Wishbone - Top Trailing L/H | From Chassis No. 2584 | |||||||||
19 | 046C0088 | Replaced by A046C0096 with 1 of A046C0093 - 1 of A046C0094 - 1 of A046C0095 - 2 of A046C0710 | Up to Chassis No. 0479 SB - Service 1968/19 SB - Parts 1969/40 | ||||||||||
19 | A046C0096 | 1 | 1 | 1 | 1 | Wishbone - Top Trailing R/H | From Chassis No. 0480 to ? | ||||||
19 | A065C0096 | 1 | Wishbone - Top Trailing R/H | From Chassis No. 2584 | |||||||||
20 | A046C0043 | 2 | 2 | 2 | Wishbone - Bottom | Up to Chassis No. | |||||||
20 | A046C0043 | 2 | Wishbone - Bottom | Up to Chassis No. 2583 | |||||||||
20 | A046C0043 | 2 | Wishbone - Bottom | From Chassis No. 2584 | |||||||||
21 | A046C0044 | 2 | 2 | 2 | Wishbone - Bottom | Up to Chassis No. | |||||||
21 | A046C0044 | 2 | Wishbone - Bottom | Up to Chassis No. 2583 | |||||||||
21 | A046C0044 | 2 | Wishbone - Bottom | From Chassis No. 2584 | |||||||||
21 | 036C6004 | 8 | 8 | 8 | 8 | Bush - Wishbone | |||||||
21 | XUFB0840 | 2 | 2 | 2 | Bolt - Damper to Wishbone (Lower) | Up to Chassis No. 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | |||||||
21 | XUFB0840 | 2 | Bolt - Damper to Wishbone (Lower) | Up to Chassis No. 2583 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | |||||||||
21 | XUFB0854 | 2 | Bolt - Damper to Wishbone (Lower) | From Chassis No. 2584 | |||||||||
21 | A08W1606 | 4 | 4 | 4 | 4 | Washer - Damper to Wishbone (Lower) | |||||||
21 | YUFN080F | 4 | 4 | 4 | 4 | Nut - Nyloc or Stover - Damper to Wishbone (Lower) | 1/2" x 20 TPI, 3/4" head | ||||||
21 | A08W2006 | 4 | Washer | 1/16" thick, 1 1/2" OD, 1/2" ID | |||||||||
21 | XUFB0536 | 4 | 4 | 4 | 4 | Bolt - Wishbone to Ball Joint | 1/2" head, 2 7/32" long,15/16" threads, 9/32" OD | ||||||
21 | YUFN050P | 4 | 4 | 4 | 4 | Nut - Nyloc - Wishbone to Ball Joint | |||||||
21 | A05W1007 | 8 | 8 | 8 | 8 | Washer - Wishbone to Ball Joint | 1/16" thick, 5/8" OD and 9/32" ID | ||||||
22 | 046C0092 | 2 | 2 | Stud - Wishbone (Anti roll bar Link and Damper to Chassis) | Up to Chassis No. 0644 | ||||||||
22 | A046C0092 | 2 | Stud - Wishbone (Anti roll bar Link and Damper to Chassis) | From Chassis No 0645 | |||||||||
22 | A046C0092 | 2 | Stud - Wishbone (Anti roll bar Link and Damper to Chassis) | From Chassis No. 1066 | |||||||||
22 | B046C0092 | 2 | Stud - Wishbone (Anti roll bar Link and Damper to Chassis) | From Chassis No. 2584 | |||||||||
22 | YUFN080F | 6 | 6 | 6 | 6 | Nut - Nyloc or Stover - Wishbone (Anti roll Bar Link and Damper to Chassis) | 1/2" x 20 TPI, 3/4" head | ||||||
22 | 128F | 6 | 6 | 6 | 6 | Washer - Wishbone (Anti roll Bar Link and Damper to Chassis) | |||||||
23 | W0216 | 2 | 2 | 2 | 2 | Spacer Bush - Service Option | Up to Chassis No. ? | ||||||
24 | 046C0005 | 2 | 2 | 2 | 2 | Link - Anti Roll to Chassis | Up to Chassis No. ? | ||||||
24 | 054C0005 | 2 | 2 | 2 | 2 | Link - Anti Roll Bar to Chassis | From Chassis No. ? | ||||||
24 | 046C6001 | 2 | 2 | 2 | 2 | Bush - Anti Roll Bar Link | |||||||
25 | 046C0003 | 1 | 1 | 1 | 1 | Anti Roll bar | Up to Chassis No. ? - More Info - | ||||||
25 | A046C0003 | 1 | 1 | 1 | 1 | Anti Roll Bar | From Chassis No. ? - More Info - | ||||||
26 | 036C6027 | 2 | 2 | 2 | 2 | Bush - Anti Roll Bar to Link | |||||||
26 | 046C0710 | Replaced by A046C0710 in pairs | Up to Chassis No. 0479 | ||||||||||
27 | A046C0710 | 2 | 2 | 2 | Damper and Spring Assembly | From Chassis No 0480 to ? | |||||||
27 | A046C0710 | 2 | Damper and Spring Assembly | Up to Chassis No. 2583 | |||||||||
27 | B065C0730 | 2 | Damper and Spring Assembly | From Chassis No. 2584 | |||||||||
28 | 046C0010 | Replaced by A046C0010 in pairs | Up to Chassis No. 0479 - More Info - | ||||||||||
28 | A046C0010 | 2 | 2 | 2 | Spring - Front | From Chassis No. 0480 to ? - More Info - | |||||||
28 | A046C0010 | 2 | Spring - Front | Up to Chassis No. 2583 - More Info - | |||||||||
28 | B065C0010 | 2 | Spring - Front | From Chassis No. 2584 - More Info - | |||||||||
29 | 036C6000 | 2 | 2 | 2 | 2 | Plate - Damper to Anti Roll Bar | |||||||
30 | 046C6000 | 4 | 4 | 4 | 4 | Rubber - Damper to Anti Roll Bar | |||||||
31 | 036C6003 | 2 | 2 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Lower) | |||||||
33 | 036C6001 | 2 | 2 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Upper) | |||||||
33 | AFUN060F | 2 | 2 | 2 | 2 | Nut - Damper to Anti Roll Bar | |||||||
33 | AUFN060H | 2 | 2 | 2 | 2 | Nut - Damper to Anti Roll Bar | |||||||
33 | A065C0112 | Bush (S2 & S2 Federal As Required) | |||||||||||
34 | A026G0001 | 5 | 5 | 5 | 5 | Road Wheel | |||||||
35 | 036D6000 | 8 | 8 | 8 | 8 | Wheel Nut | Thread: 3/8-24 | ||||||
36 | 026G0002 | 4 | 4 | 4 | 4 | Hub Cap |
