LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BJ -- Body -- DashLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (235K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

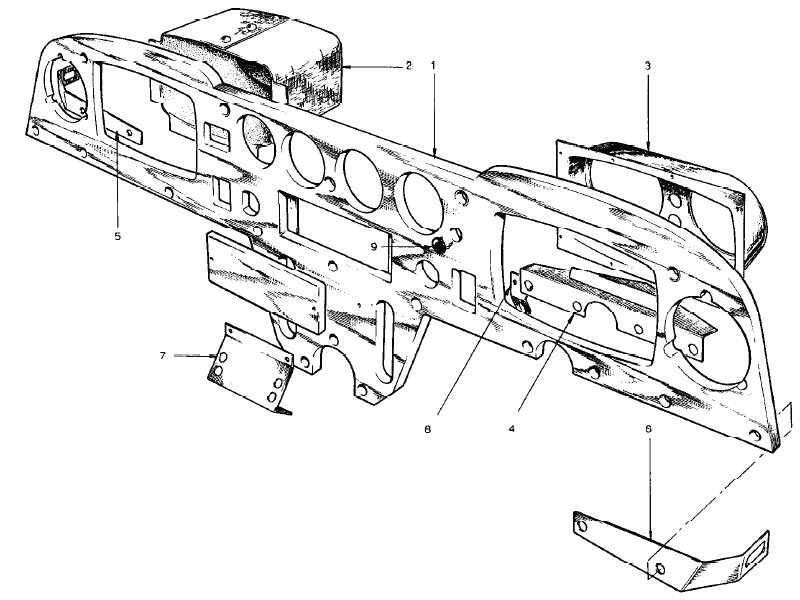

| 1 | 046B0237 | 1 | + | Facia Panel | Up to Chassis No. 0299 excluding 0270 - 0271 and 0272 - More Info - | ||||||||
| 1 | A046B0237 | 1 | + | Facia Panel | From Chassis No. 0299 including 0270 - 0271 and 0272 - More Info - | ||||||||
| 1 | 046B1071 | 1 | 1 | Instrument Mounting Panel | |||||||||
| 1 | 054B0238 | 1 | + | Facia panel | Up to Chassis No. 1172 - More Info - | ||||||||
| 1 | 054B0237 | 1 | + | Facia Panel | Up to Chassis No. 1386 - More Info - | ||||||||
| 1 | 054B0238A | 1 | + | Facia Panel | From Chassis No. 1173 - More Info - | ||||||||
| 1 | 054B0237A | 1 | + | Facia Panel - except Sweden 1970 | From Chassis No. 1387 - More Info - | ||||||||
| 1 | A054B0237 | 1 | + | Facia Panel | From Chassis No. 1066 - More Info - | ||||||||
| 1 | A054B0237 | 1 | + | Facia Panel without hazard warning and brake fail marking - Sweden only | From January 1970 - More Info - | ||||||||
| 2 | 054B0195 | 1 | 1 | Glove Box | |||||||||
| 3 | 054B1408 | 1 | 1 | Instrument Binnacle | |||||||||
| 3 | RWDS0406 | 17 | 17 | Screw - Instrument binnacle and Clove Box to Facia | |||||||||
| 4 | 054H0031 ? | 1 | 1 | Support Bracket - Steering Column | |||||||||
| 4 | A03W0806 | 2 | 2 | Washer - Support Bracket to Facia | |||||||||
| 4 | RWDS0406 | 2 | 2 | Screw - Support Bracket to Facia | |||||||||
| 5 | 054B1459 | 1 | 1 | Facia Support Bracket | Up to Chassis No. ? | ||||||||
| 5 | A054B1459 | 1 | 1 | Facia Support Bracket | From Chassis No. ? | ||||||||
| 6 | 054B1460 | 1 | 1 | Facia Support Bracket | Up to Chassis No. ? | ||||||||
| 6 | A054B1460 | 1 | 1 | Facia Support Bracket | From Chassis No. ? | ||||||||
| 6 | AUFN030F | 4 | 4 | Nut - Support Bracket/Facia Rail to Facia panel | |||||||||
| 6 | A03W0806 ? | 4 | 4 | Washer - Support Bracket/Facia Rail to Facia panel | |||||||||
| 7 | 054B1462 | 1 | 1 | Mounting Bracket - Window Switches and Ashtray | |||||||||
| 7 | 433B ? | 4 | 4 | Rivet - Mounting Bracket to Tunnel Top | |||||||||
| 8 | 054B1463 | 1 | Mounting Bracket - Speedometer Trip Cable | ||||||||||
| 8 | 054B1539 | 1 | Mounting Bracket - Speedometer Trip Cable | ||||||||||
| 9 | 036B6114 | 2 | Blanking Gromet | ||||||||||
| 9 | 443B | 1 | Blanking Gromet (Germany - Italy - Switzerland and Japan) | ||||||||||
| 9 | 050B6155 | 1 | Blanking Gromet | ||||||||||
| 9 | KSTS0612 | 10 | 10 | Screw - Facia Mounting | |||||||||
| 9 | 054B6033 | 4 | 4 | Screw - Facia Mounting | |||||||||
| 9 | W0092 | 10 | 10 | Cup Washer - Facia Mounting | |||||||||
| 9 | XUFS0412 | 2 | 2 | Screw - Facia Mounting | |||||||||
| 9 | YUFN040F | 2 | 2 | Nut - Facia Mounting | |||||||||
| 9 | A04W0904 | 2 | 2 | Washer - Facia Mounting | |||||||||
| 9 | F04W0805 | 2 | 2 | Washer Fibre - Facia Mounting | |||||||||
| 9 | 054B1345 | 2 | 2 | Mounting Angle - Facia Mounting | |||||||||
| 9 | A046B0197 | 1 | Glove Box Lid | ||||||||||
| 9 | 046B6126 | 1 | Hinge - Glove Box | ||||||||||
| 9 | 046B6122 | 1 | Check Strap | ||||||||||
| 9 | 036B6033 | 6 | Rivet - Hinge to Facia | ||||||||||
| 9 | KSPS0306 | 6 | Screw - Hinge to Lid | ||||||||||
| 9 | KUFS0616 | 10 | Screw - Facia Mounting |
