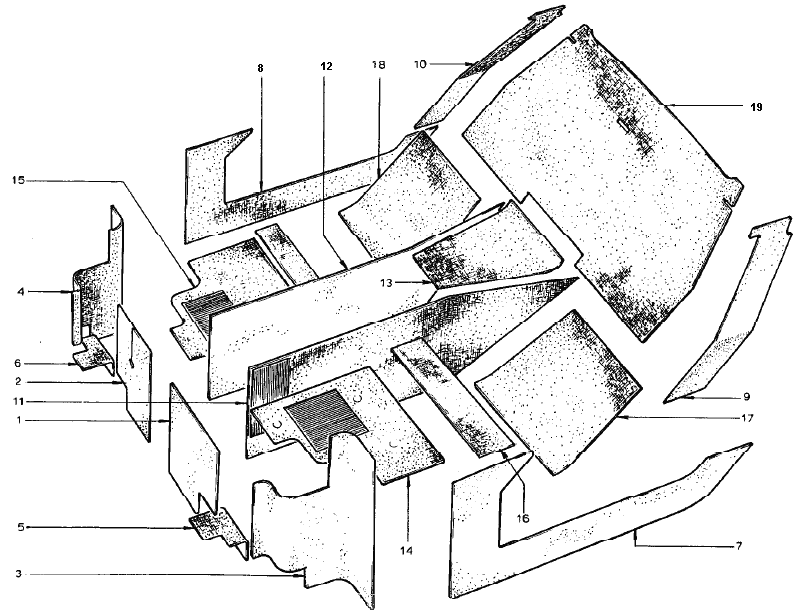

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BE -- Body -- CarpetLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (145K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046B0157 | 1 | 1 | Carpet - Toeboard/Footbox LH | |||||||||
| 1 | A054B0157 | 1 | 1 | Carpet - Toeboard/Footbox LH | |||||||||
| 2 | 046B0158 | 1 | 1 | Carpet - Toeboard/Footbox RH | |||||||||
| 2 | A054B0158 | 1 | 1 | Carpet - Toeboard/Footbox RH | |||||||||
| 3 | A046B0139 | 1 | 1 | 1 | 1 | Carpet - Wheelarch LH | |||||||
| 4 | A046B0140 | 1 | 1 | 1 | 1 | Carpet - Wheelarch RH | |||||||
| 5 | A054B1645 | 1 | 1 | + | Carpet - Footbox Filler Piece LH - RHD | ||||||||
| 5 | A054B1643 | 1 | 1 | + | Carpet - Footbox Filler Piece LH - LHD | ||||||||
| 6 | A054B1646 | 1 | 1 | + | Carpet - Footbox Filler Piece RH - RHD | ||||||||
| 6 | A054B1644 | 1 | 1 | + | Carpet - Footbox Filler Piece RH - LHD | ||||||||
| 7 | 046B6088 | 1 | 1 | Carpet - Door Surround LH | |||||||||
| 7 | A054B0575 | 1 | 1 | Carpet - Door Surround LH | |||||||||
| 8 | 046B6087 | 1 | 1 | Carpet - Door Surround RH | |||||||||
| 8 | A054B0576 | 1 | 1 | Carpet - Door Surround RH | |||||||||
| 9 | A054B1825 | 1 | 1 | Carpet - Doorpost LH | |||||||||
| 10 | A054B1826 | 1 | 1 | Carpet - Doorpost RH | |||||||||
| 11 | 046B0143 | 1 | 1 | Carpet - Tunnel Side LH | |||||||||
| 11 | 054B0143 | 1 | 1 | Carpet - Tunnel Side LH | |||||||||
| 12 | 046B0144 | 1 | 1 | Carpet- Tunnell Side RH | |||||||||
| 12 | 054B0144 | 1 | 1 | Carpet- Tunnell Side RH | |||||||||
| 13 | A054B1636 | 1 | 1 | Carpet - Tunnel Top | |||||||||
| 14 | A065B2049 | 1 | 1 | 1 | 1 | + | Carpet - Floor LH | ||||||
| 14 | A065B2053 | 1 | 1 | 1 | 1 | + | Carpet - Floor LH | ||||||
| 15 | A065B2050 | 1 | 1 | 1 | 1 | + | Carpet - Floor RH | ||||||
| 15 | A065B2055 | 1 | 1 | 1 | 1 | + | Carpet - Floor RH | ||||||
| 16 | A065B2052 | 1 | 1 | 1 | 1 | Carpet - Floor Underseat | |||||||
| 17 | A054B1639 | 1 | 1 | Carpet - Bulkhead Lower LH | |||||||||
| 18 | A054B1640 | 1 | 1 | Carpet - Bulkhead Lower LH | |||||||||
| 19 | A054B1139 | 1 | 1 | Carpet - Bulkhead Upper |
