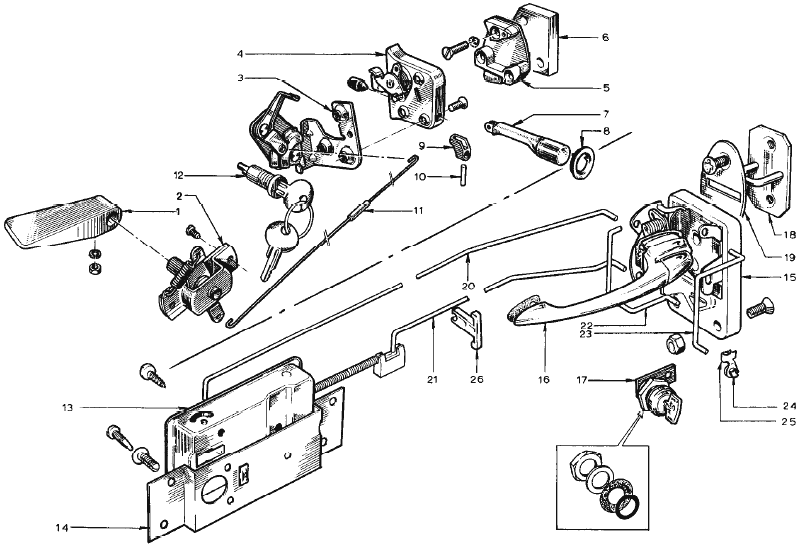

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BD -- Body -- Door HardwareLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (365K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046B6065 | 1 | 1 | Door Handle - Interior LH | - More Info - | ||||||||
| 1 | 046B6065 | 1 | Door Handle - Interior LH | Up to Chassis No. 1065 - More Info - | |||||||||
| 1 | 046B6066 | 1 | 1 | Door Handle - Interior RH | - More Info - | ||||||||
| 1 | 046B6066 | 1 | Door Handle - Interior RH | Up to Chassis No. 1065 - More Info - | |||||||||
| 2 | 046B6067 | 1 | 1 | Remote Control (Inside Door Handle) LH | |||||||||
| 2 | 046B6067 | 1 | Remote Control (Inside Door Handle) LH | Up to Chassis No. 1065 | |||||||||
| 2 | 046B6068 | 1 | 1 | Remote Control (Inside Door Handle) RH | |||||||||
| 2 | 046B6068 | 1 | Remote Control (Inside Door Handle) RH | Up to Chassis No. 1065 | |||||||||
| 3 | 046B6055 | 1 | 1 | Door Lock LH | |||||||||
| 3 | 046B6055 | 1 | Door Lock LH | Up to Chassis No. 1065 | |||||||||
| 3 | 046B6056 | 1 | 1 | Door Lock RH | |||||||||
| 3 | 046B6056 | 1 | Door Lock RH | Up to Chassis No. 1065 | |||||||||
| 4 | 046B6053 | 1 | 1 | Door Lock Striker LH | - More Info - | ||||||||
| 4 | 046B6053 | 1 | Door Lock Striker LH | Up to Chassis No. 1065 - More Info - | |||||||||
| 4 | 046B6054 | 1 | 1 | Door Lock Striker RH | - More Info - | ||||||||
| 4 | 046B6054 | 1 | Door Lock Striker RH | Up to Chassis No. 1065 - More Info - | |||||||||
| 5 | 046B6051 | 1 | 1 | Catch Plate LH | - More Info - | ||||||||
| 5 | 046B6051 | 1 | Catch Plate LH | Up to Chassis No. 1065 - More Info - | |||||||||
| 5 | 046B6052 | 1 | 1 | Catch Plate RH | - More Info - | ||||||||
| 5 | 046B6052 | 1 | Catch Plate RH | Up to Chassis No. 1065 - More Info - | |||||||||
| 6 | 046B1095 | 2 | 2 | Tapping Plate | |||||||||
| 6 | 046B1095 | 2 | Tapping Plate | Up to Chassis No. 1065 | |||||||||
| 7 | 046B6058 | 1 | 1 | Push Button LH | |||||||||
| 7 | 046B6058 | 1 | Push Button LH | Up to Chassis No. 1065 | |||||||||
| 7 | 046B6059 | 1 | 1 | Push Button RH | |||||||||
| 7 | 046B6059 | 1 | Push Button RH | Up to Chassis No. 1065 | |||||||||
| 8 | 046B6060 | 2 | 2 | Escutcheon | - More Info - | ||||||||
| 8 | 046B6060 | 2 | Escutcheon | Up to Chassis No. 1065 - More Info - | |||||||||
| 9 | 046B6061 | 2 | 2 | Lock Tab | |||||||||
| 9 | 046B6061 | 2 | Lock Tab | Up to Chassis No. 1065 | |||||||||
| 10 | 046B6062 | 2 | 2 | Tension Pin | |||||||||
| 10 | 046B6062 | 2 | Tension Pin | Up to Chassis No. 1065 | |||||||||
| 11 | 046B1129 | 2 | 2 | Remote Control (Inside Door Handle) Rod | |||||||||
| 11 | 046B1129 | 2 | Remote Control (Inside Door Handle) Rod | Up to Chassis No. 1065 | |||||||||
| 12 | 046B6064 | 2 | 2 | Lock Barrel | |||||||||
| 12 | 046B6064 | 2 | Lock Barrel | Up to Chassis No. 1065 | |||||||||
| 13 | 046B6050 | 1 | 1 | Remote Control (Inside Door Handle) LH | From Chassis No. 1066 | ||||||||
| 13 | 046B6051 | 1 | 1 | Remote Control (Inside Door Handle) RH | From Chassis No. 1066 | ||||||||
| 14 | 054B1629 | 1 | 1 | Mounting Bracket - Remote Control (Inside Door Handle) LH | From Chassis No. 1066 | ||||||||
| 14 | 054B1630 | 1 | 1 | Mounting Bracket - Remote Control (Inside Door Handle) RH | From Chassis No. 1066 | ||||||||
| 14 | 036B6123 | 4 | 4 | Tappit - Mounting Bracket to Door Sill | From Chassis No. 1066 | ||||||||
| 14 | RSTS100B | 6 | 6 | Screw - Remote Control (Inside Door Handle) to Mounting Bracket | From Chassis No. 1066 | ||||||||
| 14 | 046B6126 | 6 | 6 | Nut - Remote Control (Inside Door Handle) to Mounting Bracket | From Chassis No. 1066 | ||||||||
| 15 | 036B6048 | 1 | 1 | Door Lock LH | From Chassis No. 1066 | ||||||||
| 15 | 036B6049 | 1 | 1 | Door Lock RH | From Chassis No. 1066 | ||||||||
| 15 | KUFS0416 | 8 | 8 | Screw - Door Lock to Door | From Chassis No. 1066 | ||||||||
| 15 | YUFN040F | 8 | 8 | Nut - Door Lock to Door | From Chassis No. 1066 | ||||||||
| 16 | 036B6052 | 1 | 1 | Door Handle - Exterior LH | From Chassis No. 1066 - More Info - | ||||||||
| 16 | 036B6149 | 2 | 2 | Door Handle to Door Gasket - Small | From Chassis No. 1066 | ||||||||
| 16 | 036B6095 | 2 | 2 | Door Handle to Door Gasket - Large | From Chassis No. 1066 | ||||||||
| 16 | XUFS1010 | 2 | 2 | Screw - Door Handle to Door | From Chassis No. 1066 | ||||||||
| 16 | A03W0605 | 2 | 2 | Washer - Door Handle to Door | From Chassis No. 1066 | ||||||||
| 17 | A036B6191 | 2 | 2 | Private Door Lock LH and RH | From Chassis No. 1066 | ||||||||
| 17 | LUFN120F | 2 | 2 | Nut - Private Lock Mounting | From Chassis No. 1066 | ||||||||
| 17 | 036B1410 | 2 | 2 | Washer - Private Lock Mounting | From Chassis No. 1066 | ||||||||
| 17 | A036B1884 | 2 | 2 | Friction Washer | From Chassis No. 1066 | ||||||||
| 17 | 036B6096 | 2 | 2 | Door Lock Gasket | From Chassis No. 1066 | ||||||||
| 18 | 036B6054 | 2 | 2 | Striker Plate | From Chassis No. 1066 | ||||||||
| 19 | 036B6055 | 2 | 2 | Cover Plate | From Chassis No. 1066 | ||||||||
| 19 | KUFS0416 | 4 | 4 | Screw - Striker Mounting | From Chassis No. 1066 | ||||||||
| 20 | 054B1411 | 1 | 1 | Locking Rod - Remote Control (Inside Door Handle) to Lock LH | From Chassis No. 1066 | ||||||||
| 20 | 054B1412 | 1 | 1 | Locking Rod - Remote Control (Inside Door Handle) to Lock RH | From Chassis No. 1066 | ||||||||
| 21 | 054B1413 | 1 | 1 | Wire - Remote Control (Inside Door Handle) to Lock LH | From Chassis No. 1066 | ||||||||
| 21 | 054B1414 | 1 | 1 | Wire - Remote Control (Inside Door Handle) to Lock RH | From Chassis No. 1066 | ||||||||
| 22 | 054B1415 | 1 | 1 | Wire - Door Handle to Lock LH | From Chassis No. 1066 | ||||||||
| 22 | 054B1416 | 1 | 1 | Wire - Door Handle to Lock RH | From Chassis No. 1066 | ||||||||
| 23 | 054B1423 | 1 | 1 | Wire - Private Lock to Lock LH | From Chassis No. 1066 | ||||||||
| 23 | 054B1424 | 1 | 1 | Wire - Private Lock to Lock RH | From Chassis No. 1066 | ||||||||
| 24 | 036B6056 | 12 | 12 | Bush - Remote Control (Inside Door Handle) Wire Fixing | From Chassis No. 1066 | ||||||||
| 25 | 036B6098 | 12 | 12 | Fastener - Remote Control (Inside Door Handle) Wire Fixing | From Chassis No. 1066 | ||||||||
| 26 | 036B6155 | 4 | 4 | Anti-rattle Clip | From Chassis No. 1066 | ||||||||
| 16 | 036B6053 | 1 | 1 | Door Handle - Exterior RH | From Chassis No. 1066 - More Info - |
