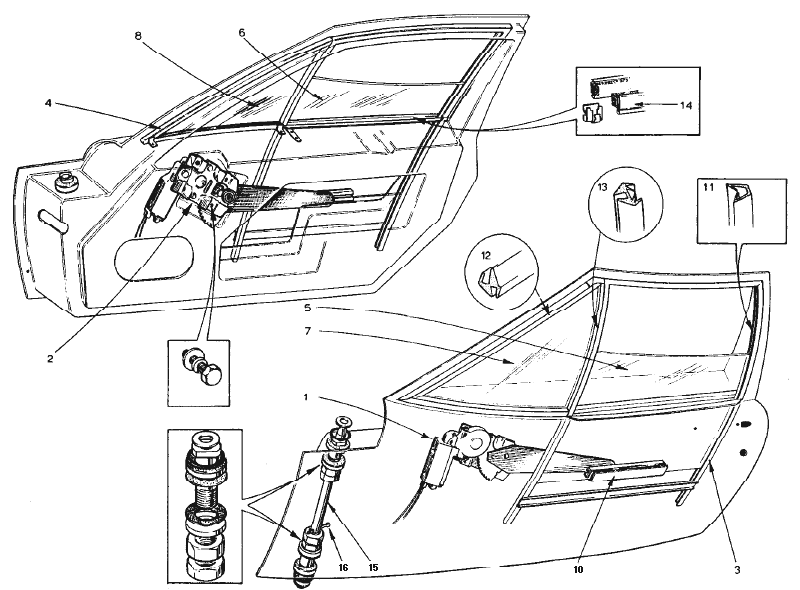

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BC -- Body -- Door Windows, Motors and HingesLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (520K) |
Notes Bulletin Reference | |||||||||||||
1 | 054B1495 | 1 | 1 | Window Lift Motor - LH | From Chassis No. 0645 - More Info - | ||||||||
2 | 054B1496 | 1 | 1 | Window Lift Motor - RH | From Chassis No. 0645 - More Info - | ||||||||
1 | XUFB 0418 | 8 | 8 | Bolt - Window Lift Motor to Door | From Chassis No. 0645 | ||||||||
1 | A04W1606 | 8 | 8 | Washer - Window Lift Motor to Door | From Chassis No. 0645 | ||||||||
1 | L04W0000 | 8 | 8 | Washer - Window Lift Motor to Door | From Chassis No. 0645 | ||||||||
1 | 046B6015 | 2 | 2 | Side Window Surround | Up to Chassis No. 0644 | ||||||||
1 | 046B0659 | 1 | Dividing Channel Side Window LH | From Chassis No. 0300 - including 0270 - 0271 & 0272 - to 0644 | |||||||||
1 | 046B0660 | 1 | Dividing Channel Side Window LH | From Chassis No. 0300 - including 0270 - 0271 & 0272 - to 0644 | |||||||||
1 | MUFS0408 | 4 | Screw - Dividing Channel Mounting | From Chassis No. 0300 - including 0270 - 0271 & 0272 - to 0644 | |||||||||
1 | YUFN040H | 4 | Nut - Dividing Channel Mounting | From Chassis No. 0300 - including 0270 - 0271 & 0272 - to 0644 | |||||||||
1 | A02W0603 | 4 | Washer - Dividing Channel Mounting | From Chassis No. 0300 - including 0270 - 0271 & 0272 - to 0644 | |||||||||
3 | 054B0791 | 1 | 1 | Window Frame - LH | From Chassis No. 0645 | ||||||||
3 | 054B0792 | 1 | 1 | Window Frame - RH | From Chassis No. 0645 | ||||||||
4 | 054B0789 ? | 1 | 1 | Quarter Light Frame LH | From Chassis No. 0645 | ||||||||
4 | 054B0790 | 1 | 1 | Quarter Light Frame rH | From Chassis No. 0645 | ||||||||
4 | 036B6033 | 14 | 14 | Rivet - Window Frames to Door | From Chassis No. 0645 | ||||||||
4 | PUCS0408 | 4 | 4 | Screw - Window Frames to Door | From Chassis No. 0645 | ||||||||
4 | A02W0603 | 4 | 4 | Washer - Window Frames to Door | From Chassis No. 0645 | ||||||||
4 | YUNC040F | 4 | 4 | Nut - Window Frames to Door | From Chassis No. 0645 | ||||||||
5 | 046B0667 | 1 | Side Window LH | Up to Chassis No. 0299 excluding 0270 - 0271 and 0272 | |||||||||
5 | A046B0667 | 1 | Side Window LH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | |||||||||
5 | 054B0667 | 1 | 1 | Side Window LH | From Chassis No. 0645 | ||||||||
5 | 054B0667A | Side Window LH Shaded Optional | |||||||||||
5 | 046B0668 | 1 | Side Window RH | Up to Chassis No. 0299 excluding 0270 - 0271 and 0272 | |||||||||
5 | A046B0668 | 1 | Side Window RH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | |||||||||
6 | 054B0668 | 1 | 1 | Side Window RH | From Chassis No. 0645 | ||||||||
6 | 054B0668A | Side Window RH Shaded Optional | |||||||||||
6 | 046B0669 | 1 | Quarter Light Glass | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | |||||||||
6 | 054B0669 | 1 | 1 | Quarter Light Glass replaced by 054B0669A | From Chassis No. 0645 to 1479 | ||||||||
7 | 054B0669A | 1 | 1 | Quarter Light Glass LH | From Chassis No. 1480 | ||||||||
7 | B054B0669 | Quarter Light Glass LH Shaded optional | |||||||||||
7 | 046B0670 | 1 | Quarter Light Glass | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 0644 | |||||||||
8 | 054B0670 | Quarter Light Glass replaced by 054B0670A | From Chassis No. 0645 to 1479 | ||||||||||
8 | 054B0670A | 1 | 1 | Quarter Light Glass RH | From Chassis No. 1480 | ||||||||
8 | B054B0670 | Quarter Light Glass RH Shaded Optional | |||||||||||
10 | 054B0091 | 2 | 2 | Channel - Window Lift | |||||||||
10 | 054B6108 | 2 | 2 | Evermeal Strip - Window Lift Channel | |||||||||
10 | 046B6117 | 1 | Side Window Channel LH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 1065 | |||||||||
10 | 046B6118 | 1 | Side Window Channel RH | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 1065 | |||||||||
11 | 054B6023 | 1 | 1 | Side Window Channel | From Chassis No. 1066 | ||||||||
12 | A054B1899 | 1 | 1 | Seal Channel - Quarter Light - Front & Base | From Chassis No. 1066 | ||||||||
12 | 046B6119 | 2 | Seal Channel - Quarter Light | From Chassis No. 0300 including 0270 - 0271 and 0272 - to 1065 | |||||||||
13 | A054B1898 | 1 | 1 | Seal Channel - Quarter Light to Dividing Channel | From Chassis No. 1066 | ||||||||
14 | 050B6011 ? | 4 | 4 | Weather Strip - Side Window | From Chassis No. 1066 | ||||||||
14 | 054B6106 | 16 | 16 | Clip - Weatherstrip to Frame | From Chassis No. 1066 | ||||||||
15 | 046B0073 | 2 | 2 | 2 | 2 | Pivot Pin - Door Hinge | |||||||
15 | A054B2000 | 4 | 4 | 4 | 4 | Brush - Door Hinge | |||||||
15 | 046B6024 | 4 | 4 | 4 | 4 | O Ring - Door Hinge | |||||||
15 | AUFN120H | 8 | 8 | 8 | 8 | Nut - Door Hinge | |||||||
15 | 128D | 8 | 8 | 8 | 8 | Washer - Door Hinge | |||||||
15 | 128CA | Washer - Door Hinge (All - As Required) | |||||||||||
15 | W015 | 12 | 12 | 12 | 12 | Abrasive Washer - Door Hinge | |||||||
16 | 054B6105 | 2 | 2 | 2 | 2 | Split Pin - Door Hinge | |||||||
16 | 46B1370 ? | 4 | Catch - Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | W0135 | 4 | Screw - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | 046B6114 | 4 | Domed Nut - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | A03@0605 | 4 | Washer - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | 046B6115 | 8 | Washer - Fibre - Catch to Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | 036B6007 | 4 | Snap Sac - Trim Panel Mounting | From Chassis No. 0300 including 0270 - 0271 and 0272 - More Info - | |||||||||
16 | 046B1361 | 4 | Carrier Bracket - Side Window | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | 050B6003 ? | 4 | Rivet - Carrier Bracket to Body | From Chassis No. 0300 including 0270 - 0271 and 0272 | |||||||||
16 | A03W0605 | 4 | Washer - Carrier Bracket to Body | From Chassis No. 0300 including 0270 - 0271 and 0272 |
