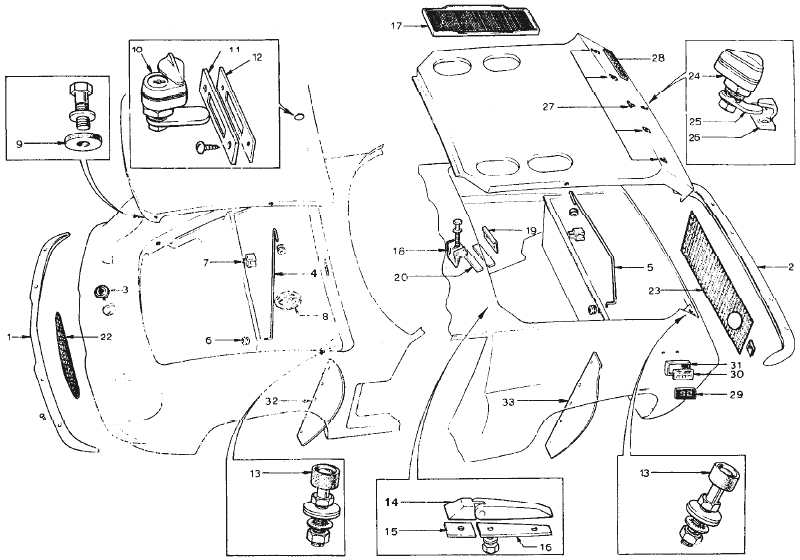

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BB -- Body -- Body AttachmentsLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (500K) |
Notes Bulletin Reference | |||||||||||||
1 | 046B6011 | 1 | 1 | 1 | 1 | Front Bumper | - More Info - | ||||||
2 | 046B6012 | 1 | 1 | 1 | 1 | Rear Bumper | - More Info - | ||||||
2 | 046B6013 | 2 | 2 | 2 | 2 | Blanking Rivet | |||||||
2 | A050B6033 | 8 | 8 | 8 | 8 | Bumper Bolt - Bumper Mounting | - More Info - | ||||||
2 | 116AA | 8 | 8 | 8 | 8 | Fibre Washer - Bumper Mounting | - More Info - | ||||||
2 | A0521007 | 8 | 8 | 8 | 8 | Washer - Bumper Mounting | |||||||
2 | S05W0000 | 8 | 8 | 8 | 8 | Washer - Spring - Bumper Mounting | |||||||
2 | 214A | 8 | 8 | 8 | 8 | Nut - Bumper Mounting | |||||||
3 | 026B0269 | 1 | 1 | 1 | 1 | Badge - Yellow and green | |||||||
3 | 2BAN000H | 2 | 2 | 2 | 2 | Nut - Badge Mounting | |||||||
3 | A03W0806 | 2 | 2 | 2 | 2 | Washer - Badge Mounting | |||||||
3 | 046B1131 | 1 | 1 | Stay - Front Lid Support | |||||||||
4 | 054B1535 | 1 | 1 | Stay - Front Lid Support | |||||||||
5 | 046B1131 | 1 | 1 | 1 | 1 | Stay - Engine Compartment Lid Support | |||||||
5 | 046B6048 | 4 | 4 | 4 | 4 | Gromet - Stay Pivot | |||||||
6 | 036B6010 | 4 | 4 | 4 | 4 | Gromet - Stay Pivot | |||||||
6 | 046B6023 | 2 | 2 | Clip - Stay Stowage | |||||||||
7 | 054B1693 | 2 | 2 | 2 | 2 | Clip - Stay Stowage | |||||||
7 | 046B1289 | 1 | 1 | Strip - Lid Periphery Sealing | |||||||||
7 | A036B6213 | 1 | 1 | 1 | 1 | Strip - Lid Periphery Sealing | |||||||
8 | 026B0371 | 1 | 1 | Gromet - Handbrake Fixing Access | - More Info - | ||||||||
8 | 054J6005 | 1 | Gromet - Front Wishbone Access | - More Info - | |||||||||
8 | 036M6289 | 1 | 1 | Gromet - Front Wishbone Access | - More Info - | ||||||||
9 | 054B6107 | 2 | 2 | 2 | 2 | Rubber Washer - Bonnet Fixing | 1" OD x 11/32" ID x 1/8" Thick - More Info - | ||||||
9 | XUFB0528 | 2 | 2 | 2 | 2 | Bolt - Bonnet Fixing | |||||||
9 | A05W1007 | 2 | 2 | 2 | 2 | Washer - Bonnet Fixing | 1/16" thick, 5/8" OD and 9/32" ID | ||||||
9 | 046B6043 | 2 | Oddie fastener | ||||||||||
9 | 046B6044 | 2 | Mounting Plate - Oddie Fastener | ||||||||||
9 | 046B6045 | 2 | Clip - Oddie Fastener | ||||||||||
9 | 036B6033 | 6 | Rivet - Oddie Fastener | ||||||||||
10 | 046B6112 | 1 | 1 | 1 | Lock - Bonnet | - More Info - | |||||||
10 | 046B1362 | 1 | 1 | 1 | Tab - Bonnet Lock | ||||||||
11 | 046B1368 | 1 | 1 | 1 | Plate - Bonnet Lock | ||||||||
12 | 046B1369 | 1 | 1 | 1 | Tapping Plate | ||||||||
12 | KSTS1016 | 2 | 2 | 2 | Screw - tapping Plate | ||||||||
13 | 036B6030 | 4 | 4 | 4 | Buffer - Bonnet and Engine Compartment Lids | 25/32" OD x 9/16" long rubber | |||||||
13 | XUFB0520 | 2 | 2 | 2 | Bolt - Buffer Bonnet | 1 7/32" shaft, 15/16 thread length, 5/16" x 24 TPI threads | |||||||
13 | XUFB0524 | 2 | 2 | 2 | Bolt - Engine Compartment Lid Buffer | ||||||||
13 | A05W1606 | 8 | 8 | 8 | Washer - Buffer Mounting | 3/32" thick, 7/8" OD, 13/32" ID | |||||||
13 | L05W0000 | 4 | 4 | 4 | Washer - Buffer Mounting | 7/64" thick split washer, 19/32" OD, 5/16" ID | |||||||
13 | AUFN050H | 8 | 8 | 8 | Nut - Buffer Mounting | ||||||||
14 | 036B6006 | 2 | 2 | 2 | 2 | Hinge - Engine Compartment Lid | |||||||
15 | A036B1111 | 2 | 2 | 2 | 2 | Engine Compartment Lid Hinge Front Gasket | |||||||
16 | A036B1112 | 2 | 2 | 2 | 2 | Engine Compartment Lid Hinge Rear Gasket | |||||||
16 | AUFN040F | 4 | 4 | 4 | 4 | Nut - Hinge to Lid | 7/16" head, 1/4" x 28 TPI | ||||||
16 | A04W1606 | 4 | 4 | 4 | 4 | Washer - Hinge to Lid | |||||||
16 | LUFN050F | 2 | 2 | 2 | 2 | Nut - Hinge to Body | 5/16" x 24 TPI, 1/2" head | ||||||
16 | A05W1606 | 2 | 2 | 2 | 2 | Washer - Hinge to Body | 3/32" thick, 7/8" OD, 13/32" ID | ||||||
17 | 046B1119 | 2 | 2 | 2 | 2 | Grille - Vent Engine Compartment Lid | |||||||
17 | PSTP0612 ? | 8 | 8 | 8 | 8 | Screw - Vent Grille to Lid | |||||||
17 | 036B6001 | 8 | 8 | 8 | 8 | Nut - Vent Grille to Lid | |||||||
17 | 054B6020 | 1 | 1 | Battery Clamp | |||||||||
18 | 036M6005 | 1 | 1 | Battery Clamp | |||||||||
18 | XUFB0532 | 1 | 1 | Bolt - Battery Clamping | |||||||||
18 | 115 | 1 | 1 | Washer - Battery Clamping | |||||||||
19 | 050B1207 | 1 | 1 | Angle - Battery Mounting | |||||||||
19 | 036B6033 | 2 | 2 | Rivet - Battery Mounting Angle to Body | |||||||||
20 | 054B6021 | 2 | 2 | Pad - Battery Seating | |||||||||
22 | 046B0272 | 1 | 1 | 1 | 1 | Grille - Front | |||||||
22 | 046B1073 | 1 | Grille - Rear | ||||||||||
22 | 046B1073 | 1 | Grille - Rear | Up to Chassis No. 0541 | |||||||||
22 | A046B1073 | 1 | Grille - Rear | From Chasis No. 0542 | |||||||||
23 | 054B1073 | 1 | 1 | Grille - Rear | |||||||||
23 | RSTS0808 | 8 | 8 | 8 | 8 | Screw - Grille to Body | |||||||
23 | 036B6002 | 8 | 8 | 8 | 8 | Nut - Grille to Body | |||||||
23 | A03W0806 | 8 | 8 | 8 | 8 | Washer - Grille to Body | |||||||
23 | 046B6046 | 2 | Oddie Fastener | ||||||||||
23 | 046B6044 | 2 | Mounting Plate - Oddie Fastener | ||||||||||
23 | 046B6045 | 2 | Clip - Oddie Fastener | ||||||||||
23 | 046B6047 | 2 | Washer - Oddie Fastener | ||||||||||
23 | 036B6033 | 6 | Rivet - Mounting Plate to Engine Compartment Lid | ||||||||||
24 | 046B6112 | 1 | 1 | 1 | Lock - Engine Compartment Lid | - More Info - | |||||||
25 | 046B1367 | 1 | 1 | 1 | Tab - Engine Compartment Lid Locking | ||||||||
26 | 046B1366 | 1 | 1 | 1 | Latch Plate - Engine Compartment Lid Locking | ||||||||
26 | PSTS0808 | 2 | 2 | 2 | Screw - Latch Plate to Body | ||||||||
26 | A0320806 | 2 | 2 | 2 | Washer - Latch Plate to Body | ||||||||
26 | 423 | 2 | 2 | 2 | Nut - Latch Plate to Body | ||||||||
27 | 036B0544 | 1 | 1 | Letter Plate L | - More Info - | ||||||||
27 | 036B0545 | 1 | 1 | Letter Plate O | - More Info - | ||||||||
27 | 036B0546 | 1 | 1 | Letter Plate T | - More Info - | ||||||||
27 | 036B0547 | 1 | 1 | Letter Plate U | - More Info - | ||||||||
27 | 036B0548 | 1 | 1 | Letter Plate S | - More Info - | ||||||||
27 | 036B6024 | 17 | 17 | Fixing Clip - Letter Plate | - More Info - | ||||||||
28 | 054B1512 | 1 | 1 | Europa Badge - English Speaking | |||||||||
28 | 046B1201 | 1 | 1 | Europa Badge - Continental | |||||||||
28 | 036B0501A | 1 | 1 | Badge Indianapolis | |||||||||
28 | 036B0501B | 1 | 1 | Badge - World Champions | |||||||||
28 | 036B0502 | 2 | 2 | Packing - Badge | |||||||||
28 | 046B6027 | 2 | 2 | Bezel | |||||||||
28 | 046B6028 | 6 | 6 | Clip | |||||||||
29 | 054B1425 | 1 | 1 | Badge S.2. | |||||||||
30 | A036B2073 | 1 | 1 | Badge - World Champions (1963,1965,1968,1970) | |||||||||
31 | A036B6341 | 1 | 1 | Bezel | |||||||||
31 | 443 | 3 | 3 | Clip - Bezel | |||||||||
32 | 054B1271 | 2 | 2 | Dust Shield - Front | |||||||||
33 | 054B1271 | 2 | 2 | Dust Shield - Rear | |||||||||
33 | 036B6033 | 24 | 24 | Rivet - Dust Shield Mounting | |||||||||
33 | A02W0603 | 48 | 48 | Washer - Dust Shield Mounting | |||||||||
33 | 054B0599 | 1 | 1 | Stud - Spare Wheel Clamping | SB - Service III 1970/3 | ||||||||
33 | 036D6000 | 1 | 1 | Nut - Spare Wheel Clamping | SB - Service III 1970/3 | ||||||||
33 | A054B1908 | Washer (As Required S2 - S2 Federal) | |||||||||||
33 | 026B0372 | 2 | 2 | Gromet |
