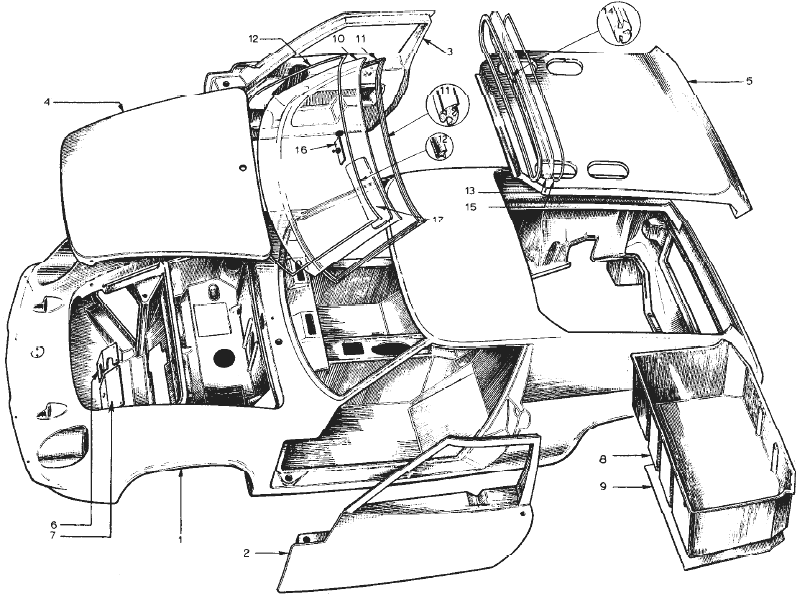

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BA -- Body -- Major Panels and TrimLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (465K) |
Notes Bulletin Reference | |||||||||||||
1 | 046B0001 | 1 | Body Shell | Up to 0541 | |||||||||
1 | 046B0001A | 1 | Body Shell | From 0541 to 0644 | |||||||||
1 | 054B0001 | 1 | Body Shell | ||||||||||
1 | 054B1800 | 1 | + | Body Shell (pre-24 in. headlamp centres) | Up to 2950 | ||||||||
1 | A054B1800 | 1 | + | Body Shell (24 in. headlamp centres) | From 0001P | ||||||||
1 | 054B1801 | 1 | + | Body Shell (pre-24 in. headlamp centres) | From 0645 to 2944 | ||||||||
1 | C054B1801 | 1 | + | Body Shell (24 in. headlamp centres) | From 0001Q | ||||||||
1 | A054B1801 | 1 | + | Body Shell (pre-24 in. headlamp centres) | From 1066 to 2061 | ||||||||
1 | D054B1801 | 1 | + | Body Shell (24 in. headlamp centres) | From 2607 to 2951 | ||||||||
1 | B054B1801 | 1 | + | Body Shell (24 in. headlamp centres - 65) | From Chassis No. 7001.03.0001R | ||||||||
2 | 046B0088 | 1 | 1 | Door Shell LH | |||||||||
2 | 054B0089 | 1 | Door Shell LH | ||||||||||
2 | A054B0089 | 1 | 1 | Door Shell LH | |||||||||
3 | 046B0089 | 1 | 1 | Door Shell RH | |||||||||
3 | 054B0088 | 1 | Door Shell RH | ||||||||||
3 | A054B0088 | 1 | 1 | Door Shell RH | |||||||||
4 | 046B0030 | 1 | Bonnet Lid | ||||||||||
4 | A046B0030 | 1 | 1 | 1 | Bonnet Lid | ||||||||
4 | 054B1829 | 1 | 1 | Reinforcing Strip | |||||||||
4 | 036B6033 | 6 | 6 | Rivet Reinforcing Strip Mounting | |||||||||
4 | 046B0040 | 1 | Engine Compartment Lid | ||||||||||
5 | A046B0040 | 1 | 1 | 1 | Engine Compartment Lid | ||||||||
5 | 054B0562 | 1 | 1 | Sealing - Front Stowage Compartment | |||||||||
6 | 054B1387 | 1 | Blanking Panel | ||||||||||
6 | A054B1387 | 1 | Blanking Panel | ||||||||||
7 | 054B1386 | 1 | 1 | Blanking Panel | |||||||||
7 | PSTS1008 | 10 | 10 | Screw - Blanking Panels to Body | |||||||||
7 | 036B6003 | 10 | 10 | Nut - Blanking Panels to Body | |||||||||
7 | 046B0059 | 1 | 1 | Luggage Box | |||||||||
8 | 054B0059 | 1 | 1 | Luggage Box | |||||||||
8 | 451A | 2 | 2 | 2 | 2 | Nut - Luggage Box to Chassis | |||||||
8 | PUFS1016 | 2 | 2 | 2 | 2 | Screw - Luggage Box to Chassis | |||||||
8 | A03W1606 | 2 | 2 | 2 | 2 | Washer - Luggage Box to Chassis | |||||||
9 | 046B2007 | 1 | 1 | 1 | 1 | Heat Shield | |||||||
9 | 046B2005 | 1 | 1 | 1 | 1 | Heat Shield | |||||||
9 | 435 | 4 | 4 | 4 | 4 | Rivet - Heat Shield to Luggage Box | |||||||
9 | AUFN030F | 4 | 4 | 4 | 4 | Nut - Heat Shield to Luggage Box | |||||||
9 | A03W0806 | 4 | 4 | 4 | 4 | Washer - Heat Shield to Luggage Box | |||||||
9 | 046B0241 | 1 | 1 | Cover - Battery | |||||||||
9 | MUFS1016 | 2 | 2 | Screw - Battery Cover | |||||||||
9 | 046B0029 | Replaced by 046B0029A | |||||||||||
10 | 046B0029A | 1 | 1 | 1 | 1 | Windscreen | |||||||
10 | 054B0029 | 1 | 1 | 1 | 1 | Windscreen - Shaded - Optional | |||||||
11 | 046B0549 | 1 | 1 | 1 | Weatherstrip - Windscreen | Up to Chassis No. ? - More Info - | |||||||
11 | 046B0549 | 1 | Weatherstrip - Windscreen | Up To Chassis No. 2951 - More Info - | |||||||||
11 | A050B6182 | 1 | Mastic Sealer | From Chassis No. 7001.03.0001R | |||||||||
11 | A050B6181 | 1 | Mastic Sealer | From Chassis No. 7001.03.0001R | |||||||||
11 | A054B6124 | 2 | Mounting Blocks | From Chassis No. 7001.03.0001R | |||||||||
12 | 046B6002 | 1 | 1 | 1 | Filler Strip (150 in.) | ||||||||
12 | 046B6002 | 1 | Filler Strip | Up to Chassis No. 2951 | |||||||||
12 | A054B6118 | 1 | Finisher - Top | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6119 | 1 | Finisher - Bottom | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6120 | 1 | Finisher - LH | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6126 | 1 | Finisher - RH | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6125 | 2 | Corner Clip - Top | From Chassis No. 7001.03.0001R | |||||||||
12 | A050B6183 ? | 2 | Corner Clip - Bottom | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6121 | 1 | Filler - Top Internal | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6122 | 1 | Filler - Bottom Internal | From Chassis No. 7001.03.0001R | |||||||||
12 | A054B6123 | 2 | Filler - Side Internal | From Chassis No. 7001.03.0001R | |||||||||
13 | 046B0349 | 1 | 1 | 1 | 1 | Rear Screen | |||||||
13 | B046B0349 | 1 | 1 | 1 | 1 | Rear Screen Shaded Optional | |||||||
13 | 046B6004 | Replaced by 054B1769 | |||||||||||
14 | 054B1769 | 1 | 1 | 1 | 1 | Weatherstrip - Rear Screen | - More Info - | ||||||
15 | 046B6003 | 1 | 1 | 1 | 1 | Filler Strip - Rear Screen | |||||||
15 | 046B6039 | Replaced by 036B6031 | |||||||||||
16 | 036B6031 | 1 | 1 | 1 | 1 | Internal Rear View Mirror | |||||||
16 | 036B6108 | 1 | 1 | Sunvisor | |||||||||
17 | 054B1720 | 2 | 2 | Sunvisor | |||||||||
8 | W0060 | 2 | 2 | 2 | 2 | Spacer - Luggage Box to Chassis |
