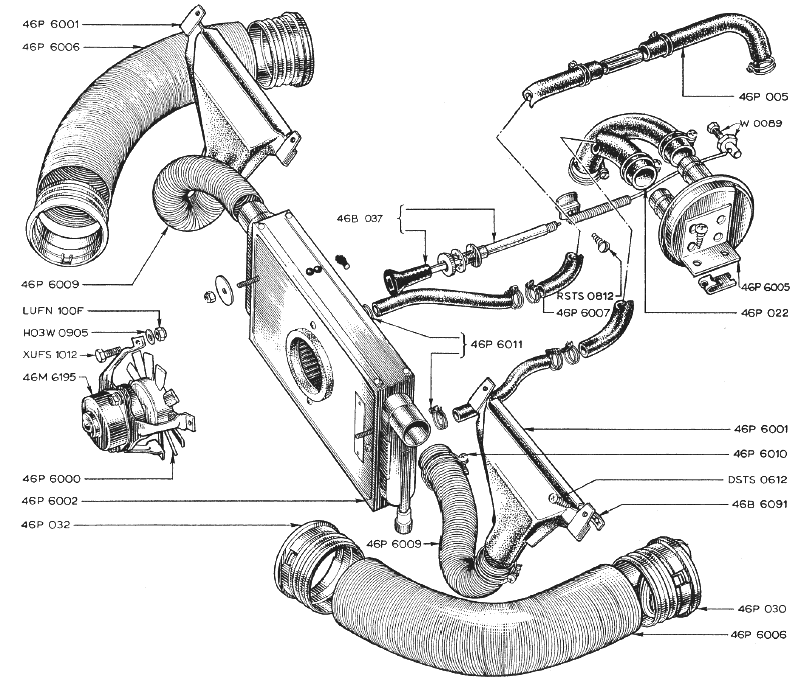

LOTUS EUROPA S1 PARTS MANUALSection P1 -- Heating and VentilationLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (150K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46P6006 | 46P6006 | 2 | 2 | Hose - Face Level Vent | - More Info - | ||||||||
| 46P6009 | 46P6009 | 2 | 2 | Hose - Heater to Demist Nozzle | Up to Chassis No. 1456 | ||||||||
| LUFN100F | LUFN100F | 3 | 3 | Nut - Heater Fan Mounting | |||||||||
| H03W0905 | H03W0905 | 3 | 3 | Washer - Heater Fan Mounting | |||||||||
| XUFS1012 | XUFS1012 | 3 | 3 | Bolt - Heater Fan Mounting | |||||||||
| 46M6195 | 46M6195 | 1 | 1 | Heater Motor | |||||||||
| 46P6000 | 46P6000 | 1 | 1 | Heater Fan Motor | |||||||||
| 46P6002 | 46P6002 | 1 | 1 | Heater Unit | |||||||||
| 46P032 | 46P032 | 2 | 2 | Tube - Face Level Vent Connection | |||||||||
| 46P005 | 46P005 | 1 | 1 | Hose - Heater Control Valve to Transfer | |||||||||
| W0089 | W0089 | 1 | 1 | Nipple - Heater Cable to Control Valve | |||||||||
| 46B037 | 46B037 | 1 | 1 | Heater Cable | |||||||||
| 46P6005 | 46P6005 | 1 | 1 | Heater Control Valve | - More Info - | ||||||||
| 46P022 | 46P022 | 2 | 2 | Hose | |||||||||
| RSTS0812 | RSTS0812 | 1 | 1 | Screw - Cable Clip - Heater Cable Fixing | |||||||||
| 46P6007 | 46P6007 | 1 | 1 | Cable Clip - Heater Cable Fixing | |||||||||
| 46P6011 | 46P6011 | 8 | 8 | Clip - Hose | |||||||||
| 46P6001 | 46P6001 | 2 | 2 | Demist Nozzle | |||||||||
| 46P6010 | 46P6010 | 4 | 4 | Clip - Demist Nozzle Hose | |||||||||
| DSTS0612 | DSTS0612 | 4 | 4 | Screw - Demist Nozzle | |||||||||
| 46P6091 | 46P6091 | 4 | 4 | Nut - Demist Nozzle | |||||||||
| 46P030 | 46P030 | 2 | 2 | Face Level Vent |
