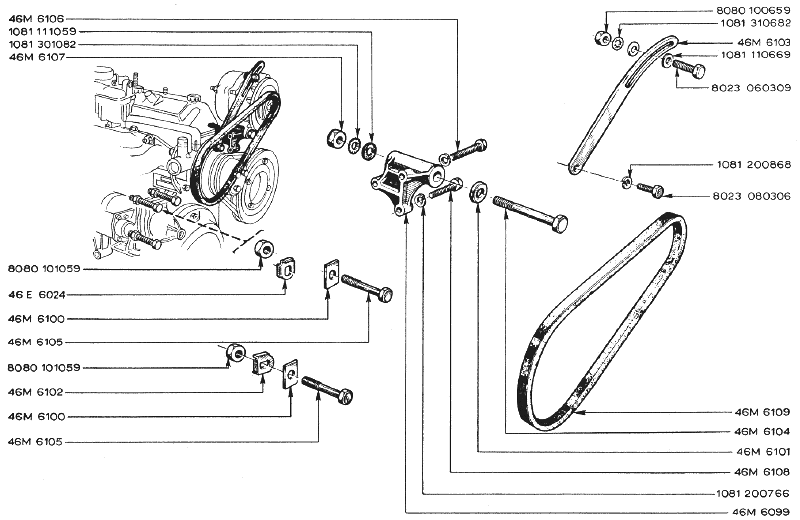

LOTUS EUROPA S1 PARTS MANUALSection M6 -- Electrical -- Alternator MountingLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (120K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46M6106 | 46M6106 | 2 | 2 | Bolt - Alternator Mounting Bracket | Up to Engine No - 0389 | ||||||||
| 1081111059 | 1081111059 | 1 | 1 | Washer - Alternator to Mounting Bracket | |||||||||
| 1081301082 | 1081301082 | 1 | 1 | Washer - Alternator to Mounting Bracket | |||||||||
| 46M6107 | 46M6107 | 1 | 1 | Nut Washer - Alternator to Mounting Bracket | |||||||||
| 8080101059 | 8080101059 | 4 | 4 | Nut - Starter to Engine Block | |||||||||
| 46E6024 | 46E6024 | 4 | 4 | Lock Plate - Starter to Engine Block | |||||||||
| 46M6100 | 46M6100 | 4 | 4 | Washer - Starter to Engine Block | |||||||||
| 46M6102 | 46M6102 | 4 | 4 | Lock Plate - Starter to Engine Block | |||||||||
| 46M6105 | 46M6105 | 4 | 4 | Bolt - Starter to Engine Block | |||||||||
| 8080100659 | 8080100659 | 1 | 1 | Nut - Link - Alternator Drive Belt Adjustment | |||||||||
| 1081310682 | 1081310682 | 1 | 1 | Washer - Link - Alternator Drive Belt Adjustment | |||||||||
| 46M6103 | 46M6103 | 1 | 1 | Link - Alternator Drive Belt Adjustment | |||||||||
| 1081110669 | 1081110669 | 2 | 2 | Washer - Link - Alternator Drive Belt Adjustment | |||||||||
| 1081200868 | 1081200868 | 1 | 1 | Washer - Link - Alternator Drive Belt Adjustment | |||||||||
| 8023080306 | 8023080306 | 1 | 1 | Washer - Link - Alternator Drive Belt Adjustment | |||||||||
| 46M6109 | 46M6109 | 1 | 1 | Drive Belt - Water Pump to Alternator | - More Info - | ||||||||
| 46M6104 | 46M6104 | 1 | 1 | Bolt - Alternator to Mounting Bracket | |||||||||
| 46M6101 | 46M6101 | 1 | 1 | Spacer-Washer - Alternator to Mounting Bracket | |||||||||
| 46M6108 | 46M6108 | 2 | 2 | Bolt - Alternator Mounting Bracket (697-04) | Up to Engine No - 0389 | ||||||||
| 1081200776 | 1081200776 | 2 | 2 | Washer - Alternator Mounting Bracket (697-04) | |||||||||
| 46M6099 | 46M6099 | 1 | 1 | Mounting Bracket - Alternator (697-04) Replaced by A046M6099 with 1 of A046M6106 & 2 of 046M6108 | Up to Engine No - 0389 | ||||||||
| 8023060309 | 8023060309 | 1 | 1 | Bolt - Link - Alternator Drive Belt Adjustment |
