LOTUS EUROPA S1 PARTS MANUAL

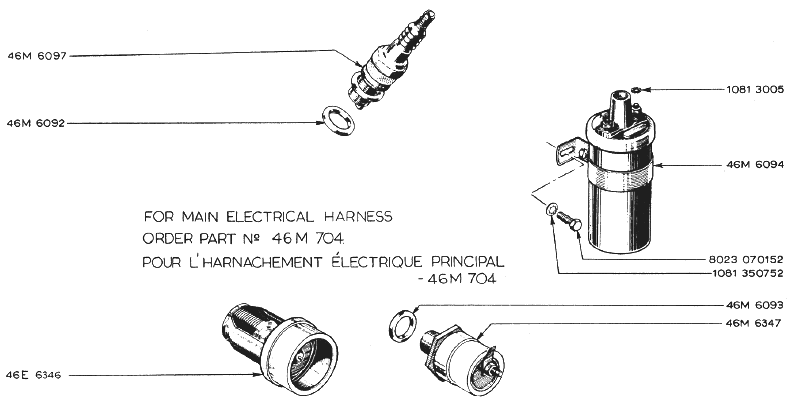

Section M4 -- Electrical -- Coil and Spark Plugs

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (80K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46M6097 46M6097        Spark Plug or 046M6096  - More Info -
46M6092 46M6092        Washer
46E6346 46E6346        Thermostat  - More Info -
10813005 10813005        Star Washer
46M6094 46M6094        Ignition Coil
8023070152 8023070152        Bolt - Ignition Coil Mounting
1081350752 1081350752        Washer - Ignition Coil Mounting
46M6093 46M6093        Washer
46M6347 46M6347        Water Temperature Transmitter (replaced by 046E6379)
