LOTUS EUROPA S1 PARTS MANUAL

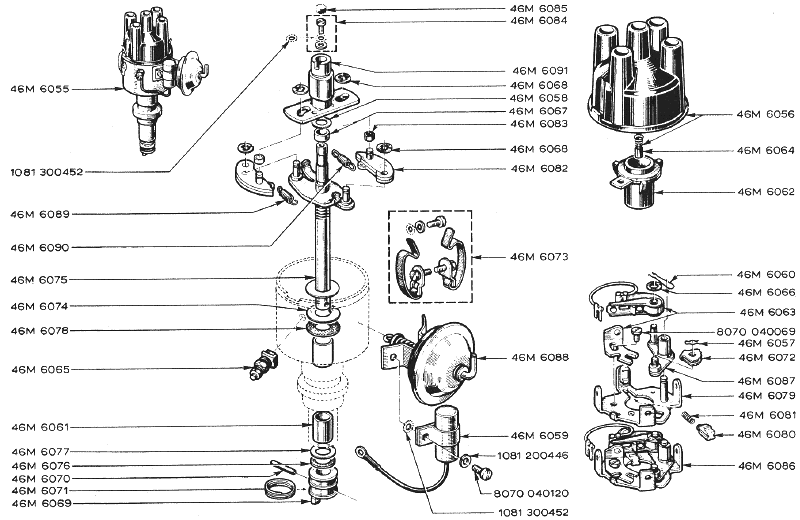

Section M3 -- Electrical -- Distributor

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (270K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46M6055 46M6055        Distributor (697-04)
1081300452 1081300452        Star Washer
46M6089 46M6089        Advance Spring
46M6090 46M6090        Advance Spring
46M6075 46M6075        Shaft
46M6074 46M6074        Washer
46M6078 46M6078        Washer
46M6065 46M6065        Contact Breaker Connection
46M6061 46M6061        Spacer
46M6077 46M6077        Washer
46M6076 46M6076        Washer
46M6070 46M6070        Tension Pin
46M6071 46M6071        Spring
46M6069 46M6069        Drive Pinion
46M6085 46M6085        Cap
46M6084 46M6084        Screw - Washer and Washer
46M6091 46M6091        Contact Breaker Cam
46M6068 46M6068        Circlip
46M6058 46M6058        Washer
46M6067 46M6067        Spacer
46M6083 46M6083        Spacer
46M6082 46M6082        Machanical Advance Weight
46M6073 46M6073        Clip - Cap Attaching
46M6088 46M6088        Vacuum Advance Unit
46M6059 46M6059        Condensor - Distributor
1081200446 1081200446        Washer
8070040120 8070040120        Screw
1081300452 1081300452        Star Washer
46M6056 46M6056        Distributor Cap
46M6064 46M6064        Brush - Distributor Cap
46M6062 46M6062        Rotor Arm - Distributor
46M6060 46M6060        Clip - Contact Breaker Retaining
46M6066 46M6066        Washer
8070040069 8070040069        Screw
46M6057 46M6057        Clip - Vacuum Advance Cam
46M6072 46M6072        Vacuum Advance Cam
46M6087 46M6087        Contact Breaker Cam
46M6079 46M6079        Contact Breaker Mounting
46M6081 46M6081        Spring
46M6080 46M6080        Vacuum Advance Follower
46M6086 46M6086        Contact Breaker Assembly
46M6063 46M6063        Contact Breaker Set (points)
