LOTUS EUROPA S1 PARTS MANUAL

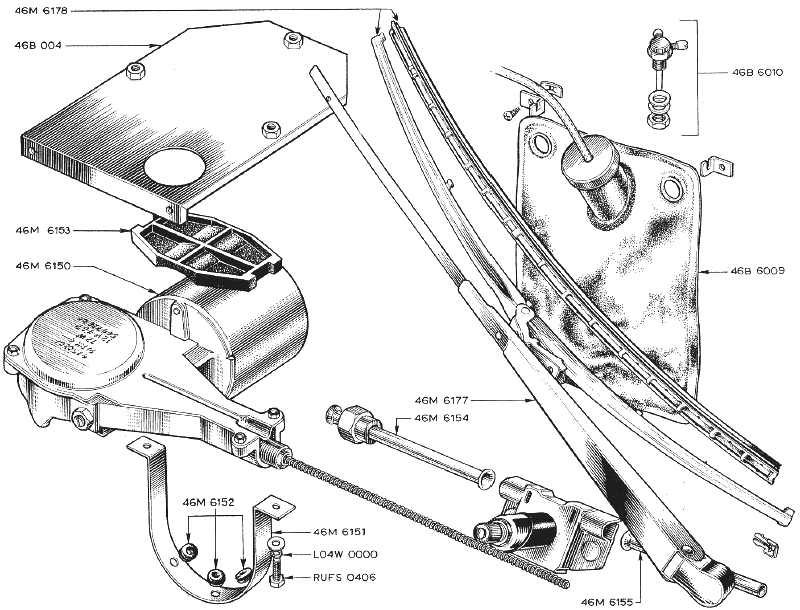

Section M12 -- Electrical -- Windscreen Wiper

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (155K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46M6178 46M6178        Wiper Blade
46M6153 46M6153        Mounting Block - Windscreen Wiper Motor
46M6150 46M6150        Windscreen Wiper Motor
46M6152 46M6152        Mounting Pad
46M6151 46M6151        Motor Mounting Clamp
L04W0000 L04W0000        Washer
RUFS0406 RUFS0406        Bolt
46B6010 46B6010        Jet - Washer (replaced by 046B6306)
46B6009 46B6009        Washer Bag
46M6155 46M6155        Bundy - Over-run
46M6177 46M6177        Wiper Arm
46M6154 46M6154        Bundy - Motor to Wheelbox
46B004 46B004        Mounting Bracket
