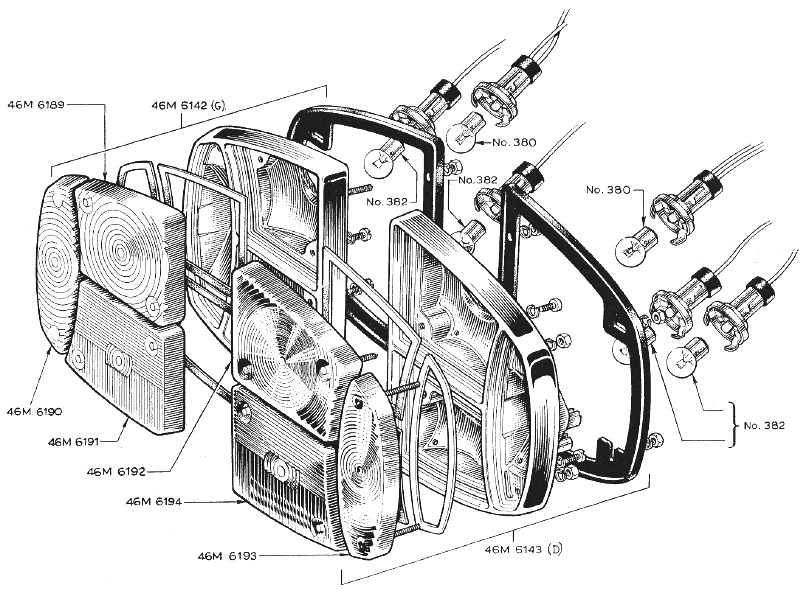

LOTUS EUROPA S1 PARTS MANUALSection M10 -- Electrical -- Taillight S1 and S1ALotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (150K) |
Notes Bulletin Reference | |||||||||||||
46M6189 | 46M6189 | 1 | 1 | Lens | Up to Chassis No. 0541 | ||||||||
46M6190 | 46M6190 | 1 | 1 | Lens - Indicator LH | Up to Chassis No. 0541 | ||||||||
46M6191 | 46M6191 | 1 | 1 | Lens | Up to Chassis No. 0541 | ||||||||
46M6192 | 46M6192 | 1 | 1 | Lens | Up to Chassis No. 0541 | ||||||||
46M6194 | 46M6194 | 1 | 1 | Lens | Up to Chassis No. 0541 | ||||||||
46M6193 | 46M6193 | 1 | 1 | Lens - Indicator RH | Up to Chassis No. 0541 Replaced by 46M6190 | ||||||||
46M6143 | 46M6143 | 1 | 1 | Rear Lamp Assembly RH | Up to Chassis No. 0541 - More Info - | ||||||||
46M6142 | 46M6142 | 1 | 1 | Rear Lamp Assembly LH | Up to Chassis No. 0541 - More Info - | ||||||||
No. 382 | No. 382 | 4 | 4 | Bulb (382) | - More Info - | ||||||||
No. 380 | No. 380 | 2 | 2 | Bulb (380) | - More Info - |
