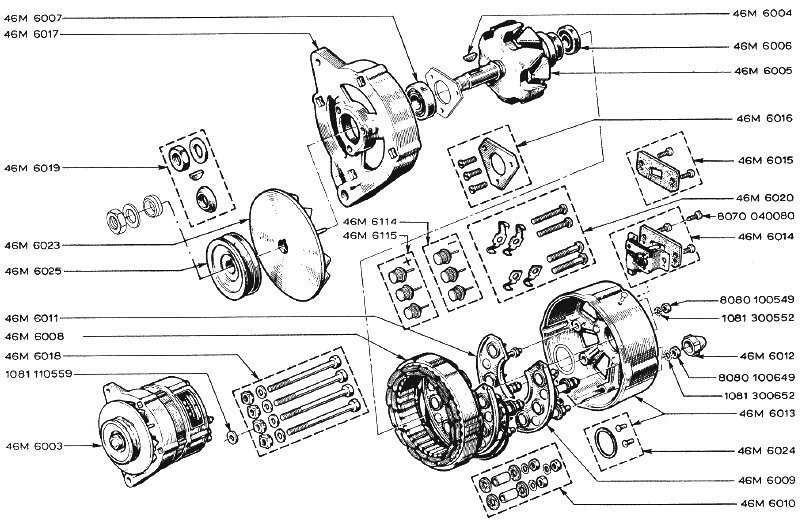

LOTUS EUROPA S1 PARTS MANUALSection M1 -- Electrical -- AlternatorLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (150K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46M6007 | 46M6007 | 1 | 1 | Bearing | |||||||||
| 46M6017 | 46M6017 | 1 | 1 | Front Housing | |||||||||
| 46M6019 | 46M6019 | 1 | 1 | Nut - Washer - Cup Washer and Woodruff Key | |||||||||
| 46M6023 | 46M6023 | 1 | 1 | Alternator Fan | |||||||||
| 46M6025 | 46M6025 | 1 | 1 | Pulley | |||||||||
| 46M6011 | 46M6011 | 1 | 1 | Rear Contact Plate | |||||||||
| 46M6008 | 46M6008 | 1 | 1 | Stator | |||||||||
| 46M6018 | 46M6018 | 4 | 4 | Bolt - Washer and Nut | |||||||||
| 1081110559 | 1081110559 | 1 | 1 | Washer | |||||||||
| 46M6003 | 46M6003 | 1 | 1 | Alternator Up to Engine No - 0389 | Replaced by 046M6003 (697-04) with 1 of 046E6489 - 1 of A046M6099 - 1 of A046M6106 & 1 of A046M6108 | ||||||||
| 46M6004 | 46M6004 | 1 | 1 | Woodruff Key | |||||||||
| 46M6006 | 46M6006 | 1 | 1 | Bearing | |||||||||
| 46M6005 | 46M6005 | 1 | 1 | Rotor | |||||||||
| 46M6016 | 46M6016 | 1 | 1 | Bearing Retaining Plate and Screws | |||||||||
| 46M6015 | 46M6015 | 1 | 1 | Contact Cover and Screws | |||||||||
| 46M6020 | 46M6020 | 1 | 1 | Contacts and Bolts | |||||||||
| 8070040080 | 8070040080 | 1 | 1 | Contact Plate Screws | |||||||||
| 46M6014 | 46M6014 | 1 | 1 | Contact Plate and Screws | |||||||||
| 8080100549 | 8080100549 | 1 | 1 | Nut | |||||||||
| 1081300552 | 1081300552 | 1 | 1 | Washer | |||||||||
| 46M6012 | 46M6012 | 1 | 1 | Connector Cover | |||||||||
| 8080100649 | 8080100649 | 1 | 1 | Nut | |||||||||
| 46M6013 | 46M6013 | 1 | 1 | Washer | |||||||||
| 46M6024 | 46M6024 | 1 | 1 | O Ring and Rivets | |||||||||
| 46M6009 | 46M6009 | 1 | 1 | Diode Holding Plate | |||||||||
| 46M6010 | 46M6010 | 1 | 1 | Nuts - Washers and Spacers | |||||||||
| 46M6114 | 46M6114 | 1 | 1 | Diodes (-) | |||||||||
| 46M6115 | 46M6115 | 1 | 1 | Diodes (+) | |||||||||
| 1081300652 | 1081300652 | 1 | 1 | Washer |
