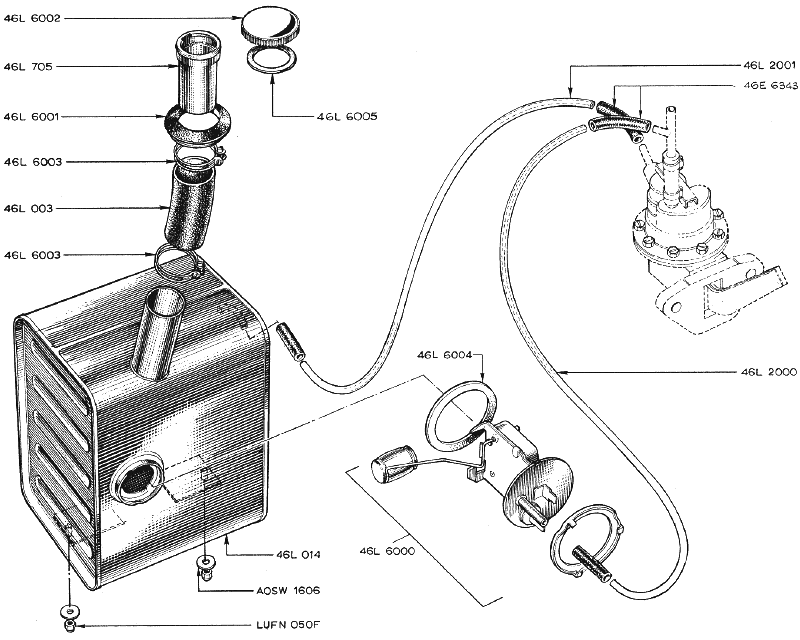

LOTUS EUROPA S1 PARTS MANUALSection L1 -- Fuel -- Fuel Tank and HosesLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (130K) |
Notes Bulletin Reference | |||||||||||||
46L6002 | 46L6002 | 1 | 1 | Fuel Filler Cap | - More Info - | ||||||||
46L705 | 46L705 | 1 | 1 | Filler Neck | |||||||||
46L6001 | 46L6001 | 1 | 1 | Gromet - Filler Neck | |||||||||
46L003 | 46L003 | 1 | 1 | Hose - Filler Neck to Tank | |||||||||
46L6003 | 46L6003 | 2 | 2 | Clip - Filler Neck Hose | |||||||||
46L014 | 46L014 | 1 | 1 | Fuel Tank | |||||||||
A0SW1606 | A0SW1606 | 2 | 2 | Washer - Fuel Tank Bottom to Body | |||||||||
LUFN050F | LUFN050F | 2 | 2 | Nut - Fuel Tank Bottom to Body | 5/16" x 24 TPI, 1/2" head | ||||||||
46L6004 | 46L6004 | 1 | 1 | Fuel Level Transmitter Gasket | - More Info - | ||||||||
46L6000 | 46L6000 | 1 | 1 | Fuel Level Transmitter | |||||||||
46L2001 | 46L2001 | 1 | 1 | Hose - Tank Supply Port to Pump Input | |||||||||
46E6343 | 46E6343 | 4 | 4 | Sleeve | |||||||||
46L2000 | 46L2000 | 1 | 1 | Hose - Pump Return to Fuel Level Transmitter | |||||||||
Partof46L6000 | Part of 46L6000 | Fuel Level Transmitter Clamp | - More Info - | ||||||||||
46L6005 | 46L6005 | Seal Ring - Fuel Filler Cap | - More Info - |
