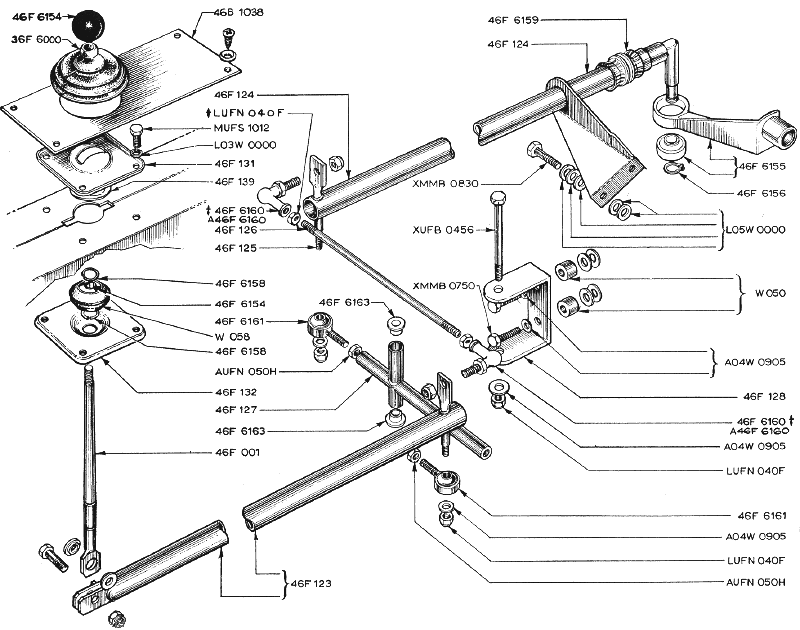

LOTUS EUROPA S1 PARTS MANUALSection F7 -- Transmission -- Shift LinkageLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (280K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46F6154 | 46F6154 | 1 | 1 | Shift Knob | |||||||||
| 36F6000 | 36F6000 | 1 | 1 | Gromet - Gear Lever | |||||||||
| 46B1038 | 46B1038 | 1 | 1 | Mounting Plate - Gear Lever Gromet | |||||||||
| 46F124 | 46F124 | 1 | 1 | Longitudinal Link - Rear | |||||||||
| LUFN040F | LUFN040F | 2 | 2 | Nut - Link Transverse | 5/16" x 24 TPI, 1/2" head | ||||||||
| MUFS1012 | MUFS1012 | 4 | 4 | Bolt - Mounting Plate Upper | |||||||||
| L03W0000 | L03W0000 | 4 | 4 | Washer - Mounting Plate Upper | |||||||||
| 46F131 | 46F131 | 1 | 1 | Mounting Plate Upper | |||||||||
| 46F139 | 46F139 | 2 | 2 | Spacer | |||||||||
| 46F6160 | 46F6160 | 2 | 2 | Ball joint - Transverse Link | Up to Chassis No. 0344 Replaced by A046F6160 | ||||||||
| A46F6160 | A46F6160 | 2 | 2 | Ball joint - Transverse Link | From Chassis No. 0345 | ||||||||
| 46F126 | 46F126 | 1 | 1 | Link - Transverse | |||||||||
| 46F125 | 46F125 | 2 | 2 | Mounting - Longitudinal Link to Ball Joint | |||||||||
| 46F6158 | 46F6158 | 2 | 2 | Snap Ring | |||||||||
| 46F6161 | 46F6161 | 4 | 4 | Ball Joint | Up to Chassis No. 2339 Replaced by A046F6161 | ||||||||
| W058 | W058 | 1 | 1 | Ball Joint Outer | |||||||||
| AUFN050H | AUFN050H | 2 | 2 | Nut - Relay Lever | |||||||||
| 46F132 | 46F132 | 1 | 1 | Mounting Plate Lower | |||||||||
| 46F127 | 46F127 | 1 | 1 | Relay Lever | |||||||||
| 46F6163 | 46F6163 | 2 | 2 | Bush - Relay Lever | |||||||||
| 46F001 | 46F001 | 1 | 1 | Gear Lever | |||||||||
| 46F123 | 46F123 | 1 | 1 | Longitudinal Link - Front | |||||||||
| 46F6159 | 46F6159 | 1 | 1 | Bush - Longitudinal Link | |||||||||
| XMMB0830 | XMMB0830 | 2 | 2 | Bolt - Longitudinal Link to Gearbox Mounting | |||||||||
| XUFB0456 | XUFB0456 | 1 | 1 | Bolt - Relay Lever to Bracket - Relay Lever Mounting | 3 1/2" long, 7/8" thread length, 1/4" x 28 TPI, 7/16" head | ||||||||
| XMMB0750 | XMMB0750 | 2 | 2 | Bolt - Bracket - Relay Lever Mounting to Enging | |||||||||
| 46F6155 | 46F6155 | 1 | 1 | Cross Shaft Lever and Rose Joint | |||||||||
| 46F6156 | 46F6156 | 1 | 1 | Circlip | |||||||||
| L05W0000 | L05W0000 | 10 | 10 | Washer - Longitudinal Link to Gearbox Mounting | 7/64" thick split washer, 19/32" OD, 5/16" ID | ||||||||
| W050 | W050 | 2 | 2 | Spacer | |||||||||
| A04W0905 | A04W0905 | 5 | 5 | Washer | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| 46F128 | 46F128 | 1 | 1 | Bracket - Relay Lever Mounting | |||||||||
| LUFN040F | LUFN040F | 3 | 3 | Nut | 5/16" x 24 TPI, 1/2" head |
