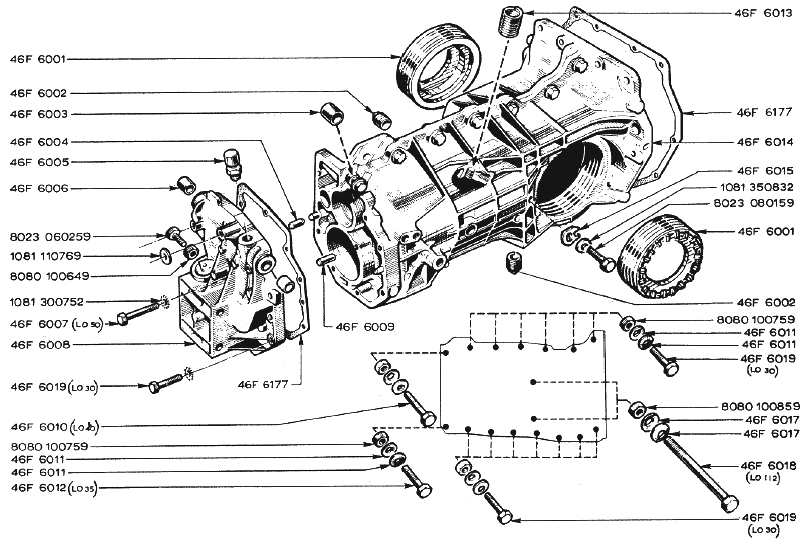

LOTUS EUROPA S1 PARTS MANUALSection F2 -- Transmission -- CasingLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (150K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46F6001 | 46F6001 | 2 | 2 | Nut - Bearing Retaining | |||||||||
| 46F6002 | 46F6002 | 2 | 2 | Plug - Oil Drain/Oil Level | |||||||||
| 46F6003 | 46F6003 | 2 | 2 | Spacer | |||||||||
| 46F6004 | 46F6004 | 2 | 2 | Dowel Pin | |||||||||
| 46F6005 | 46F6005 | 1 | 1 | Breather | |||||||||
| 46F6006 | 46F6006 | 2 | 2 | Bush (697-04) | |||||||||
| 8023060259 | 8023060259 | 1 | 1 | Bolt | |||||||||
| 1081110769 | 1081110769 | 1 | 1 | Washer | |||||||||
| 8080100649 | 8080100649 | 1 | 1 | Nut | |||||||||
| 1081300752 | 1081300752 | 8 | 8 | Washer | |||||||||
| 46F6007 | 46F6007 | 3 | 3 | Bolt 7 x 50 | |||||||||
| 46F6019 | 46F6019 | 2 | 2 | Bolt - Bearing Retaining Nut | |||||||||
| 46F6010 | 46F6010 | 2 | 2 | Bolt 7 x 40 | |||||||||
| 8080100759 | 8080100759 | 15 | 15 | Nut | |||||||||
| 46F6011 | 46F6011 | 30 | 30 | Washer | |||||||||
| 46F6012 | 46F6012 | 1 | 1 | Bolt | |||||||||
| 46F6013 | 46F6013 | 1 | 1 | Helicoil | |||||||||
| 46F6177 | 46F6177 | 1 | 1 | Transmission Gasket Set | |||||||||
| 46F6014 | 46F6014 | 1 | 1 | Gearbox Casing (697-04) | Replaced by 046F6014A | ||||||||
| 46F6015 | 46F6015 | 2 | 2 | Lock Tab - Bearing Retaining Nut | |||||||||
| 1081350832 | 1081350832 | 2 | 2 | Washer - Bearing Retaining Nut | |||||||||
| 8023080159 | 8023080159 | 2 | 2 | Bolt - Beatring Retaining Nut | |||||||||
| 8080100859 | 8080100859 | 2 | 2 | Nut | |||||||||
| 46F6017 | 46F6017 | 4 | 4 | Washer | |||||||||
| 46F6018 | 46F6018 | 2 | 2 | Bolt - 8 x 112 | |||||||||
| 46F6019 | 46F6019 | 13 | 13 | Bolt - 7 x 30 | |||||||||
| 46F6008 | 46F6008 | 13 | 13 | Rear Gearbox Casing |
