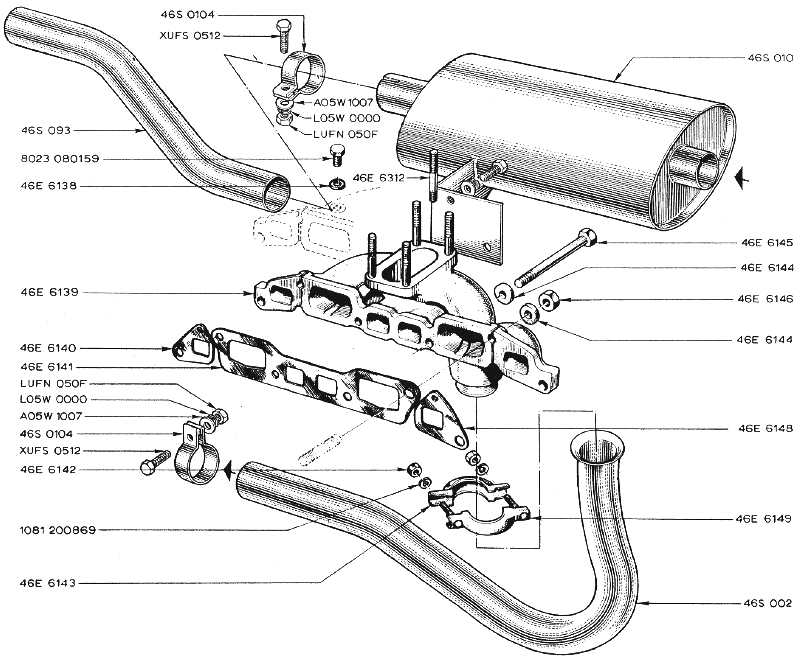

LOTUS EUROPA S1 PARTS MANUALSection E9 -- Engine -- Manifold and SilencerLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (140K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46S093 | 46S093 | 1 | 1 | Pipe - Silencer to Rear | Replaced by A046S0010 with 1 of A046S0002 | ||||||||
| 8023080159 | 8023080159 | 1 | 1 | Bolt - 8 x 14 | |||||||||
| 46E6138 | 46E6138 | 1 | 1 | Washer | |||||||||
| 46E6139 | 46E6139 | 1 | 1 | Manifold (697-04) | Up to Eng. No. 0501 | ||||||||
| 46E6140 | 46E6140 | 1 | 1 | Manifold Gasket - front (697-04) | |||||||||
| 46E6141 | 46E6141 | 1 | 1 | Manifold Gasket - centre (697-04) | |||||||||
| LUFN050F | LUFN050F | 2 | 2 | Nut - Silencer Clamp | 5/16" x 24 TPI, 1/2" head | ||||||||
| L05W0000 | L05W0000 | 2 | 2 | Washer - Silencer Clamp | 7/64" thick split washer, 19/32" OD, 5/16" ID | ||||||||
| 46S0104 | 46S0104 | 2 | 2 | Silencer Clamp - Nut side | |||||||||
| XUFS0512 | XUFS0512 | 2 | 2 | Bolt - Silencer Clamp | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head | ||||||||
| 46E6142 | 46E6142 | 2 | 2 | Nut - Silencer to Manifold Clamp | |||||||||
| 1081200869 | 1081200869 | 2 | 2 | Washer - Silencer to Manifold Clamp | |||||||||
| 46E6143 | 46E6143 | 1 | 1 | Silencer to Manifold Clamp | |||||||||
| 46E6312 | 46E6312 | 4 | 4 | Stud - Carburetter to Manifold (697-04) | |||||||||
| 46S010 | 46S010 | 1 | 1 | Silencer | |||||||||
| 46E6145 | 46E6145 | 2 | 2 | Bolt - (697-04) - Manifold to Cylinder Head | |||||||||
| 46E6144 | 46E6144 | 6 | 6 | Washer - (697-04) - Manifold to Cylinder Head | |||||||||
| 46E6146 | 46E6146 | 4 | 4 | Nut (697-04) | |||||||||
| 46E6148 | 46E6148 | 1 | 1 | Manifold Gasket - rear (697-04) | |||||||||
| 46E6149 | 46E6149 | 1 | 1 | Silencer Clamp - Bolt side | |||||||||
| 46S002 | 46S002 | 1 | 1 | Pipe - Exhaust Manifold to Silencer | |||||||||
| A05W1007 | A05W1007 | 2 | 2 | Washer - Silencer Clamp | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 46S0002 | 46S0002 | 1 | 1 | Pipe - Exhaust Manifold to Silencer |
