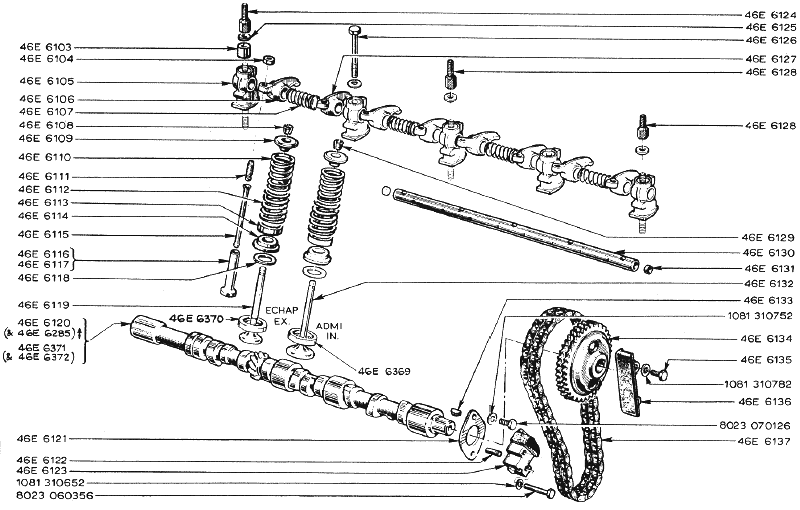

LOTUS EUROPA S1 PARTS MANUALSection E8 -- Engine -- Cam and ValvesLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (280K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6103 | 46E6103 | 2 | 2 | Bush | |||||||||
| 46E6104 | 46E6104 | 8 | 8 | Lock Nut - Tappet | |||||||||
| 46E6105 | 46E6105 | 5 | 5 | Pillar - rocker support | |||||||||
| 46E6106 | 46E6106 | 4 | 4 | Rocker Arm - exhaust | |||||||||
| 46E6107 | 46E6107 | 4 | 4 | Spring - Rocker Shaft | |||||||||
| 46E6108 | 46E6108 | 8 | 8 | Collette - exhaust valve | |||||||||
| 46E6109 | 46E6109 | 8 | 8 | Retainer - valve spring | |||||||||
| 46E6110 | 46E6110 | 8 | 8 | Valve spring - inner | |||||||||
| 46E6111 | 46E6111 | 8 | 8 | Tappet adjusting screw | |||||||||
| 46E6112 | 46E6112 | 8 | 8 | Valve spring - outer | |||||||||
| 46E6113 | 46E6113 | 8 | 8 | Spacer - valve spring | |||||||||
| 46E6114 | 46E6114 | 8 | 8 | Seat - valve spring | |||||||||
| 46E6115 | 46E6115 | 8 | 8 | Push Rod | |||||||||
| 46E6116 | 46E6116 | 8 | 8 | Tappet block 12.00 mm. | |||||||||
| 46E6117 | 46E6117 | 8 | 8 | Tappet block 12.20 mm. | |||||||||
| 46E6118 | 46E6118 | 8 | 8 | Washer - valve spring seat | |||||||||
| 46E6119 | 46E6119 | 4 | 4 | Valve - exhaust (697-04) | |||||||||
| 46E6120 | 46E6120 | 1 | 1 | Camshaft | |||||||||
| 46E6285 | 46E6285 | 1 | 1 | Oil Pump to Camshaft Gear | |||||||||
| 46E6371 | 46E6371 | 1 | 1 | Camshaft | |||||||||
| 46E6372 | 46E6372 | 1 | 1 | Oil Pump to Camshaft Gear | |||||||||
| 46E6121 | 46E6121 | 1 | 1 | Thrust washer | |||||||||
| 46E6122 | 46E6122 | 1 | 1 | Gauge | |||||||||
| 46E6123 | 46E6123 | 1 | 1 | Timing Chain Tightener | |||||||||
| 1081310652 | 1081310652 | 1 | 1 | Washer - Timing Chain Tightener | |||||||||
| 8023060356 | 8023060356 | 1 | 1 | Bolt - Timing Chain Tightener | |||||||||
| 46E6124 | 46E6124 | 1 | 1 | Stud - Rocker Cover Retaining | |||||||||
| 46E6125 | 46E6125 | 1 | 1 | Washer- Rocker support pillar | |||||||||
| 46E6126 | 46E6126 | 2 | 2 | Bolt - Rocker support pillar | |||||||||
| 46E6127 | 46E6127 | 4 | 4 | Rocker arm - inlet | |||||||||
| 46E6128 | 46E6128 | 2 | 2 | Stud - Rocker Cover Retaining | |||||||||
| 46E6129 | 46E6129 | 8 | 8 | Collette - inelt valve | |||||||||
| 46E6130 | 46E6130 | 1 | 1 | Rocker shaft | |||||||||
| 46E6131 | 46E6131 | 2 | 2 | Plug - rocker shaft | |||||||||
| 46E6132 | 46E6132 | 4 | 4 | Valve - Inlet (697-04) | |||||||||
| 46E6133 | 46E6133 | 1 | 1 | Woodruff key | |||||||||
| 1081310752 | 1081310752 | 1 | 1 | Washer - Thrust Washer Retaining | |||||||||
| 46E6134 | 46E6134 | 1 | 1 | Sprocket - camshaft | |||||||||
| 46E6135 | 46E6135 | 4 | 4 | Bolt - Chain guide to cylinder block | Up to Eng. No. 0033 | ||||||||
| 1081310782 | 1081310782 | 4 | 4 | Washer - Chain guide to cylinder block | Up to Eng. No. 0033 | ||||||||
| 46E6136 | 46E6136 | 2 | 2 | Chain Guide | Up to Eng. No. 0033 | ||||||||
| 46E6137 | 46E6137 | 1 | 1 | Timing chain | |||||||||
| 8023070126 | 8023070126 | 1 | 1 | Bolt - Thrust Washer to Block | |||||||||
| 46E6370 | 46E6370 | 4 | 4 | Exhaust Valve Seat | |||||||||
| 46E6369 | 46E6369 | 4 | 4 | Inlet Valve Seat |
