LOTUS EUROPA S1 PARTS MANUAL

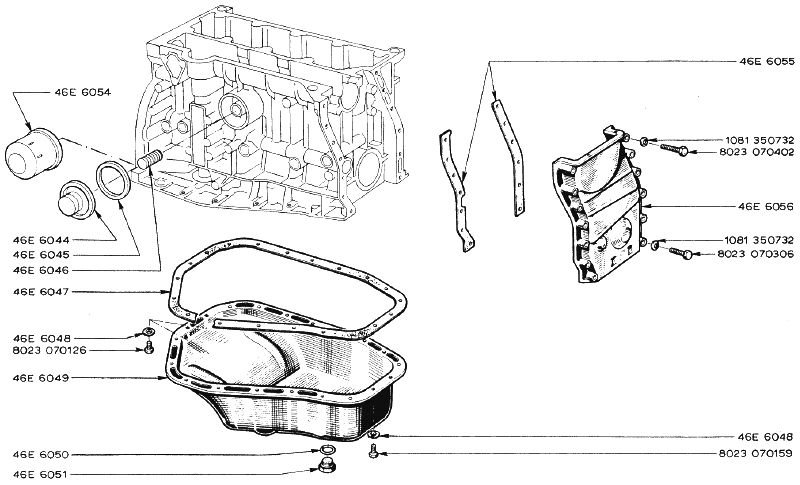

Section E5 -- Engine -- Oil Sump and Timing Cover

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (110K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46E6054 46E6054        Oil Filter Element  - More Info -
46E6044 46E6044        Adaptor
46E6045 46E6045        Gasket
46E6046 46E6046        Adaptor
46E6047 46E6047        Oil Sump Gasket
46E6048 46E604820 20         Lock Washer - Oil Sump to Cylinder Block
8023070126 802307012620 20         Bolt - Oil Sump to Cylinder Block
46E6049 46E6049        Oil Sump
46E6050 46E6050        Oil Sump Drain Plug Sealing Ring
46E6051 46E6051        Oil Sump Drain Plug
46E6055 46E6055        Timing Cover Gasket - (pair)
1081350732 108135073213 13         Washer - Timing Cover to Cylinder Block
8023070402 802307040210 10         Bolt - Timing Cover to Engine Block
46E6056 46E6056        Timing Cover (R9210)
8023070306 8023070306        Bolt - Timing Cover to Engine Block
8023070159 8023070159          Bolt - Oil Sump to Cylinder Block
