LOTUS EUROPA S1 PARTS MANUAL

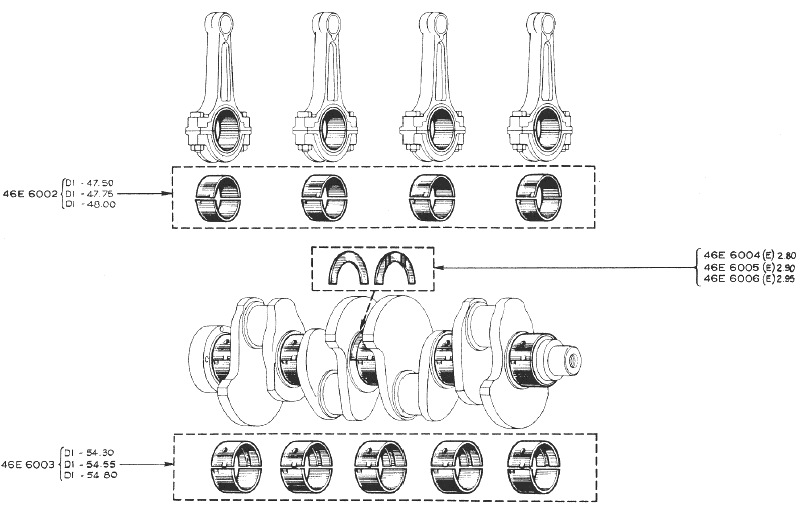

Section E3 -- Engine -- Bearings

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (90K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46E6002 46E6002        Conn. Rod Bearing Shell - (48 mm.) Standard
46E6003 46E6003        Main Bearing Set - 54.80 mm. (Standard)
46E6004 46E6004        Thrust Washer - 2.80 mm. - Optional
46E6005 46E6005        Thrust Washer - 2.90 mm. - Optional
46E6006 46E6006        Thrust Washer - 2.95 mm. - Optional
