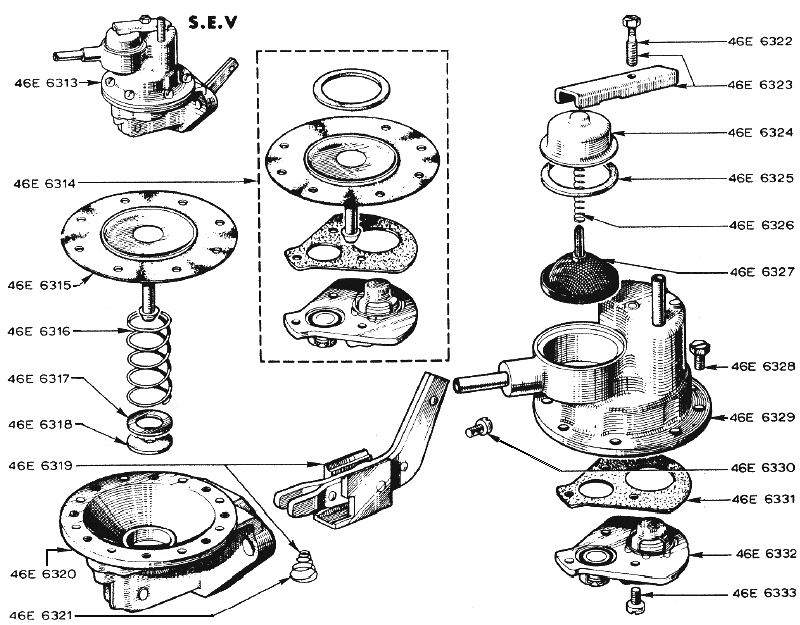

LOTUS EUROPA S1 PARTS MANUALSection E19 -- Engine -- Fuel PumpLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (130K) |
Notes Bulletin Reference | |||||||||||||
46E6313 | 46E6313 | 1 | 1 | Fuel Pump | |||||||||
46E6314 | 46E6314 | 1 | 1 | Fuel Pump Repair Kit (697-04) | |||||||||
46E6315 | 46E6315 | 1 | 1 | Diaphragm (697-04) | |||||||||
46E6316 | 46E6316 | 1 | 1 | Spring - diaphragm (697-04) | |||||||||
46E6317 | 46E6317 | 1 | 1 | Washer - diaphragm spring (697-04) | |||||||||
46E6318 | 46E6318 | 1 | 1 | Washer - diaphragm spring seat (697-04) | |||||||||
46E6319 | 46E6319 | 1 | 1 | Lever Assembly - with spring (697-04) | |||||||||
46E6320 | 46E6320 | 1 | 1 | Housing - lower (697-04) | |||||||||
46E6321 | 46E6321 | 1 | 1 | Spring - Lever Assembly | |||||||||
46E6322 | 46E6322 | 1 | 1 | Screw - filter cover | |||||||||
46E6323 | 46E6323 | 1 | 1 | Clamp - filter cover | |||||||||
46E6324 | 46E6324 | 1 | 1 | Cover | |||||||||
46E6325 | 46E6325 | 1 | 1 | Fuel Pump Gasket - filter bowl | |||||||||
46E6326 | 46E6326 | 1 | 1 | Spring - fuel filter | |||||||||
46E6327 | 46E6327 | 1 | 1 | Filter | |||||||||
46E6328 | 46E6328 | 8 | 8 | Screw - upper housing to lower housing | |||||||||
46E6329 | 46E6329 | 1 | 1 | Housing - upper (697-04) | |||||||||
46E6330 | 46E6330 | 1 | 1 | Screw - lever to housing | |||||||||
46E6331 | 46E6331 | 1 | 1 | Fuel Pump Gasket - housing to valve assembly | |||||||||
46E6332 | 46E6332 | 1 | 1 | Valve Assembly | |||||||||
46E6333 | 46E6333 | 2 | 2 | Screw - Valve Assembly to Upper Housing |
