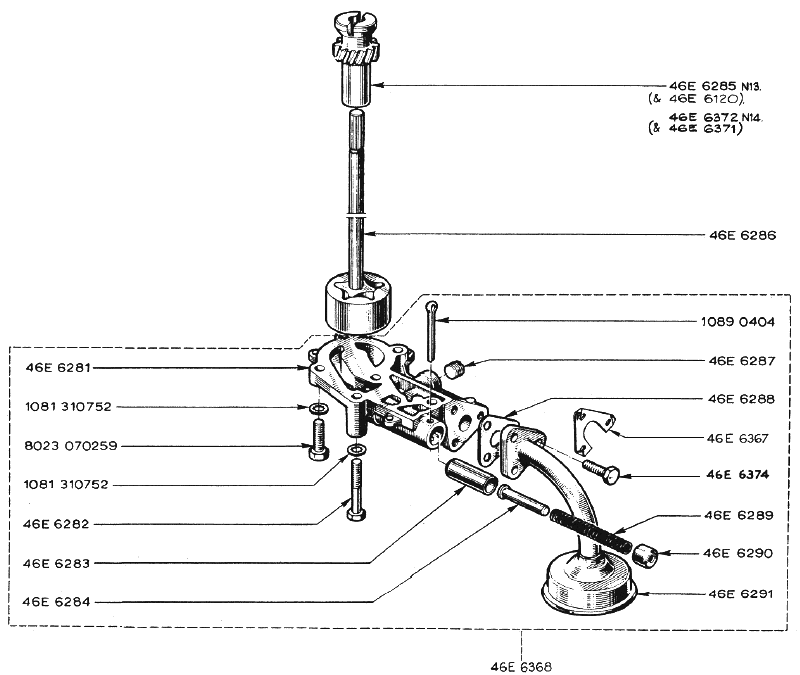

LOTUS EUROPA S1 PARTS MANUALSection E16 -- Engine -- Oil PumpLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (130K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6281 | 46E6281 | 1 | 1 | Body - oil pump | |||||||||
| 1081310752 | 1081310752 | 2 | 2 | Washer - Oil Pump Body to Cylinder Block | |||||||||
| 8023070259 | 8023070259 | 2 | 2 | Bolt - Oil Pump Body to Cylinder Block | |||||||||
| 46E6282 | 46E6282 | 2 | 2 | Bolt - Oil Pump Body to Cylinder Block | |||||||||
| 46E6283 | 46E6283 | 1 | 1 | Oil pressure relief valve sleeve | |||||||||
| 46E6284 | 46E6284 | 1 | 1 | Oil pressure relief valve | |||||||||
| 46E6285 | 46E6285 | 1 | 1 | Oil Pump to Camshaft Gear | |||||||||
| 46E6120 | 46E6120 | 1 | 1 | Camshaft | |||||||||
| 46E6372 | 46E6372 | 1 | 1 | Oil Pump to Camshaft Gear | |||||||||
| 46E6371 | 46E6371 | 1 | 1 | Camshaft | |||||||||
| 46E6286 | 46E6286 | 1 | 1 | Oil pump rotor and shaft | - More Info - | ||||||||
| 10890404 | 10890404 | 1 | 1 | Split Pin - Releif Valve Retaining | |||||||||
| 46E6287 | 46E6287 | 1 | 1 | Plug | |||||||||
| 46E6288 | 46E6288 | 1 | 1 | Joint - filter to body | |||||||||
| 46E6367 | 46E6367 | 1 | 1 | Lock tab - Filter to pump body | |||||||||
| 46E6374 | 46E6374 | 1 | 1 | Bolt - Filter to pump body | |||||||||
| 46E6289 | 46E6289 | 1 | 1 | Oil pressure relief spring | |||||||||
| 46E6290 | 46E6290 | 1 | 1 | Oil Pressure Releif Cap | |||||||||
| 46E6291 | 46E6291 | 1 | 1 | Filter | |||||||||
| 46E6368 | 46E6368 | 1 | 1 | Oil Pump Body Assembly |
