LOTUS EUROPA S1 PARTS MANUAL

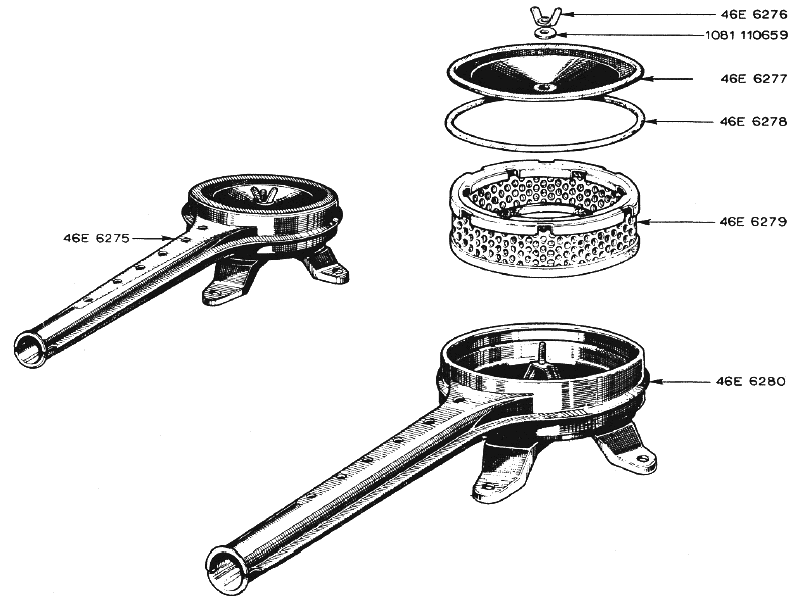

Section E15 -- Engine -- Air Cleaner

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (100K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46E6275 46E6275        Air Filter Assembly (697-04)
46E6276 46E6276        Wingnut - Air Filter Cover to Body
1081110659 1081110659        Washer - Air Filter Cover to Body
46E6277 46E6277        Cover - Air filter with seal ring (697-04)
46E6278 46E6278        Seal ring
46E6279 46E6279        Air filter element  - More Info -
46E6280 46E6280        Air Filter Body
