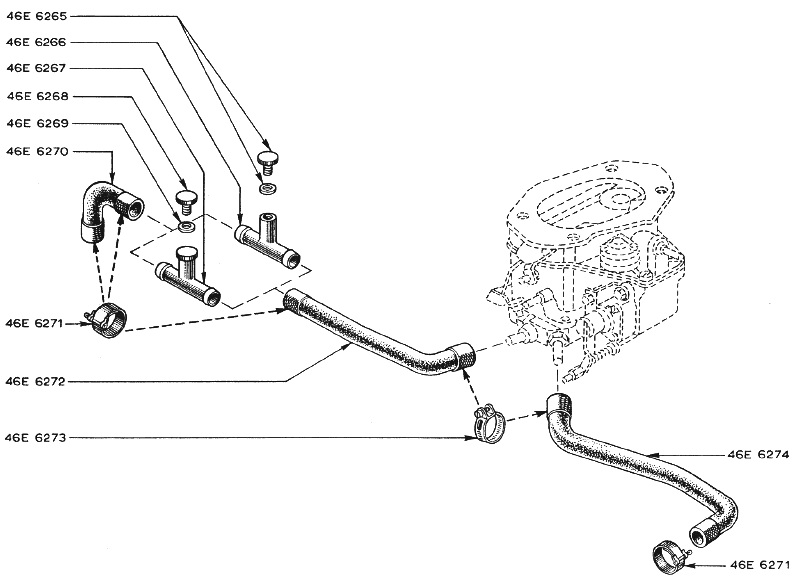

LOTUS EUROPA S1 PARTS MANUALSection E14 -- Engine -- Carburettor HosesLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (90K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6265 | 46E6265 | 1 | 1 | Screw Cap and Washer - Bleed Valve | |||||||||
| 46E6266 | 46E6266 | 1 | 1 | Bleed Valve | |||||||||
| 46E6267 | 46E6267 | 1 | 1 | Bleed Valve | |||||||||
| 46E6268 | 46E6268 | 1 | 1 | Screw Cap - Bleed Valve | |||||||||
| 46E6269 | 46E6269 | 1 | 1 | Washer - Bleed Valve | |||||||||
| 46E6270 | 46E6270 | 1 | 1 | Hose | |||||||||
| 46E6271 | 46E6271 | 4 | 4 | Clip | |||||||||
| 46E6272 | 46E6272 | 1 | 1 | Hose (697-04) | |||||||||
| 46E6274 | 46E6274 | 1 | 1 | Hose (697-04) | |||||||||
| 46E6273 | 46E6273 | 1 | 1 | Hose Clip |
