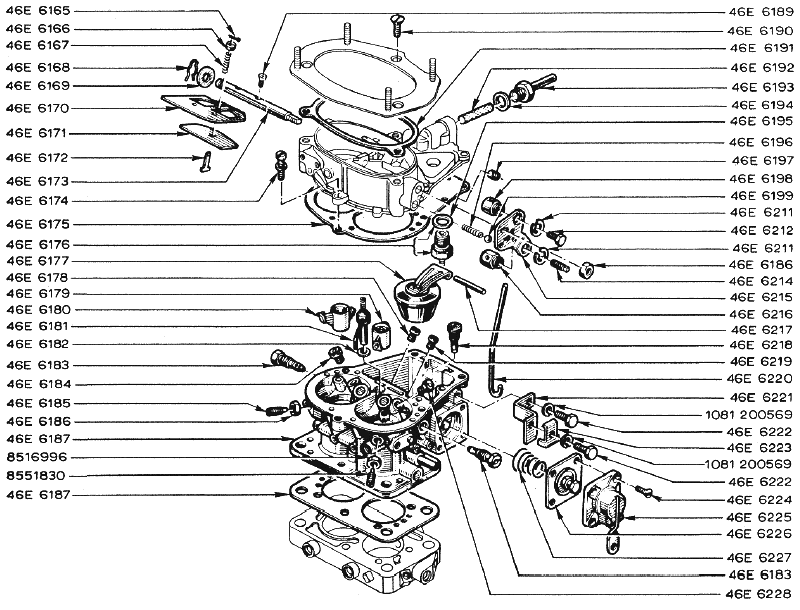

LOTUS EUROPA S1 PARTS MANUALSection E12 -- Engine -- Carburettor InteriorLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (320K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6165 | 46E6165 | 1 | 1 | Split Pin - Choke By-pass Flap | |||||||||
| 46E6166 | 46E6166 | 1 | Nut - Choke By-pass Flap | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 46E6167 | 46E6167 | 1 | Spring - Choke By-pass Flap | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 46E6168 | 46E6168 | 1 | 1 | Retaining Clip - Choke Shaft | |||||||||
| 46E6169 | 46E6169 | 1 | 1 | Washer - Choke Shaft | |||||||||
| 46E6170 | 46E6170 | 1 | 1 | Flap - Choke | |||||||||
| 46E6171 | 46E6171 | 1 | Flap - Choke By-pass | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 46E6172 | 46E6172 | 1 | Shaft - Choke By-pass | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 46E6173 | 46E6173 | 1 | 1 | Shaft - Choke | |||||||||
| 46E6174 | 46E6174 | 2 | 2 | Screw - Vacuum Control to Cover | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 46E6175 | 46E6175 | 1 | Carburetter Gasket - Cover | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 46E6176 | 46E6176 | 1 | 1 | Needle valve - 1.7 mm. | |||||||||
| 46E6177 | 46E6177 | 1 | 1 | Float - 7.3 gr. | |||||||||
| 46E6178 | 46E6178 | 1 | 1 | Jet - 140 (697-04) | |||||||||
| 46E6179 | 46E6179 | 1 | 1 | Emulsion block - 2.8 (697-04) | |||||||||
| 46E6180 | 46E6180 | 1 | 1 | Emulsion block - 3.2 | |||||||||
| 46E6181 | 46E6181 | 1 | 1 | Injection Tube - 40 | |||||||||
| 46E6182 | 46E6182 | 1 | 1 | Carburetter Gasket - Injection tube | |||||||||
| 46E6183 | 46E6183 | 2 | 2 | Idle Jet - 50 (697-04) | Up To Eng. No. 0391 | ||||||||
| 46E6184 | 46E6184 | 1 | 1 | Jet - 150 (697-04) | |||||||||
| 46E6185 | 46E6185 | 2 | 2 | Retaining Screw - Emulsion block | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 46E6186 | 46E6186 | 2 | 2 | Lock Nut - Emulsion block | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 46E6187 | 46E6187 | 1 | 1 | Carburetter Gasket - Main body to throttle block | |||||||||
| 8516996 | 8516996 | ||||||||||||
| 8551830 | 8551830 | ||||||||||||
| 46E6189 | 46E6189 | 1 | 1 | Screw - Flap to shaft | |||||||||
| 46E6190 | 46E6190 | 1 | 1 | Screw - Air Filter to Carburetter | |||||||||
| 46E6191 | 46E6191 | 1 | 1 | Carburetter Gasket - Mounting Plate | |||||||||
| 46E6192 | 46E6192 | 1 | 1 | Gauze - fuel inlet | |||||||||
| 46E6193 | 46E6193 | 1 | 1 | Connector - fuel inlet (697-04) | |||||||||
| 46E6194 | 46E6194 | 1 | 1 | Washer - fuel inlet (697-04) | |||||||||
| 46E6195 | 46E6195 | 1 | 1 | Washer - needle valve | |||||||||
| 46E6196 | 46E6196 | 1 | 1 | Pressure Spring - Choke lever ball | |||||||||
| 46E6197 | 46E6197 | 1 | 1 | Jet - 80 | |||||||||
| 46E6198 | 46E6198 | 1 | 1 | Mounting Bush - Link to lever | |||||||||
| 46E6199 | 46E6199 | 1 | 1 | Ball - Choke control lever | |||||||||
| 46E6211 | 46E6211 | 2 | 2 | Circlip | |||||||||
| 46E6212 | 46E6212 | 1 | 1 | Clamping Screw - Choke operating link | |||||||||
| 46E6214 | 46E6214 | 1 | 1 | Clamping screw - Choke cable to bush | |||||||||
| 46E6215 | 46E6215 | 1 | 1 | Lever - Choke Control | |||||||||
| 46E6216 | 46E6216 | 1 | 1 | Mounting Bush - Choke cable | |||||||||
| 46E6217 | 46E6217 | 1 | 1 | Shaft - (For float) | |||||||||
| 46E6218 | 46E6218 | 1 | 1 | Jet | |||||||||
| 46E6219 | 46E6219 | 1 | 1 | Jet - 145 (697-04) | |||||||||
| 46E6220 | 46E6220 | 1 | 1 | Link - Choke operating | |||||||||
| 46E6221 | 46E6221 | 1 | 1 | Bracket - Choke cable | |||||||||
| 1081200569 | 1081200569 | 2 | 2 | Washer - Choke cable mounting bracket | |||||||||
| 46E6222 | 46E6222 | 2 | 2 | Bolt - Choke cable mounting bracket | |||||||||
| 46E6223 | 46E6223 | 1 | 1 | Bracket - Choke cable | |||||||||
| 46E6224 | 46E6224 | 1 | 1 | Screw - Accelerator pump cover | |||||||||
| 46E6225 | 46E6225 | 1 | 1 | Cover - Accelerator pump | |||||||||
| 46E6226 | 46E6226 | 1 | 1 | Diaphragm - Accelerator pump | |||||||||
| 46E6227 | 46E6227 | 1 | 1 | Spring - Accelerator pump | |||||||||
| 46E6228 | 46E6228 | 1 | 1 | Jet - 135 (697-04) |
