LOTUS EUROPA S1 PARTS MANUAL

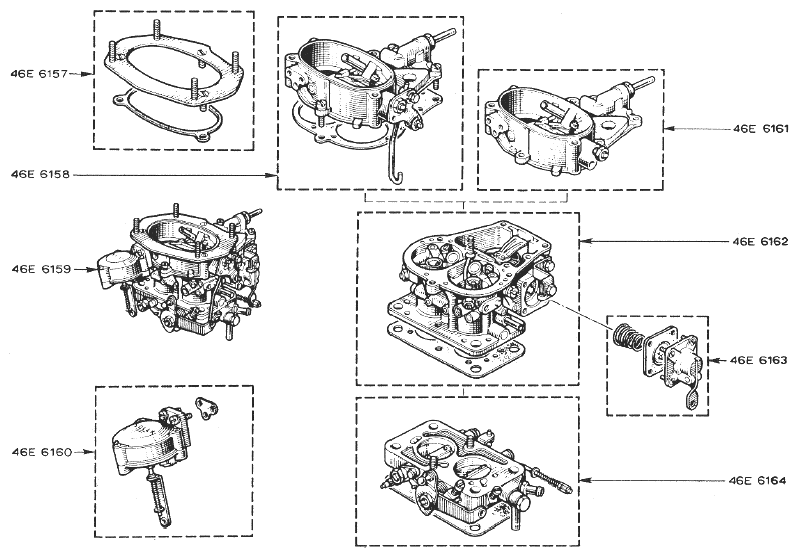

Section E11 -- Engine -- Carburettor Exterior

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (120K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
46E6157 46E6157        Mounting plate
46E6158 46E6158        Cover Assembly:- Carburettor - without choke control lever
46E6159 46E6159        Carburettor - 383 - replaced by 046E6464
46E6160 46E6160        Vacuum unit - (697-04)
46E6161 46E6161        Cover Assembly:- Carburettor - with choke control lever
46E6162 46E6162         Body - carburettor Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249
46E6163 46E6163        Pump - accelerator
46E6164 46E6164         Throttle block - carburettor or 046E6476 Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249
