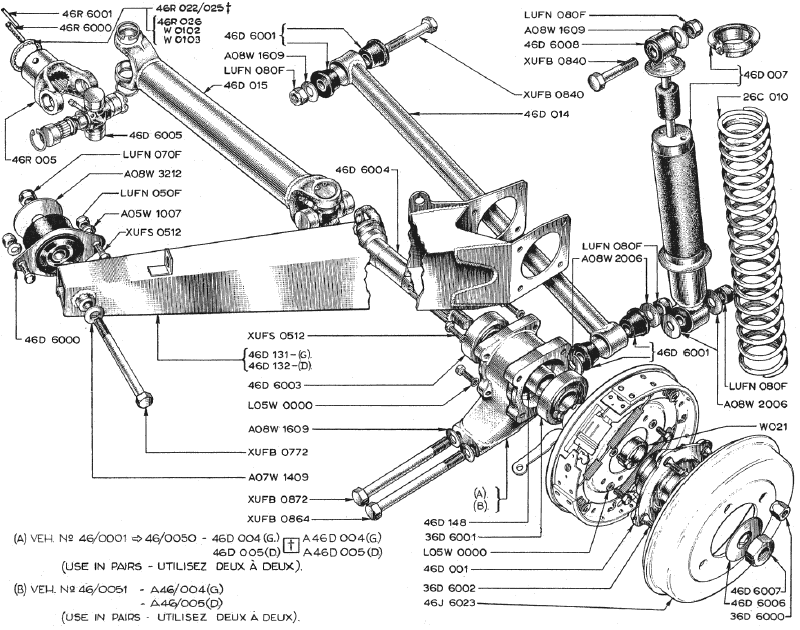

LOTUS EUROPA S1 PARTS MANUALSection D1 -- Suspension -- RearLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (530K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46R6001 | 46R6001 | 2 | 2 | Tension Pin - Inner - Drive Shaft to Final Drive | |||||||||
| 46R6000 | 46R6000 | 2 | 2 | Tension Pin - Outer - Dive Shaft to Gearbox | |||||||||
| 46R026 | 46R026 | Spacer Ring (3rd Oversize) (As Required) | |||||||||||
| W0102 | W0102 | Shim 0.005 ins. (All - As Required) | |||||||||||
| W0103 | W0103 | Shim 0.015 ins. (All - As Required) | |||||||||||
| 46R005 | 46R005 | 4 | 4 | Yoke - Inboard Drive Shaft | |||||||||
| 46D6005 | 46D6005 | 4 | 4 | Universal joint | - More Info - | ||||||||
| LUFN070F | LUFN070F | 2 | 2 | Nut - Nyloc or Stover - Resilient Mounting to Radius Arm | 7/16" x 20 TPI, 11/16" head | ||||||||
| A08W3212 | A08W3212 | 2 | 2 | Washer - Resilient Mounting to Radius Arm | |||||||||
| LUFN050F | LUFN050F | 4 | 4 | Nut - Resilient Mounting to Chassis | 5/16" x 24 TPI, 1/2" head | ||||||||
| A05W1007 | A05W1007 | 4 | 4 | Washer - Resilient Mounting to Chassis | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| XUFS0512 | XUFS0512 | 4 | 4 | Bolt - Resilient Mounting to Chassis | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head | ||||||||
| 046D6000 | 046D6000 | 2 | 2 | Resilient Mounting (Metalastic) | |||||||||
| XUFS0512 | XUFS0512 | 8 | 8 | Bolt - Radius Arm to Wheel Bearing Housing | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head | ||||||||
| 46D131-(G) | 46D131-(G) | 1 | 1 | Radius Arm LH | |||||||||
| 46D132-(D) | 46D132-(D) | 1 | 1 | Radius Arm RH | |||||||||
| 46D6003 | 46D6003 | 2 | 2 | Wheel Bearing - Rear Inner | - More Info - | ||||||||
| L05W0000 | L05W0000 | 8 | 8 | Washer - Radius Arm to Wheel Bearing Housing | 7/64" thick split washer, 19/32" OD, 5/16" ID | ||||||||
| A08W1609 | A08W1609 | 4 | 4 | Washer - Wheel Bearing Housing to Lower Link | 1/16" thick, 1" OD, 1/2" ID | ||||||||
| XUFB0772 | XUFB0772 | 2 | 2 | Bolt - Radius Arm to Resisient Mounting | |||||||||
| A07W1409 | A07W1409 | 2 | 2 | Washer - Radius Arm to Resisient Mounting | |||||||||
| XUFB0872 | XUFB0872 | 2 | 2 | Bolt - Wheel Bearing Housing to Lower Link | Length 4 1/2", thread length 1 1/4", 1/2" x 20 TPI, head 3/4" | ||||||||
| XUFB0864 | XUFB0864 | 2 | 2 | Bolt - Wheel Bearing Housing to Damper | Length 4", thread length 1 3/8", 1/2" x 20 TPI, head 3/4" | ||||||||
| 046D004(G) | 046D004(G) | 1 | Rear Wheel Bearing Housing LH | Up to Chassis No. 0050 | |||||||||
| 046D005(D) | 046D005(D) | 1 | Rear Wheel Bearing Housing RH | Up to Chassis No. 0050 | |||||||||
| A046D004(G) | A046D004(G) | 1 | 1 | Rear Wheel Bearing Housing LH | From Chassis No. 0051 | ||||||||
| A046D005(D) | A046D005(D) | 1 | 1 | Rear Wheel Bearing Housing RH | From Chassis No. 0051 | ||||||||
| 46D6001 | 46D6001 | 8 | 8 | Bush - Lower Link | 29/32" long - More Info - | ||||||||
| A08W1609 | A08W1609 | 2 | 2 | Washer - Lower Link to Lower Link bracket | 1/16" thick, 1" OD, 1/2" ID | ||||||||
| LUFN080F | LUFN080F | 2 | 2 | Nut - Nyloc or Stover - Lower Link to Lower Link bracket | 1/2" x 20 TPI, 3/4" head | ||||||||
| 46D015 | 46D015 | 2 | 2 | Intermediate Drive Shaft | |||||||||
| 46D6004 | 46D6004 | 2 | 2 | Outboard Drive Shaft (Rear Stub Axle) | - More Info - | ||||||||
| LUFN080F | LUFN080F | 2 | 2 | Nut - Nyloc or Stover - Damper to Cross Beam | 1/2" x 20 TPI, 3/4" head | ||||||||
| A08W1609 | A08W1609 | 2 | 2 | Washer - Damper to Cross Beam | 1/16" thick, 1" OD, 1/2" ID | ||||||||
| XUFB0840 | XUFB0840 | 2 | 2 | Bolt - Damper to Cross Beam | 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | ||||||||
| XUFB0840 | XUFB0840 | 2 | 2 | Bolt - Lower Link to Lower Link Mount | 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | ||||||||
| 46D014 | 46D014 | 2 | 2 | Lower Link | |||||||||
| 46D007 | 46D007 | 2 | 2 | Rear Damper | |||||||||
| 26C010 | 26C010 | 2 | 2 | Road Spring - Rear | - More Info - | ||||||||
| LUFN080F | LUFN080F | 2 | 2 | Nut - Nyloc or Stover - Wheel Bearing Housing to Damper | 1/2" x 20 TPI, 3/4" head | ||||||||
| LUFN080F | LUFN080F | 2 | 2 | Nut - Nyloc or Stover - Wheel Bearing Housing to Lower Link | 1/2" x 20 TPI, 3/4" head | ||||||||
| A08W2006 | A08W2006 | 4 | 4 | Washer - Wheel Bearing Housing to Damper | 1/16" thick, 1 1/2" OD, 1/2" ID | ||||||||
| A08W2006 | A08W2006 | 4 | 4 | Washer - Wheel Bearing Housing to Lower Link | 1/16" thick, 1 1/2" OD, 1/2" ID | ||||||||
| 46D148 | 46D148 | 2 | 2 | Spacer - Wheel Bearing to Wheel Bearing | - More Info - | ||||||||
| 36D6001 | 36D6001 | 2 | 2 | Wheel Bearing - Rear Outer | - More Info - | ||||||||
| L05W0000 | L05W0000 | 8 | 8 | Washer - Brake Backing Plate to Wheel Bearing Housing | 7/64" thick split washer, 19/32" OD, 5/16" ID | ||||||||
| 46D001 | 46D001 | 2 | 2 | Rear Hub | |||||||||
| 36D6002 | 36D6002 | 8 | 8 | Wheel Stud | Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455" - More Info - | ||||||||
| 46J6023 | 46J6023 | 2 | 2 | Brake Drum - Rear | |||||||||
| W021 | W021 | 2 | 2 | Spacer - Hub to Wheel Bearing | |||||||||
| 46D6007 | 46D6007 | 2 | 2 | Hub Retaining Nut | |||||||||
| 46D6006 | 46D6006 | 2 | 2 | Lock Washer | |||||||||
| 36D6000 | 36D6000 | 4 | 4 | Wheel Nut | Thread: 3/8-24 | ||||||||
| 46R022 | 46R022 | Spacer Ring (0.405 ins. Undersize) (As Required) | |||||||||||
| 46R023 | 46R023 | Spacer Ring (0.410 ins. Undersize) (As Required) | |||||||||||
| 46R024 | 46R024 | Spacer Ring (1st Oversize) (As Required) | |||||||||||
| 46R025 | 46R025 | Spacer Ring (2nd Oversize 0.420 ins) (As Required) | |||||||||||
| L05W0000 | L05W0000 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | Washer - Split - Radius Arm to Wheel Bearing Housing | 7/64" thick split washer, 19/32" OD, 5/16" ID | ||
| XUFS0512 | XUFS0512 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | Bolt - Backing Plate to Wheel Bearing Housing | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head |
